Antwerpen 05 November 2015 |
|
Name |

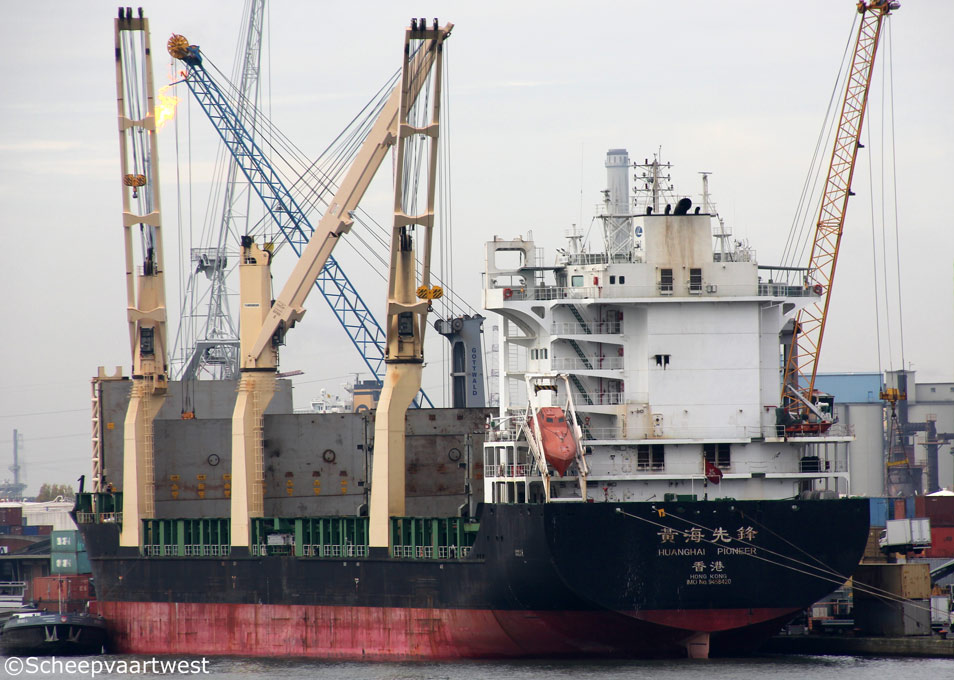

HUANGHAI PIONEER |
|
Type |
General cargo ship - Equipped for carriage of containers |
|
IMO-number |
9458420 |
|
Call sign |
VRKY5 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
20.682 t |
|
DWT |
Summer: 28.309 t |
|
NT |
10.263 t |
|
Number of 20ft containers |
1.669 |
|
Length |
166,31 m overall 158,32 m between perpendiculars |
|
Breadth |
27,40 m |
|
Draught |
10,10 m |
|
Freeboard |
4.126 mm |
|
Depth |
14,20 m |
|
Speed |
15,2 knots |
|
Built |
2012 |
|
Date of completion |
30.06.2012 |
|
Builder |
Huanghai Shipbuilding Co.,Ltd. |
|
Yard number |
HCY-88 |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/STX 6S40ME-B9 - 2 stroke 6 cylinder 400 x 1.770 mm diesel engine 6.810 kW / 9.253 hp at 146,0 rpm Built: 06.02.2011 Builder: STX Heavy Industries Co., Ltd., Changwon - South Korea |
|
Propellers |
1x Screw propeller solid |
|
Boilers |
1x CHM Zhangjiagang Hairun 282,00 m² - 7,0 bar |
|
Generators |
3x Main diesel generatorsets each 750 kVA - 600 kW - 897 hp |
|
Emergency generator |
1x Diesel generatorset 150 kVA - 120 kW - 245 hp |
|
Number of holds |
4 |
|
Total capacity of holds |
39.102,03 m³ |
|
Tank capacities |
Fuel oil: 1.646,22 m³ |
|
Cargo gear |
3x Cranes - SWL 80,0 t each |
|
Manager |
Tianjin Xinhai International Ship Management Co., Ltd. |
|
Owner |
Huanghai (Hong Kong) Xiang An Shipping Co., Ltd. |
|
Latest data adjustment |
03 April 2016 |
