Westerschelde 31 July 2015 |
 |
| Westerschelde 31/07/15 |
|
Name |

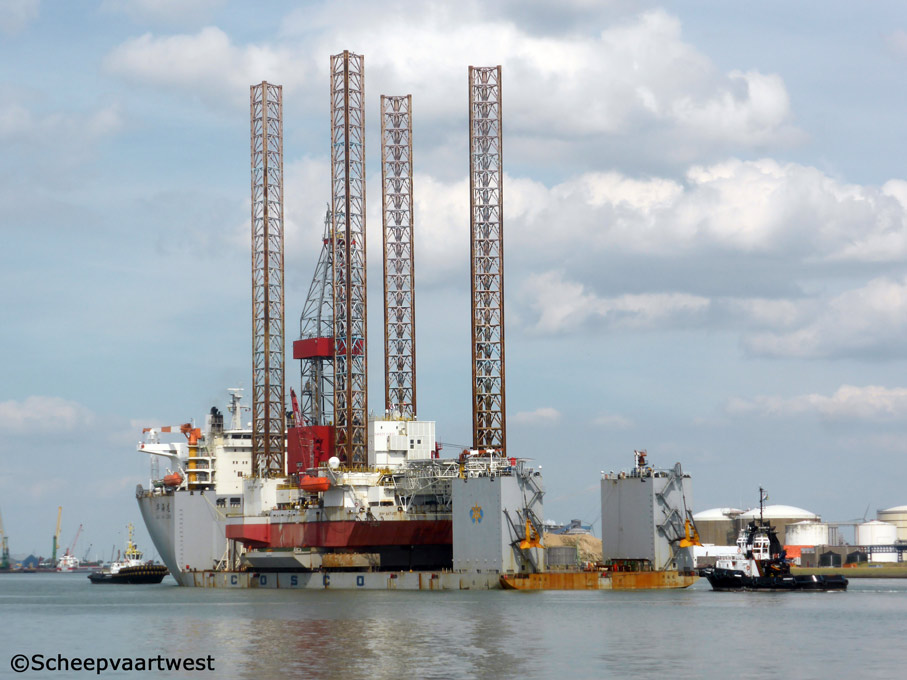

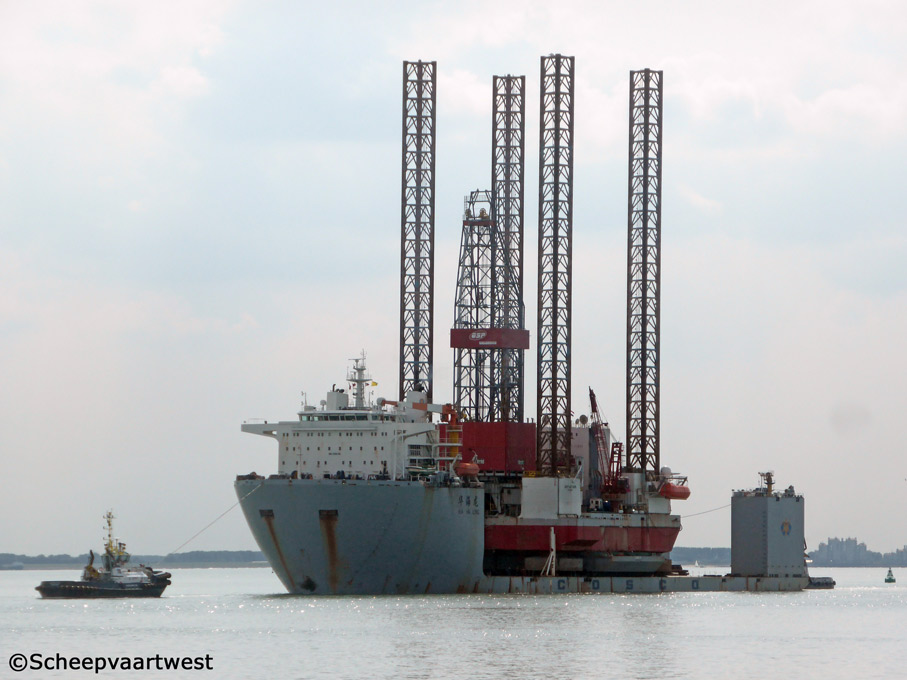

HUA HAI LONG |
|
Type |
Semi-submersible heavy lift vessel |
|
IMO-number |
9560144 |
|
Call sign |
BSNK |
|
Flag |
China |
|
Port of registry |
Guangzhou |
|
GT |
31.726 t |
|
DWT |
Summer: 30.002 t |
|
NT |
9.517 t |
|
Length |
181,90 m overall 170,40 m between perpendiculars |
|
Breadth |
43,60 m moulded |
|
Draught |
7,50 m loaded |
|
Forecastle |
36,80 m |
|
Bridge |
21,60 m |
|
Freeboard |
3.228 mm |
|
Depth |
11,00 m moulder |
|
Speed |
11,5 knots |
|
Built |
2012 |
|
Keel laid |
28.12.2009 |
|
Date of completion |
09.01.2012 |
|
Builder |
China Merchants Heavy Industry Co. Ltd. |
|
Yard number |
CMHI-068 |
|
Hull material |
Steel |
|
Bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
3x Bergens-Rolls-Royce Marine 4 stroke 9 cylinder diesel engine - total 13.500 kW coupled with 3 generators 4.500 kW each driving 2 electric motors |
|
Propellers |
2x Fixed pitch propellers |
|
Boilers |
Built: 19.04.2010 Builder: Jiangyin Sanjie Industry Co., Ltd. |
|
Generators |
3x DIG 156p/8W diesel generatorsets 4.500 kW 1x HFJ7 564-64E diesel generatorsets 960 kVA |
|
Bow thruster |
1x 2.000 kW, forward 1x 2.500 kW, aft |
|
Cargo deck |
144,00 x 43,60 m |
|
Max. permitted loads |
20 t/m² |
|
Ballast pumps |
4x 3.200 m³/h |
|
Number of ballast tanks |
55 including top tanks, double bottom tanks, centre tanks and side tanks enabling the vessel to better control motions and accelerations |
|
Tank capacities |
Ballast: 74.977 m³ |
|
Lifting equipment |
2x Cranes - SWL 3,0 t 1x Crane - SWL 1,5 t |
|
Accommodation |
20 persons in addition to crew |
|
Manager |
Guangzhou Salvage Bureau |
|
Operator |
Guangzhou Salvage |
|
Owner |
Guangzhou Salvage |
|
Latest data adjustment |
07 September 2015 |
