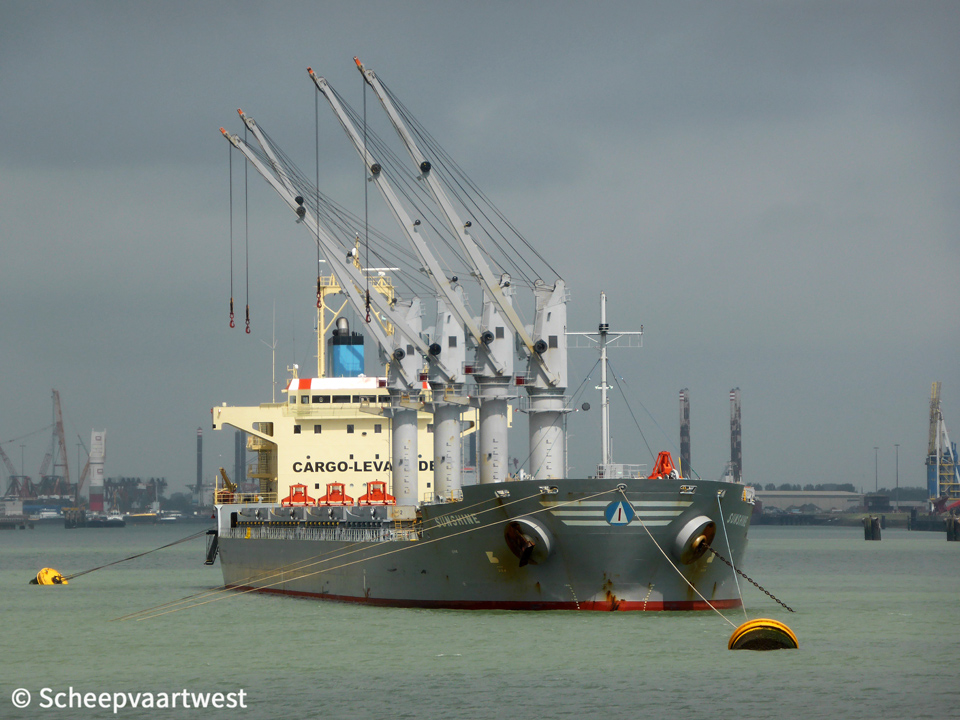

Sunshine 02

Vlissingen 21 June 2015

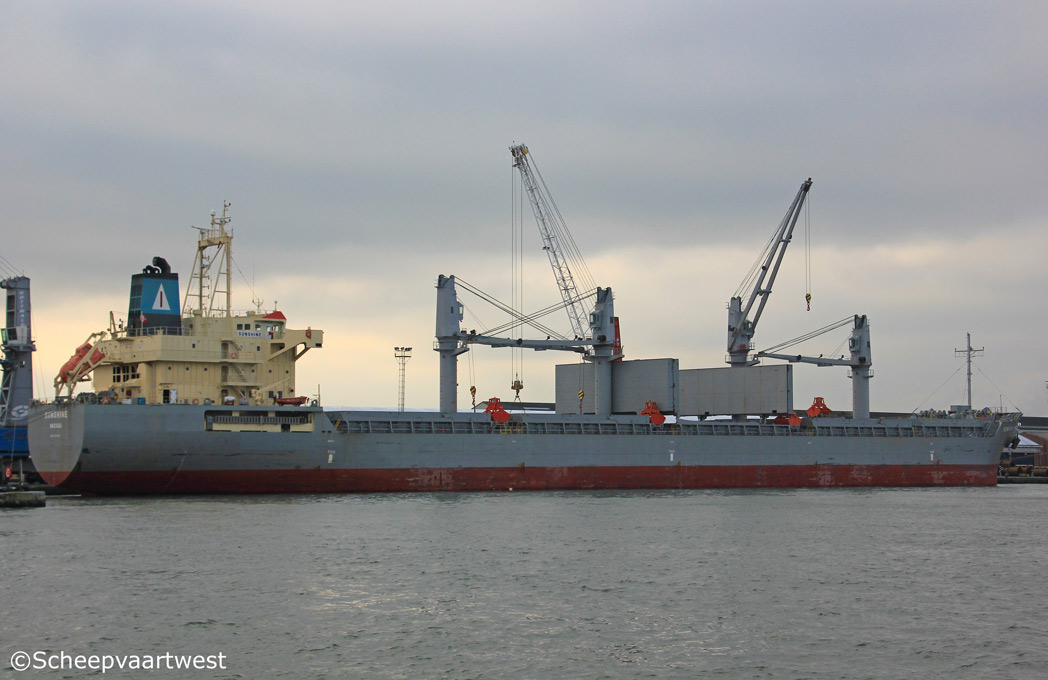

Sunshine 01
Antwerpen 14/12/15









Name

SUNSHINE

Type

Bulk carrier - Carriage of dangerous goods

Super handy box type

IMO-number

9393632

Call sign

C6XO9

Flag

Commonwealth of the Bahamas

Port of registry

Nassau

GT

22.697 t registered

Suez: 23.071,98 t

DWT

Summer: 37.317 t

NT

12.674 t registered

Panama: 18.913 t

Suez: 20.999,08 t

Displacement

45.382 t

Length

177,84 m overall

169,80 m between perpendiculars

Breadth

28,60 m moulded

Draught

10,85 m full load

Freeboard

4.190 mm

Depth

15,00 m

Speed

14,5 knots

Built

2009

Keel laid

31/10/2008

Launch date

25/12/2008

Delivery date

19/02/2009

Builder

Saiki Heavy Industries Co., Ltd. (Saiki Jukogyo K.K.)

5-37 Tsuruya-Machi 2-Chome Saiki City Oita 876

Saiki City, 876

Japan

Yard number

1175

Hull material

High strength steel

Ordinary strength steel

Bulkheads

Non tight: 8

Water tight : 48

Oil thigh: 7

Main engine

1x Akasaka-Mitsubishi 6UEC52LA - 6 cylinder 520 x 1.600 mm combustion engine 7.080 kW at 133,0 rpm

Manufacturer: Akasaka Diesel Co., Ltd.

Propellers

1x Fixed pitch solid keyless propeller

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Auxiliary vertical composite boiler - 6,9 bar

1x Fired exhaust gas boiler

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

3x Yanmar 6N18(AL)-DV main diesel generatorsets each 440 kW / 562,5 kVA

Manufacturer: Nishishiba Electric Co., Ltd.

Number of holds

5

Cargo hold capacity

Bale: 45.706,85 m³

Grain: 46.030,12 m³

Number of tanks

Ballast: 14

Lubricating oil: 11

Fuel oil: 9

Fresh water: 6

Diesel oil: 5

Sludge: 4

Chain: 2

Waste water: 2

Tank capacities

Diesel Oil: 315,36 m³ / 283,82 t

Freshwater: 233,68 m³

Fuel Oil: 1.450,89 m³ / 1.435,72 t

Lube Oil: 92,22 m³ / 83,00 t

Tank Ballast: 14.299,32 m³ / 14.656,80 t

Lifting equipment

1x Engine room overhead crane - SWL 2,6 t

Manufacture: Futaba Mfg. Co., Ltd.

1x Provision crane - SWL 1,5 t

Manufacture: Mansei Inc.

Cargo gear

4x Deck cranes - SWL 30,0 t each

Grabs: 4x Electro hydraulic - 8,0 m³ each

Manufacture: Mitsubishi Heavy Industries Ltd.

Manager

Samos Steamship Company

63, Poseidonos Ave. & 2 Aiantos Str

P.Faliro, 175 62

Greece

Operator

Cargo-Levant Schifffahrtsgesellschaft mbH

Bremen

Germany

Registered owner

Jonquil International Company

Nassau

Bahamas

Latest data adjustment

25 May 2020
