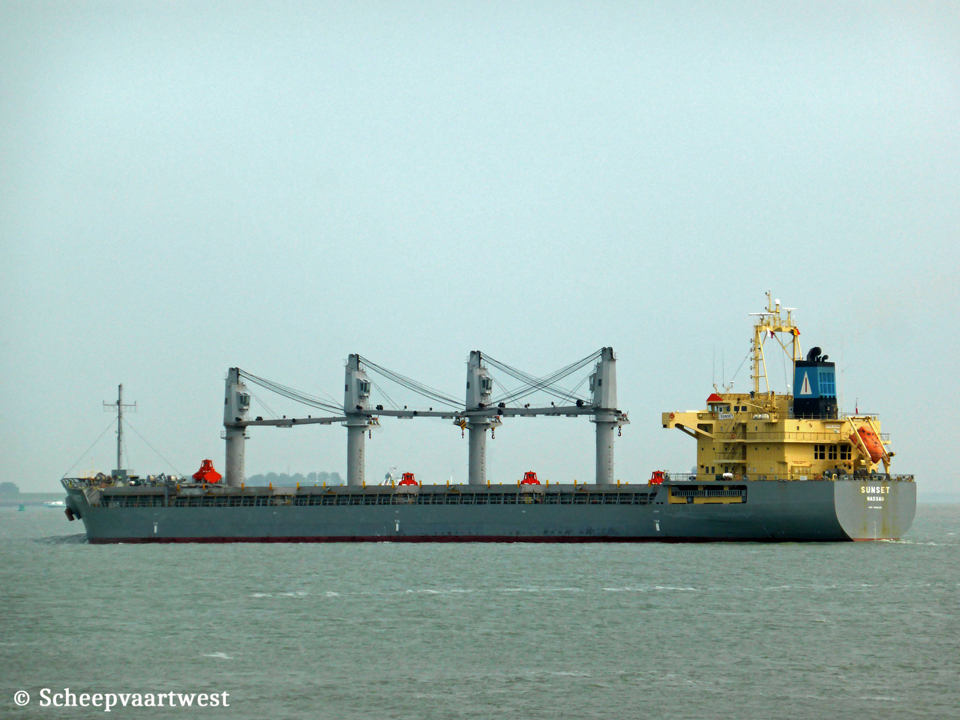

Sunset IMO 9402122 01
Westerschelde 22 May 2015


Name

SUNSET

Type

Bulk carrier - Carriage of dangerous goods - Handysize

IMO-number

9402122

Call sign

C6XY4

Flag

Bahamas

Port of registry

Nassau

GRT

22.697 t

DWT

37.334 t

NRT

12.674 t

Length

177,84 m overall

169,80 m between perpendiculars

Breadth

28,60 m moulded

Draught

Summer: 10,86 m

Moulded L x B x D

169,80 x 28,60 x 15,00 m

Registered L x B x D

170,58 x 28,60 x 15,00 m

Freeboard

Summer: 4.190 mm

Depth

15,00 m moulded

Speed

14,5 knots

Built

2009

Keel laid

06/03/2009

Launch date

08/06/2009

Delivery date

28/07/2009

Builder

Saiki Heavy Industries Co., Ltd.

Japan

Yard number

1178

Hull material

High strength steel

Ordinary strength steel

Bulkheads

Watertight: 48

Non tight: 8

Oil tight:7

Main engine

1x Mitsubishi 6UEC52LA - 2 stroke single acting 6 cylinder 520 x 1.600 mm combustion engine Mcr 7.080 kW / 9.626 hp at 133,0 rpm

Manufacturer: Akasaka Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 452 mm

Propellers

1x Fixed pitch solid keyless propeller

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Auxiliary vertical composite boiler - 6,9 bar

Evaporation: 2,14 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

3x Main diesel generatorsets each 440 kW

Manufacturer: Nishishiba Electric Co., Ltd.

Number of holds

5

Cargo hold capacity

Bale: 45.706,85 m³

Grain: 46.030,12 m³

Number of tanks

Ballast: 14

Lubricating oil: 11

Fuel oil: 9

Fresh water: 6

Diesel oil: 5

Sludge: 4

Chain: 2

Waste water: 2

Tank capacities 100%

Diesel oil: 315,36 m³

Freshwater: 233,68 m³

Fuel oil: 1.450,89 m³

Lube oil: 92,226 m³

Tank ballast: 14.299,32m³

Lifting equipment

1x Engine room overhead crane - SWL 2,6 t

Manufacturer: Futaba Mfg. Co., Ltd.

1x Provision crane - SWL 1,5 t

Manufacturer: Mansei Inc.

Cargo gear

4x Deck cranes - SWL 30,0 t each

Manufacturer: Mitsubishi Heavy Industries Ltd.

Crew size

25

Manager

Alberta Shipmanagement Ltd.

26A Ioannou Apostolopoulou

Chalandri 152 31, Athens

Greece

Registered owner

Sashiko Maritime SA, Athens - Greece

Care of Alberta Shipmanagement

Latest data adjustment

27 November 2023
