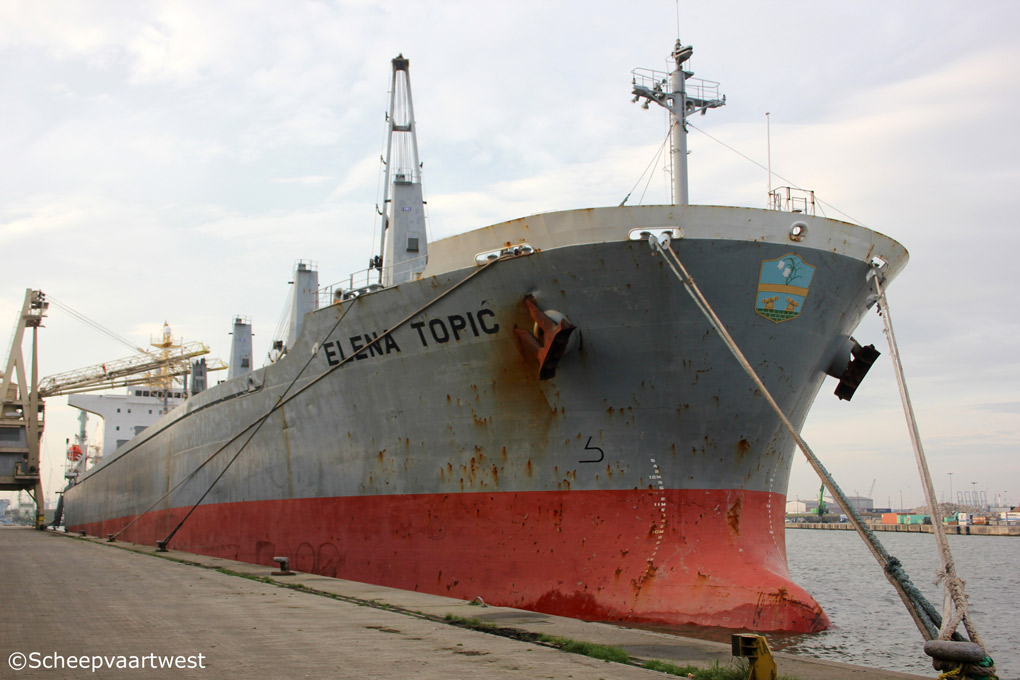

Elena Topic 01

Antwerpen 28 November 2014



Name

ELENA TOPIC

Type

Bulk carrier - Strengthened for heavy cargoes

IMO-number

9193692

Call sign

ELWS8

Flag

Liberia

Port of registry

Monrovia

GT

26.216 t registered

Suez: 27.139

DWT

Summer: 45.333 t

Winter: 44.129 t

NT

14.919 t registered

Suez: 23.954 t

Panama: 21.801 t

Light ship

7.848 t

Displacement

Summer: 53.181 t

Winter: 51.977 t

Length

185,74 m overall

177,00 m between perpendiculars

Breadth

30,40 m

Draught

Summer: 11,62 m

Winter: 11,38 m

Freeboard

Summer: 4.918 mm

Winter: 5.160 mm

Depth

16,50 m moulded

Speed

Max.: 16,10 m

14,0 knots laden

13,0 knots eco

Built

1999

Keel laid

24.11.1998

Launch date

14.01.1999

Date of completion

14.04.1999

Builder

Tsuneishi Shipyard Co., Ltd.
Fukuyama
Japan

Yard number

1152

Hull material

Steel

Main engine

1x Mitsui-Man B&W 6S50MC (Mark 5) - 2 stroke single acting 6 cylinder 500 x 1.910 mm diesel engine 8.561 kW / 11.640 bhp at 127 rpm

Builder: Mitsui Engineering & Shipbuilding Co., Ltd - Japan

Propellers

1x Fixed pitch propeller - aft at 127 rpm

Generators

3x Daihatsu 6DKB-20 main diesel engie 710 hp / 522 kW at 720 rpm coupled with generator 600 kVA / 480 kW - 450 Volt 50 Hz each

Number of holds

5

Hold 1: 20,00 15,30 m

Hold 2,3,4,5: 20,80 x 15,30 m

Cargo hold capacity

Grain / bale:

Hold 1: 10.361,6 m³ / 10.015,0 m³

Hold 2: 12.199,4 m³ / 11.844,6 m³

Hold 3: 11.731,1 m³ / 11.392,0 m³

Hold 4: 12.193,8 m³ / 11.814,0 m³

Hold 5: 10.722,5 m³ / 10.499,2 m³

Total: 57.208,4 m³ / 55.564,9 m³

Hatch cover type

Electric-hydraulic fwd/aft folding 2 panels

Max. permitted loads

Tank top:

Hold 1: 22,09 t/m²

Hold 2: 21,94 t/m²

Hold 3: 21,94 t/m²

Hold 4: 21,94 t/m²

Hold 5: 22,09 t/m²

Upper deck: 3,45 t/m² except between hatch ends

Hatch covers: 2,0 t/m²

Tank capacities 100%

Fresh water: 389 t

IFO: 1.443 m³

Diesel oil: 352,9 m³

Ballast: 15.201 t

Cargo gear

4x IHI Electric-hydraulic deck cranes - SWL 30,0 each

Max. outreach: 6,80 m

Cargo grabs: 4x Peiner dual scoop grabs - SWL 16,0 t capacity 10 m³, tare 7.72MT

Manager

Marfin Management S.A.M.
30, Avenue De Grande-Bretagne
98000 Monaco
Principality of Monaco

Registered owner

Vis Navigation Co., Inc.

Monrovia
Liberia

Latest data adjustment

15 March 2016
