Westerschelde 06 March 2016 |
 |
|
| Westerschelde 23/01/16 | |
|
Name |

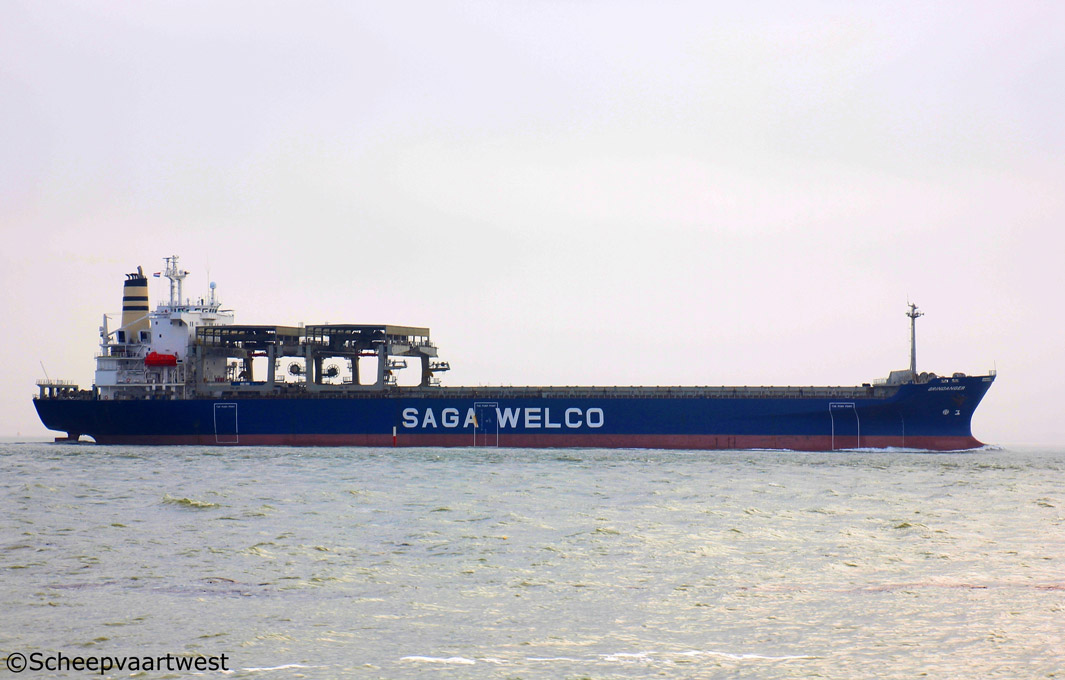

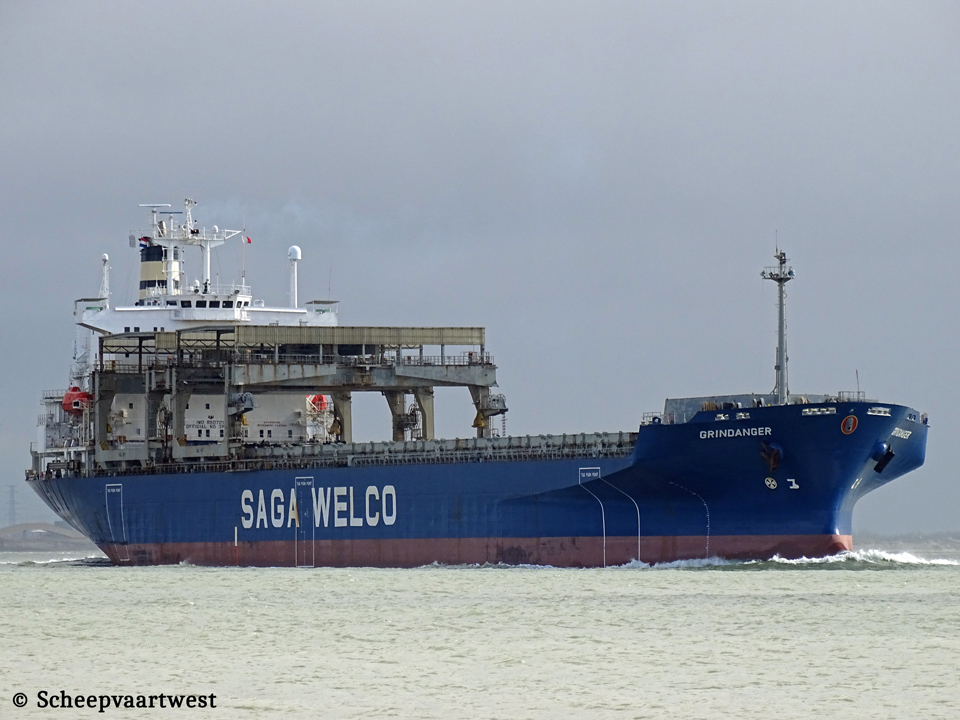

GRINDANGER |
|
Previous names |
1986 - 01/2009 Star Grindanger |
|
Type |
General cargo carrier- single deck Open hatch |
|
IMO-number |
8507212 |
|
Call sign |
9V8148 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
1986 - 2009 Norway |
|
GT |
27.972 t |
|
DWT |
Summer: 43.131 t |
|
NT |
13.106 t |
|
Number of 20ft containers |
On hatch covers: 736 In holds: 852 Total: 1.588 |
|
Reefer capacity |
60 |
|
Length |
201,00 m overall 192,00 m between perpendiculars |
|
Breadth |
29,40 m extreme |
|
Draught |
11,82 m |
|
Depth |
16,25 m |
|
Speed |
Max: 16,7 knots Eco: 12,2 knots |
|
Built |
1986 |
|
Keel laid |
22/05/1986 |
|
Launch date |
01/08/1986 |
|
Date of completion |
30/10/1986 |
|
Builder |
Kawasaki Heavy Industries, Ltd. Sakaide Japan |
|
Yard number |
1399 |
|
Hull material |
Steel |
|
Hull type |
Single hull double bottom |
|
Bulkheads |
Transverse: 14 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Kawasaki 5L70MCE - 2 stroke siongle acting 5 cylinder combustion engine 7.311 kW / 9.940 hp at 81,0 rpm |
|
Propellers |
1x Fixed propeller 5 blades - diameter: 6,700 mm Builder: Kobe steel Works Ltd. |
|
Boilers |
1x Auxiliary boiler, composite 1x Auxiliary boiler, exhaust gas heated |
|
Generators |
3 x Daihatsu 6DL-24 - 4 stroke 6 cylinder diesel engines each connected with Nishishiba generators each 1.000 kVA / 800 kW at 720 rpm - 450 Volt 60Hz |
|
Emergency generator |
1x MAN D0226 MTE diesel generatorset |
|
Bow thruster |
1x Kawasaki KT-130B1 thruster 1.190 hp 4 blades - Diameter: 2.000 mm Builder: Kawasaki Heavy Industries Ltd. |
|
Number of holds |
10 Hold 1: 12,30 x 13,26/18,30 x 16,16 m Hold 2-9: 22,30 x 24,66 x 16,16 m Hold 10: 12,30 x 18,30/24,66 x 16,16 m |
|
Total hold capacity |
Bale: Hold 1: 3.650 m³ / 128.733 ft³ Hold 2: 4.902 m³ / 172.887 ft³ Hold 3: 4.902 m³ / 172.887 ft³ Hold 4: 4.902 m³ / 172.887 ft³ Hold 5: 4.902 m³ / 172.887 ft³ Hold 6: 4.902 m³ / 172.887 ft³ Hold 7: 4.902 m³ / 172.887 ft³ Hold 8: 4.902 m³ / 172.887 ft³ Hold 9: 4.902 m³ / 172.887 ft³ Total: 47.436 m³ / 1.672.991 ft³ |
|
Number of hatchways |
10 1x Hatch: 12,30 x 13,20 m 8x Hatches: 12,30 x 24,60 m 1x Hatch: 12,30 x 18,30 m |
|
Hatch type |
Pontoon type |
|
Tank capacities |
Ballast: 19.048 m³ |
|
Cargo gear |
2x Travelling gantry cranes with weather protection - SWL 40,0 each |
|
Manager |
Rickmers Shipmanagement (Singapore) Pte. Ltd. |
|
Previous managers |
1986 - 2009 Westfal-Larsen Management AS 2009 - 2014 Masterbulk Pte. Ltd. 2014 - 2015 Masterbulk Ship Management Pte. Ltd. |
|
Operator |
Saga Welco AS Tenvikveien 373-375 3140 Nøtterøy Norway |
|
Owner |
Masterbulk Pte. Ltd. Republic of Singapore |
|
Previous owners |
1986 - 2008 Westfal-Larsen & Co. AS |
|
Sister ships |
1986 Geiranger - IMO 8507200 |
|
Scrapped as |
13/11/2018 Grind Beached at Alang - India Niue, Alofi - Call sign: E6RG2 |
|
Latest data adjustment |
05 May 2023 |
