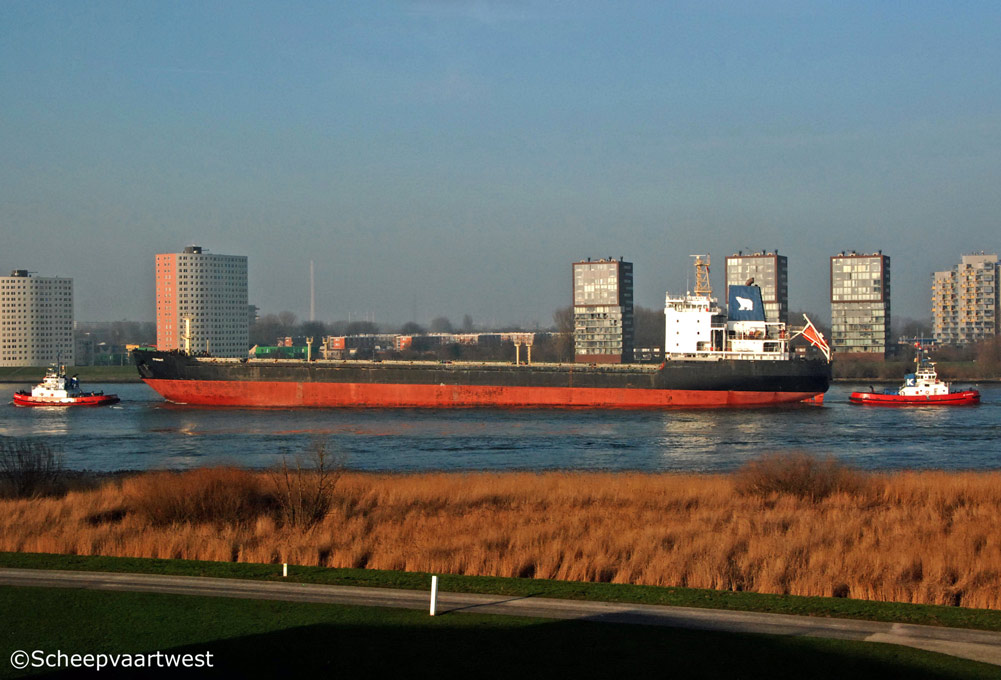

Spijkenisse, The Netherlands 02 March 2011 |
|
Name |

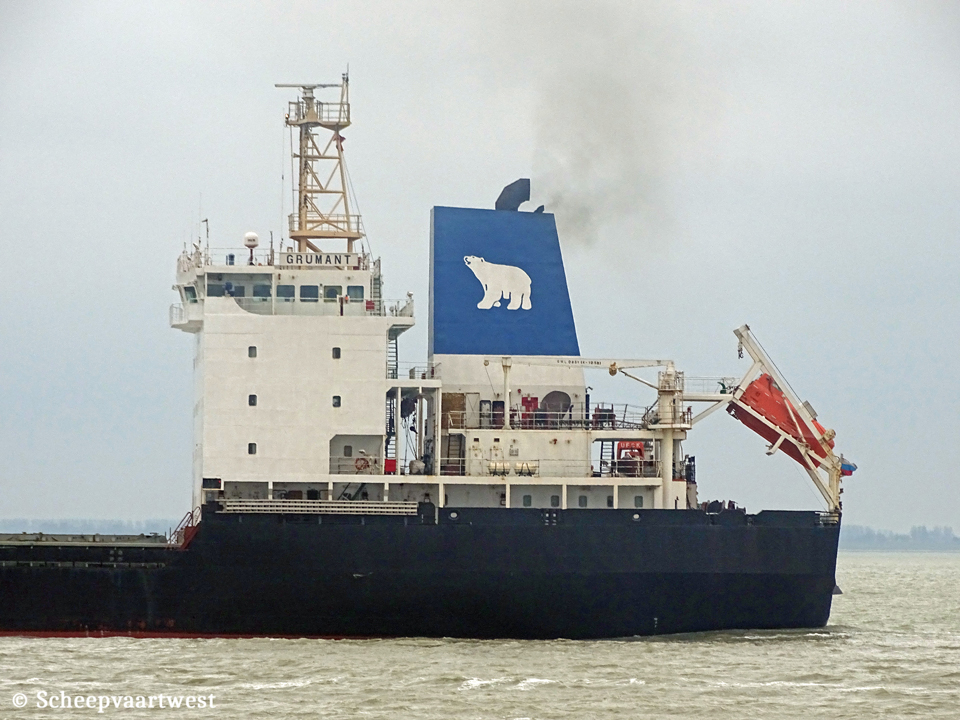

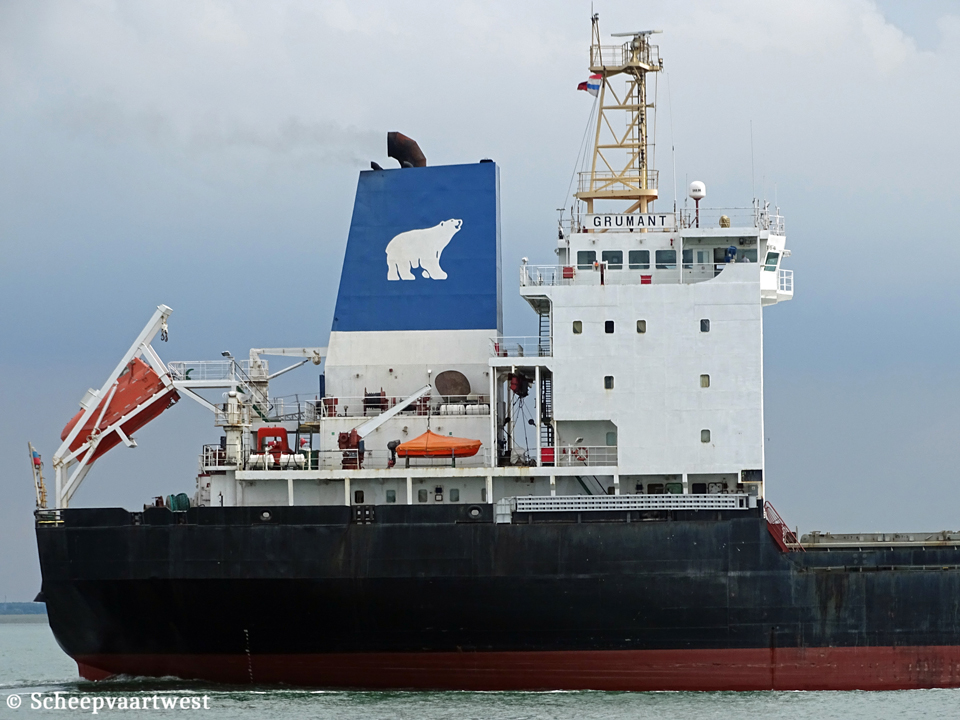

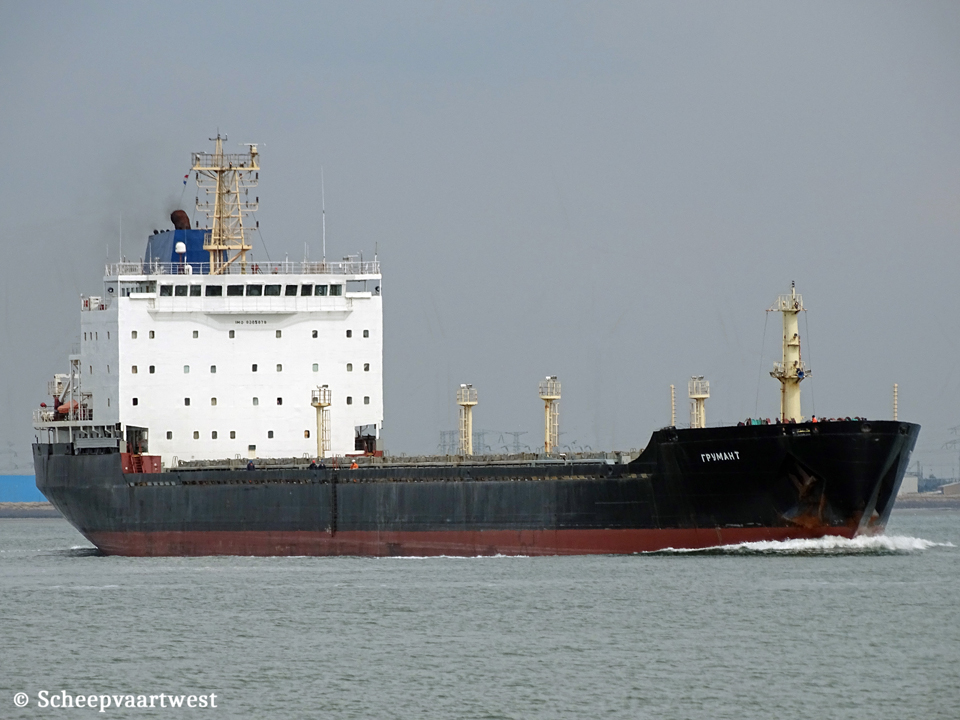

GRUMANT |
|
Previous names |
2006 - 2006 Cooperation |
|
Type |
Bulk carrier |
|
Subtype |
Ore - Grain - Wood packaged - Container facility |
|
IMO-number |
9385879 |
|
Call sign |
UFCK |
|
Flag |
Russia |
|
Port of registry |
Murmansk |
|
GT |
15.868 t |
|
DWT |
Summer: 23.645 t |
|
NT |
7.206 t |
|
Displacement |
31.755 t |
|
Number of 20ft containers |
512 |
|
Length |
180,50 m overall 173,28 m between perpendiculars |
|
Breadth |
22,86 m moulded |
|
Draught |
9,91 m |
|
Depth |
13,50 m moulded |
|
Speed |
15,2 knots |
|
Built |
2006 |
|
Date of completion |
21.08.2006 |
|
Builder |
Shanghai Shipyard & Chengxi Shipyard Co., Ltd. |
|
Yard number |
CX4218 |
|
Hull material |
Steel |
|
Bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN K8Z 70/120E - 2 stroke 8 cylinder diesel engine 8.238 kW / 11.200 bhp at 140 rpm Built: 2006 - Germany |
|
Propellers |
1x Fixed pitched propeller with detachable blades 4 blades |
|
Generators |
3x Daihatsu main diesel generatorsets each 600 kW at 500 rpm |
|
Emergency generator |
1x Diesel generatorset 100 kVA |
|
Number of holds |
7 |
|
Hold capacity |
Hold 1: 2.185 m³ Hold 2: 4.451 m³ Hold 3: 3.162 m³ Hold 4: 4.625 m³ Hold 5: 3.187 m³ Hold 6: 4.760 m³ Hold 7: 3.075 m³ Total: 25.445 m³ |
|
Number of hatches |
7 6x 12,80 x 13,50 m 1x 12,80 x 10,80 m |
|
Max. permitted loads |
Hatch covers: 1,75 t/m² Tank top: Hold 1: 22,50 t/m² Hold 2 & 6: 12,50 t/m² Hold 3 & 5 & 7: 29,00 t/m² Hold 4: 18,50 t/m² |
|
Tank capacities |
Fuel oil: 1.250 m³ Water ballast: 9.806 m³ |
|
Lifting equipment |
1x Crane - SWL 3,0 t 1x Crane - SWL 3,2 t |
|
Manager |
Murmansk Shipping |
|
Owner |
"Murmansk Shipping Company", Joint-stock Company ul. Kominterna, 15 183038 Murmansk |
|
Latest data adjustment |
24 December 2015 |
