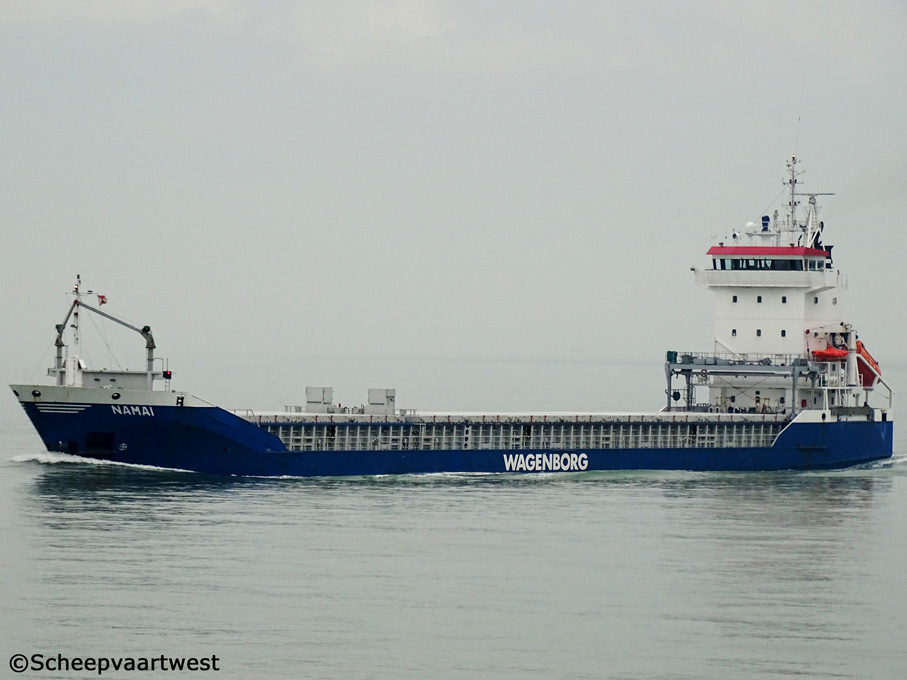

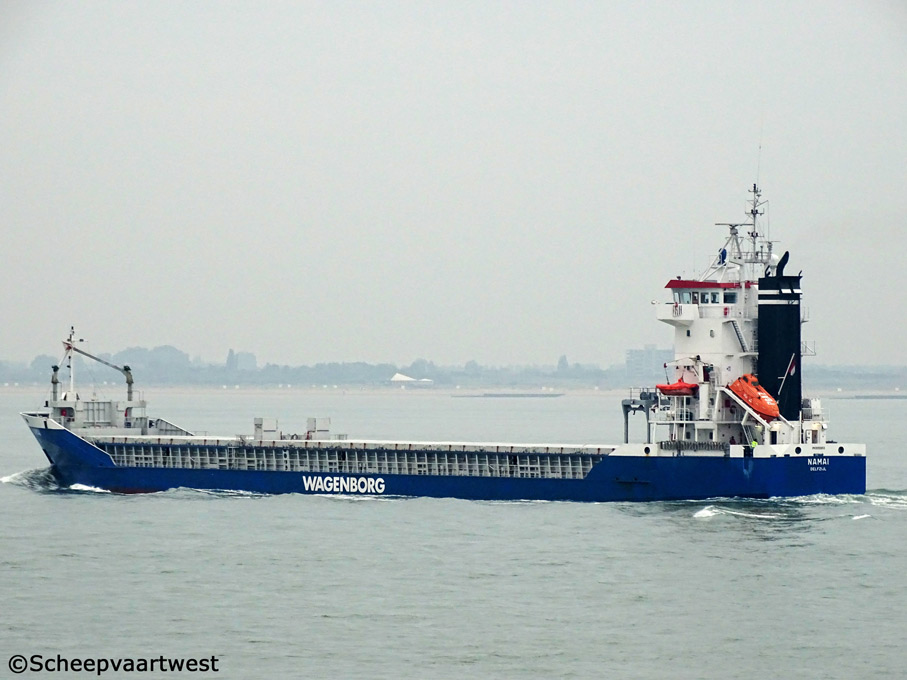

Westerschelde 19 October 2015 |
 |
| Westerschelde 19/10/15 |
|
Name |
NAMAI |
|
Type |
Multi-purpose cargo ship - Container ship |
|
IMO-number |
9155913 |
|
Call sign |
PGAZ |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
4.446 t |
|
DWT |
Summer: 6.324 t |
|
NT |
2.429 t |
|
Number of 20ft containers |
356 |
|
Length |
111,75 m overall 105,37 m between perpendiculars |
|
Breadth |
14,95 m moulded |
|
Draught |
Max.: 6,33 m |
|
Freeboard |
2.077 mm |
|
Depth |
8,40 m moulded |
|
Speed |
14,2 knots |
|
Built |
1998 |
|
Launch date |
26.11.1997 |
|
Date of completion |
28.01.1998 |
|
Builder |
Ferus Smit Scheepswerf B.V. |
|
Yard number |
314 |
|
Hull material |
Steel |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 8R32E - 4 stroke single acting 8 cylinder 320 x 350 mm diesel engine 3.280 kW / 4.456 hp at 750 rpm Built: 1998 Manufacturer: Wärtsilä NSD, Zwolle - The Netherlands |
|
Propellers |
1x Screw propeller controllable pitch - aft at 197 rpm |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Shaft generator |
1x 565 kVA - 452 kW |
|
Generators |
2x Diesel generatorsets each 188 kVA - 150 kW - 255 hp |
|
Number of holds |
2 |
|
Hold capacity |
Grain: 8.608 m³ |
|
Tank capacities |
Fuel oil: 526 m³ |
|
Cargo gear |
Gearless |
|
Manager |
Wagenborg Shipping B.V. The Netherlands |
|
Owner |
Wagenborg Shipping B.V. |
|
Previous owners |
01.1998 - 01.2015 Scheepvaartonderneming 'Emdi' C.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
15 November 2015 |
