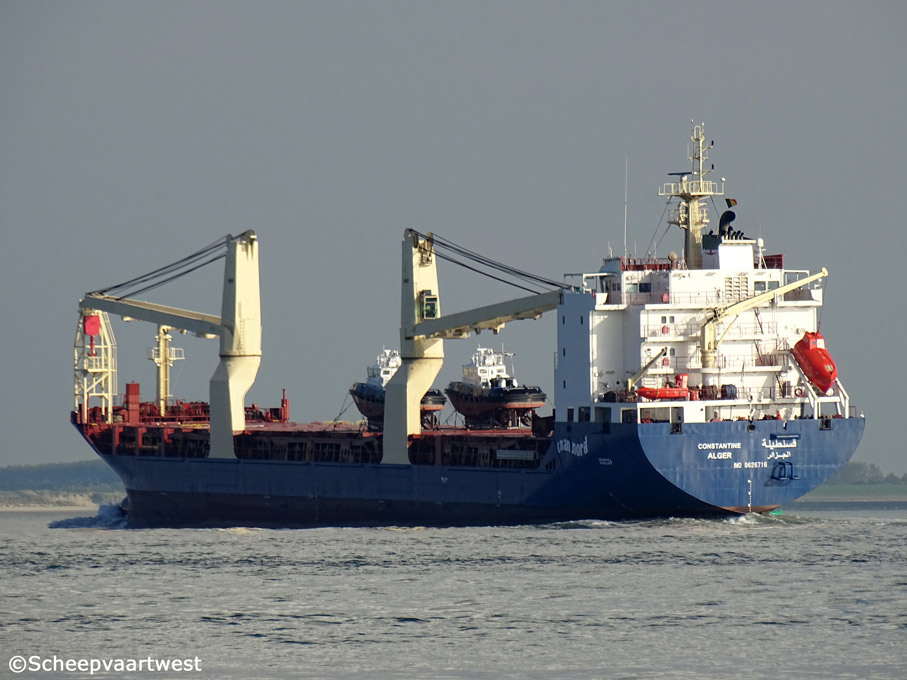

Westerschelde 09 October 2015 |
 |

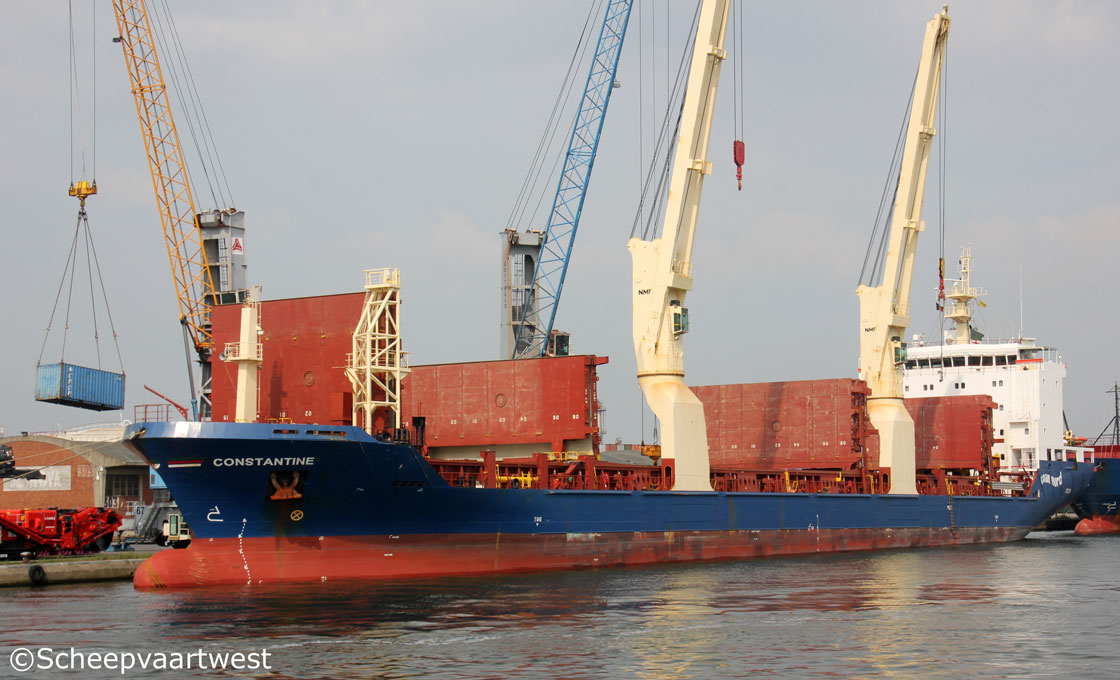

| Antwerpen 25/05/16 |
|
Name |
CONSTANTINE |
|
Previous names |
2012 Launch as: Jannes H |
|
Type |
Multi-purpose cargo ships - Heavycargo - Equipped for carriage of containers |
|
IMO-number |
9626716 |
|
Call sign |
7YHE |
|
Flag |
Algeria |
|
Port of registry |
Alger |
|
GT |
9.327 t |
|
DWT |
Summer: 12.767 t |
|
NT |
4.261 t |
|
Dis^placement |
Summer: 17.975 t |
|
Light ship |
5.327,3 t excluding tween deck |
|
Number of 20ft containers |
665 |
|
Reefer plugs |
68 |
|
Length |
138,52 m overall 130,71 m between perpendiculars |
|
Breadth |
21,00 m |
|
Draught |
8,00 m |
|
Keel to mast end |
39,38 m |
|
Distance bow to bridge |
125,65 m |
|
Distance bridge to stern |
12,85 m |
|
Freeboard |
2.851 mm |
|
Depth |
11,10 m moulded |
|
Speed |
Max.: 15,0 knots |
|
Built |
2012 |
|
Date of completion |
31.12.2012 |
|
Builder |
Taizhou Sanfu Ship Engineering Co., Ltd. China |
|
Yard number |
SF100101 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6C43M - 4 stroke 6 cylinder 430 x 600 mm diesel engine 5.400 kW / 7.337 hp at 500 rpm Built: 18.07.2011 Builder: Caterpillar Motoren Rostock GmbH, Rostock - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 132 rpm |
|
Boilers |
1x CHR 112.00 m² - 10,0 bar |
|
Shaft generator |
1x 875 kVA - 700 kW at 1.500 rpm |
|
Generators |
3x Diesel generatorsets each 352 kW at 1.500 rpm - 400 Volt 50 Hz |
|
Emergency generator |
1x Diesel generatorset 99 kW / 123,75 kVA at 1,500 rpm |
|
Bow thruster |
1x Jastram - 500 kW, forward |
|
Number of holds |
3 Hold 1: 18,75x15,00x10,75 Hold 2: 42,00x17,50x10,75 Hold 3: 25,50x17,50x10,75 |
|
Total capacity of holds |
Bale/grain: 15.953 m³ |
|
Tank capacities |
Fresh water: 148 m³ Fuel oil 98%: 956,7 m³ Gas oil: 151,9 m³ Lub oil: 69 m³ |
|
Anchor equipment |
2x Weight: 4.890 kg each |
|
Cargo gear |
2x NMF cranes - SWL 180 t each |
|
Manager |
Cnan Nord Spa |
|
Registered owner |
Cnan Nord Spa. |
|
Latest data adjustment |
06 November 2015 |
