Westerschelde 06 July 2012 |
 |
| Westerschelde 06/07/12 |
|
Name |

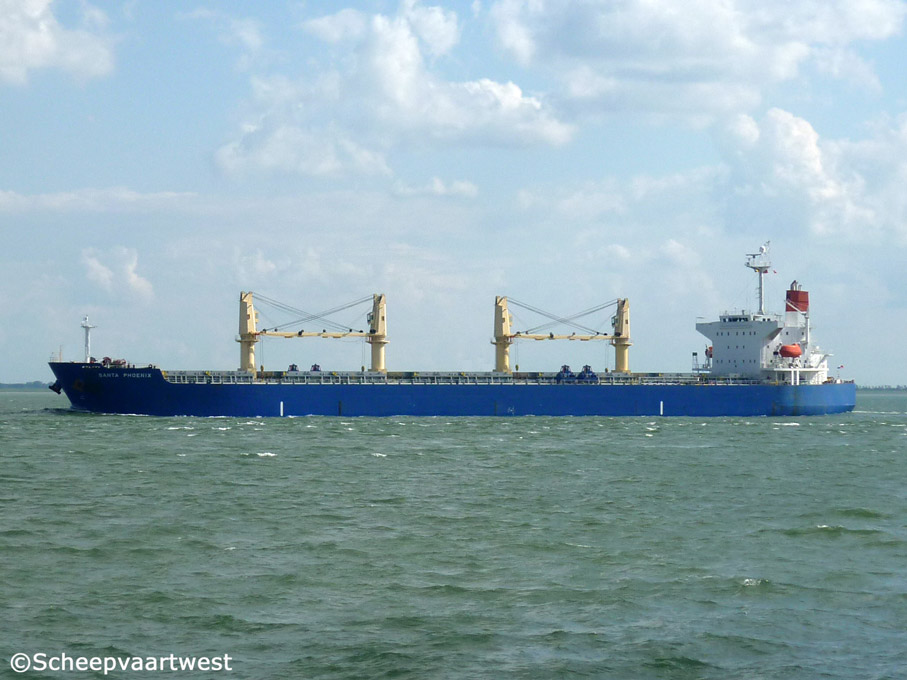

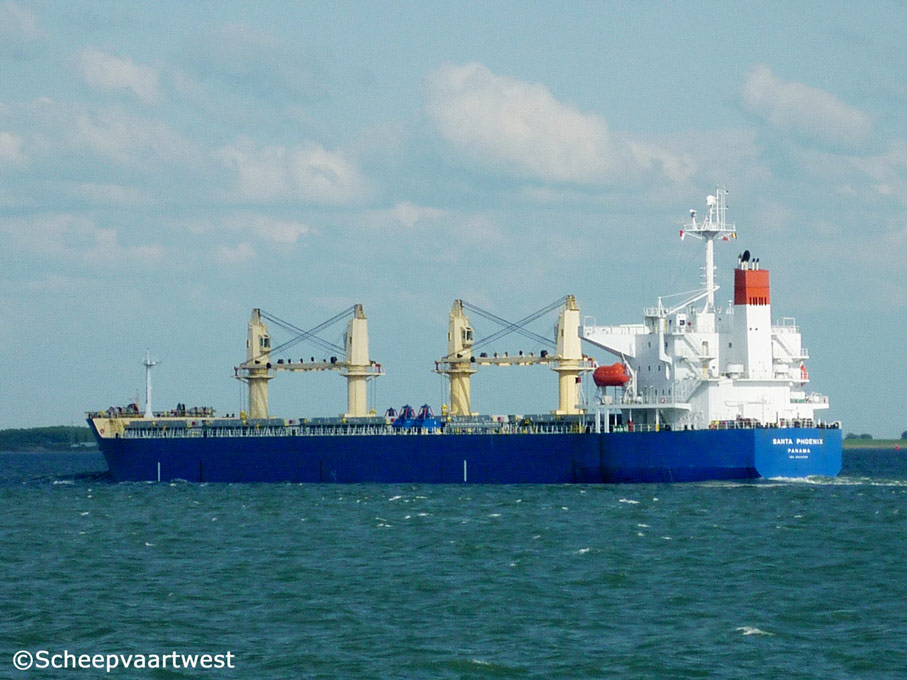

SANTA PHOENIX |
|
Type |
Bulk carrier |
|
IMO-number |
9324095 |
|
Call sign |
3EFG7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
31.234 t registered |
|
DWT |
Summer: 56.045 t |
|
NT |
18.504 t registered |
|
Length |
189,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,57 m |
|
Moulded L x B x D |
182,00 x 32,26 x 17,90 m |
|
Registered L x B x D |
182,97 x 32,26 x 17,90 m |
|
Freeboard |
5.370 mm |
|
Depth |
17,90 m moulded |
|
Speed |
Service: 14,5 knots Max.: 16,7 knots |
|
Built |
2006 |
|
Keel laid |
16.11.2004 |
|
Launch date |
26.04.2006 |
|
Date of completion |
23.06.2006 |
|
Builder |
Mitsui Ichihara Engineering & Shipbuilding Co. Ltd. Chiba Works |
|
Yard number |
1944 |
|
Hull material |
Steel |
|
Main engine |
1x MAN B&W/Mitsui 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine 9.480 kW / 12.889 hp at 127,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd., Tamano - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 470 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 2,97 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generators - 1.900 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Bale: 68.083 m³ Grain: 71.810 m³ |
|
Tank capacities |
Fuel oil: 2.532 m³ fresh water: 428 m³ Water ballast: 15.629 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Crew |
24 |
|
Manager |
Universal Marine Corporation |
|
Registered owner |
Sanzo Enterprise S.A. panama City Republic of panama |
|
Latest data adjustment |
15 October 2015 |
