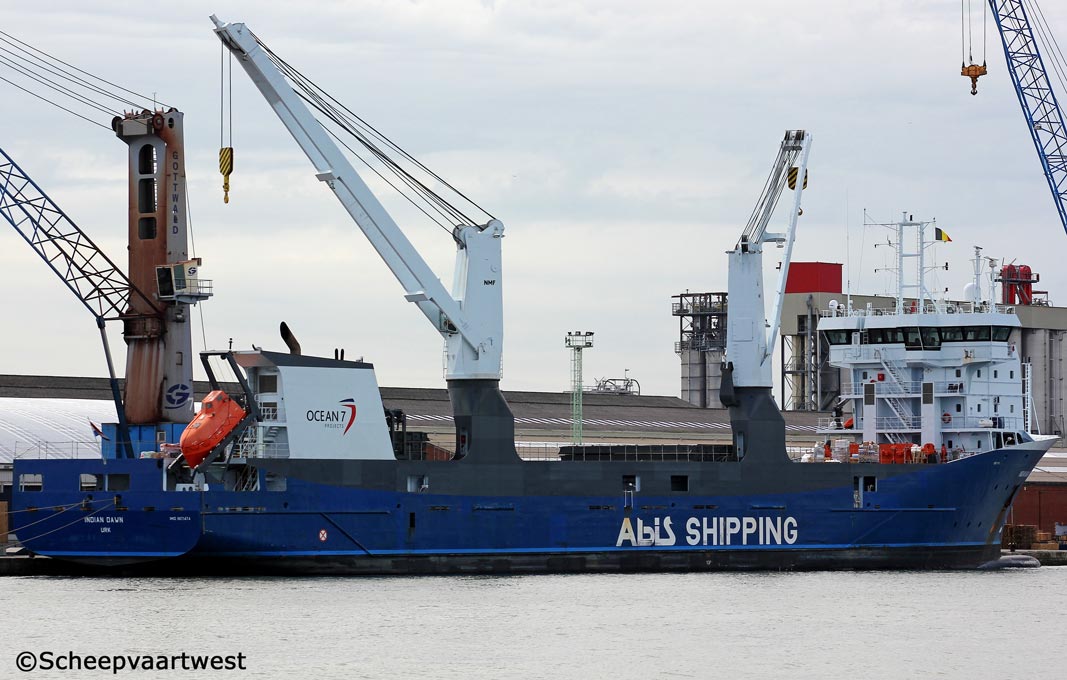

Indian Dawn 02

Antwerpen 14 may 2015

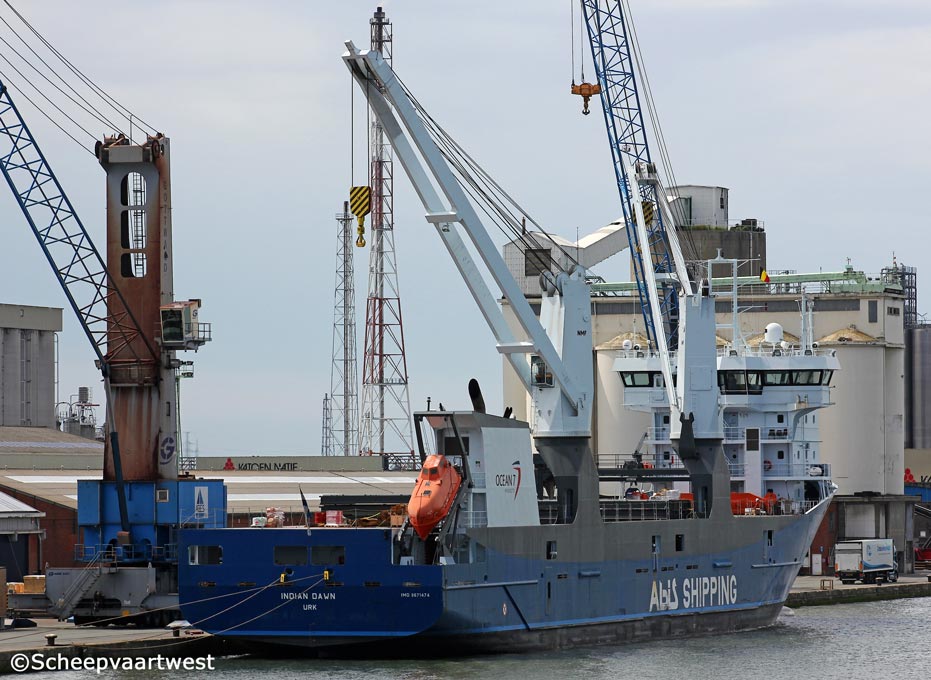

Indian Dawn 01
14/05/15



Name

INDIAN DAWN

Type

General cargo ship - heavycargo - Container ship - Open top vessel

IMO-number

9671474

Call sign

PCUU

Flag

The Netherlands

Port of registry

Urk

GT

5.460 t

DWT

Summer: 4.200 t

NT

1.638 t

Displacement

8.268 t

Number of 20ft containers

In hold: 124

On deck: 137

Total: 261

Length

111,60 m overall

102,00 m between perpendiculars

Breadth

16,94 m overall

16,40 m moulded

Draught

Summer: 5,94 m

Keel to top mast

34,00 m

Freeboard

418 mm

Depth

9,30 m to main deck

Speed

Max.: 18,0 knots

Service: 16,5 knots

Built

2014

Launch date

2013

Delivery

28.05.2014

Builder casco

Partner Sp.z.o.o.
Szczecin
Poland

Builder completion

Hartman Marine Shipbuilding B.V.
Urk
The Netherlands

Yard number

122

Hull material

Steel

Continuous decks

1

Main engine

1x MaK - 4 stroke single acting 8 cylinder 320 x 480 mm diesel engine - 4.000 kW / 5.435 bhp at 600 rpm

Built: 19.06.2013

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propelling system

1x Screw propeller controllable pitch - aft at 173 rpm

Shaft generator

1x 875 kVA - 700 kW

Generators

2x Main diesel generatorsets each 500 kVA - 400 kW - 579 hp

Emergency generator

1x Diesel generatorset 149 kVA - 119 kW - 198 hp

Bow thruster

1x 300 kW, forward

1x 300 kW, aft

Number of holds

1

Lower hold dimensions: 45,20 x 11,50 m

Tween deck dimensions: 63,50 x 12,00 m

Hold height: 10,55 m

Total capacity of holds

6.770 m³ - 239.000 ft³

Hold floor surface

1.310 m²

Deck floor surface

1.529 m²

Number of hatches

1

Dimensions: 66,00 x 12,00 m

Type hatch covers

11x Pontoon hatches

Tween deck pontoons

7x Removable pontoons

Weather deck dimensions

91,00 x 16,80 m

Deck loads

Tanktop: 15,0 t/m²

Tanktop forward: 25,0 t/m²

Tween deck pontoons: 3,5 t/m²

Fixed tween decks for and aft: 15,0 t/m²

Hatch covers: 3,0 t/m²

Steel decks on weather deck: 3,5 - 4,5 t/m²

Stability pontoon: 1,0 t/m²

Tank capacities

Heavy fuel oil:530 m³

Marine gas oil: 65 m³

Lubricating oil: 15 m³

Fresh water:35 m³

Ballast water: 3.460 m³

Cargo gear

2x NMF cranes - SWL 150 t each

Load/Outreach:

150 t / 4,0-16,0 m

120 t / 4,0-19,0 m

95 t / 4,0-24,0 m

80t / 4,0-28,0 m

Tandem load: 300 t

Manager

Abis Shipping
Nieuwe Vissershaven 5
8861 NX Harlingen
The Netherlands

Charterer

Ocean7Projects

Sdr. Havnegade 34

DK-6000 Kolding

Denmark

Owner

Hartman Shipping
Urk
The Netherlands

Registered owner

Hartman Shipping 4 B.V.

Renamed

03/01/2017 Eemslift Ellen

The Netherlands, Delfzijl - Call sign: PCUU

Latest data adjustment

16 August 2018
