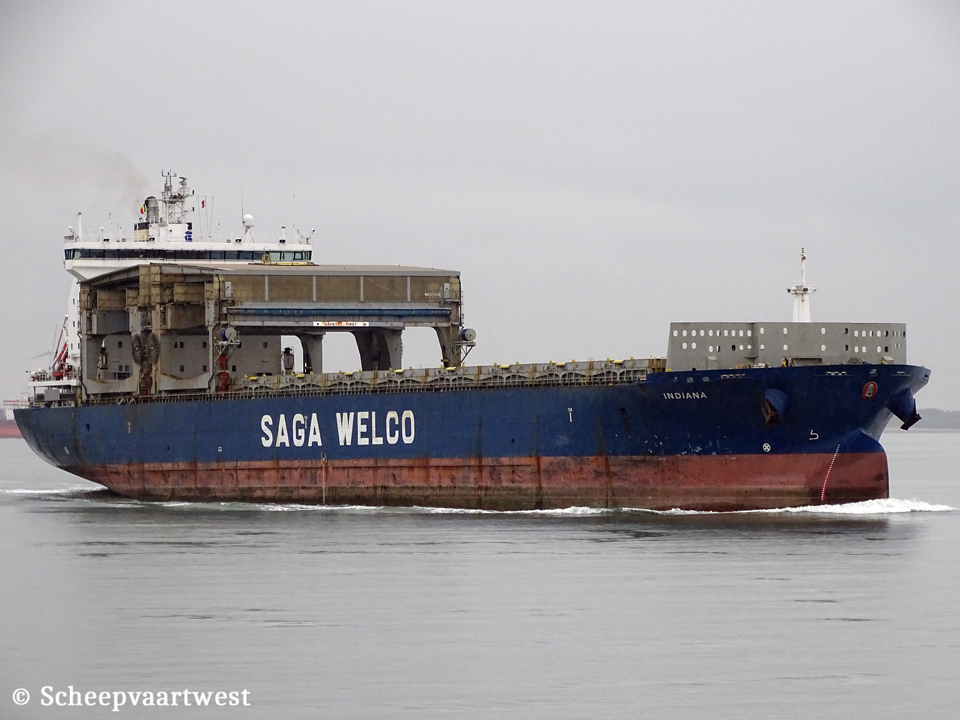

| Westerschelde 03 November 2013 |
|
Name |
INDIANA |
|
Previous names |
2009 Build as: Star Indiana |
|
Type |
Gantry geared open hatch bulk/Container carrier |
|
IMO-number |
9186211 |
|
Call sign |
LAJJ8 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
Previous flags |
2009 - 2020 Republic of Singapore, Singapore City - Call sign: S6BE |
|
GT |
33.448 t |
|
DWT |
44.982 t |
|
NT |
13.195 t |
|
Number of 20ft containers |
In holds: 1.256 On Hatch covers: 620 Total: 1.876 |
|
Length |
198,50 m overall 189,55 m between perpendiculars |
|
Breadth |
31,00 m |
|
Draught |
Summer: 12,25 m |
|
Depth |
19,00 m |
|
Speed |
Max: 16,2 knots |
|
Built |
2000 |
|
Keel laid |
29/06/1997 |
|
Launch date |
13/09/1999 |
|
Delivery date |
02/02/2000 |
|
Builder |
Stocznia Szcecinska Porta Holding Szczecin Poland |
|
Yard number |
B584-I/2 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse: 7 |
|
Continuous decks |
1 |
|
Main engine |
1xMAN-B&W/HCW 6S60MC - 2 stroke 6 cylinder 600 x 2.292 mm combustion engine 11.200 kW / 15.228 hp at 105,0 rpm Builder: Zakladi Przemyslu Metalowego H. Cegielski S.A., Poznan - Poland |
|
Propellers |
1x Fixed pitch mono-block propeller 4 bladed, right handed |
|
Boilers |
1x Auxiliary boiler, vertical shell type Mission OS - 7,9 bar 1x Auxiliary boiler, exhaust gas smoke tube AQ2 - 7,9 bar Builder: Aalborg Industries A/S |
|
Generators |
2x MAN-B&W 6L23/30 diesel generatorsets each 996 kW 1x MAN-B&W 8L23/30 diesel generatorset 1.328 kW |
|
Emergency generator |
1x MAN D2866TE diesel generatorset 190 kW |
|
Bow thruster |
1x 1.500 kW, forward 1x 750 kW, stern |
|
Number of holds |
11 |
|
Cargo hold capacity |
Hold 1: 3.972 m³ / 140.353 ft³ Hold 2: 5.780 m³ / 204.240 ft³ Hold 3: 6.155 m³ / 217.491 ft³ Hold 4: 6.155 m³ / 217.491 ft³ Hold 5: 6.155 m³ / 217.491 ft³ Hold 6: 6.155 m³ / 217.491 ft³ Hold 7: 6.155 m³ / 217.491 ft³ Hold 8: 6.155 m³ / 217.491 ft³ Hold 9: 6.155 m³ / 217.491 ft³ Hold 10: 6.155 m³ / 217.491 ft³ Hold 11: 2.735 m³ / 96.630 ft³ Total: 61.352 m³ / 2.167.913 ³ |
|
Number of hatches |
11 |
|
Tank capacities |
Ballast: 16.512 m³ |
|
Cargo gear |
2x Gantry cranes - SWL 70 t each |
|
Crew size |
29 |
|
ISM & commercial manager |
Westfal-Larsen Management AS Fabrikkgaten 6 5059 Bergen Norway |
|
Operator |
Saga Welco |
|
Registered owner |
Masterbulk AS Fabrikkgaten 6 5059 Bergen Norway |
|
Latest data adjustment |
02 June 2022 |
