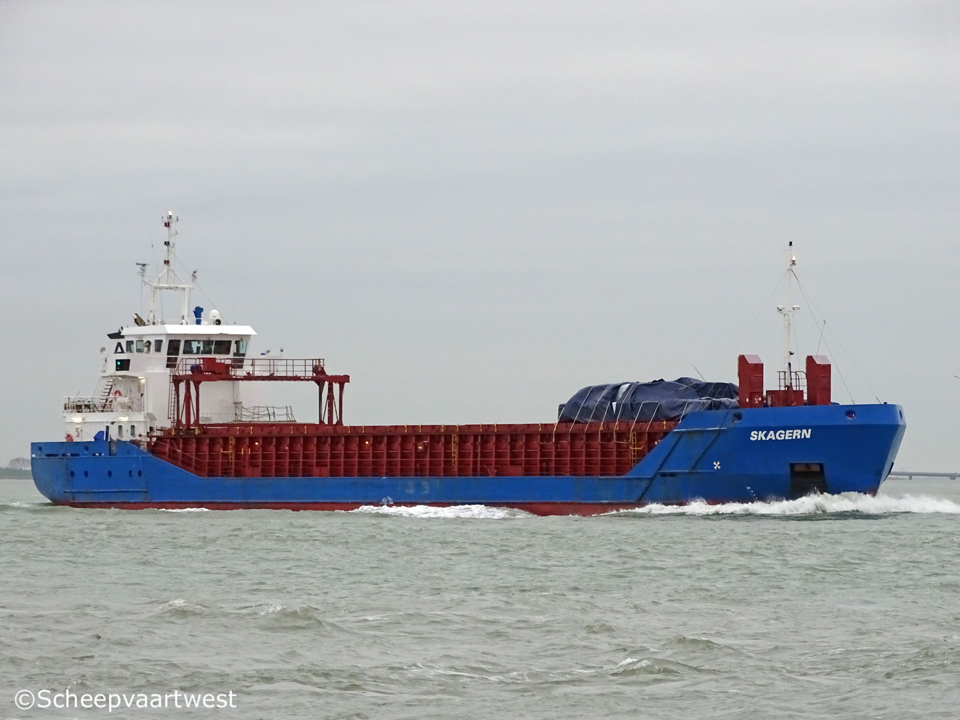

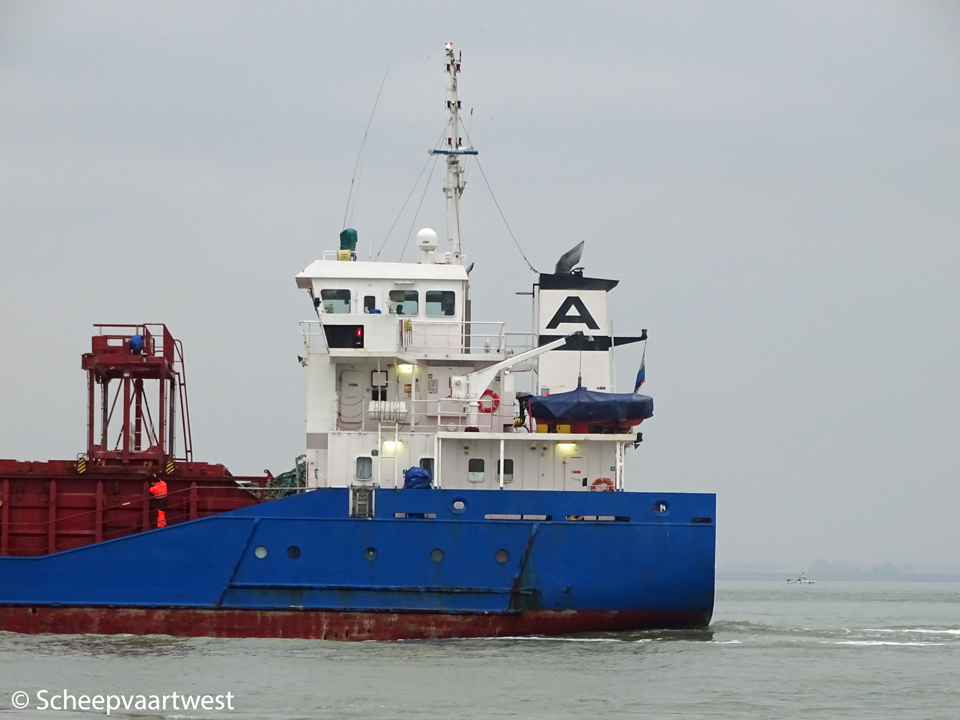

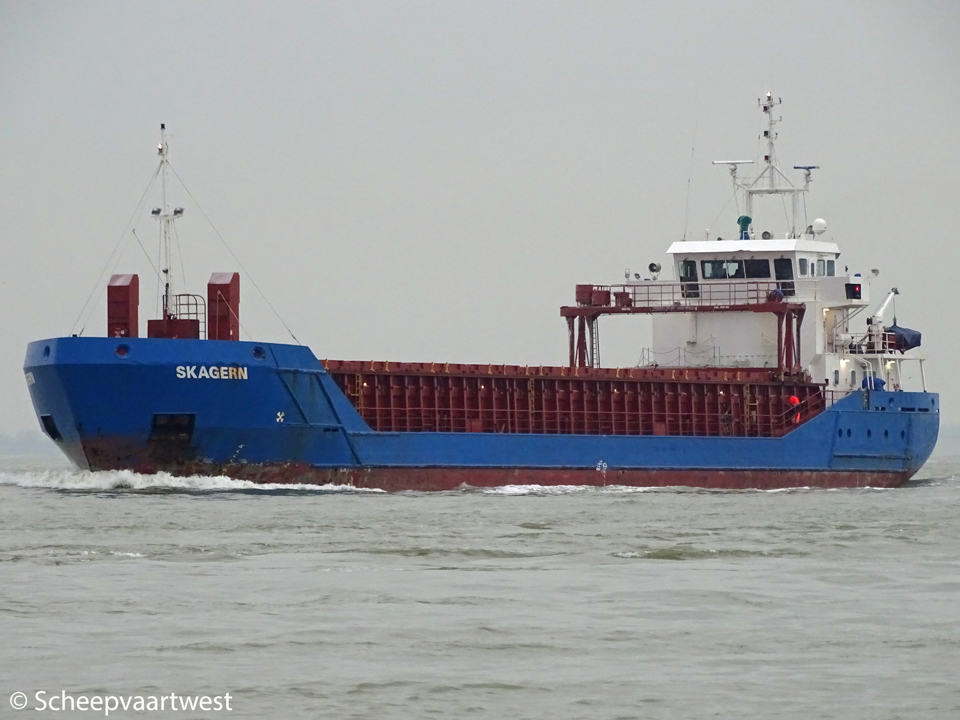

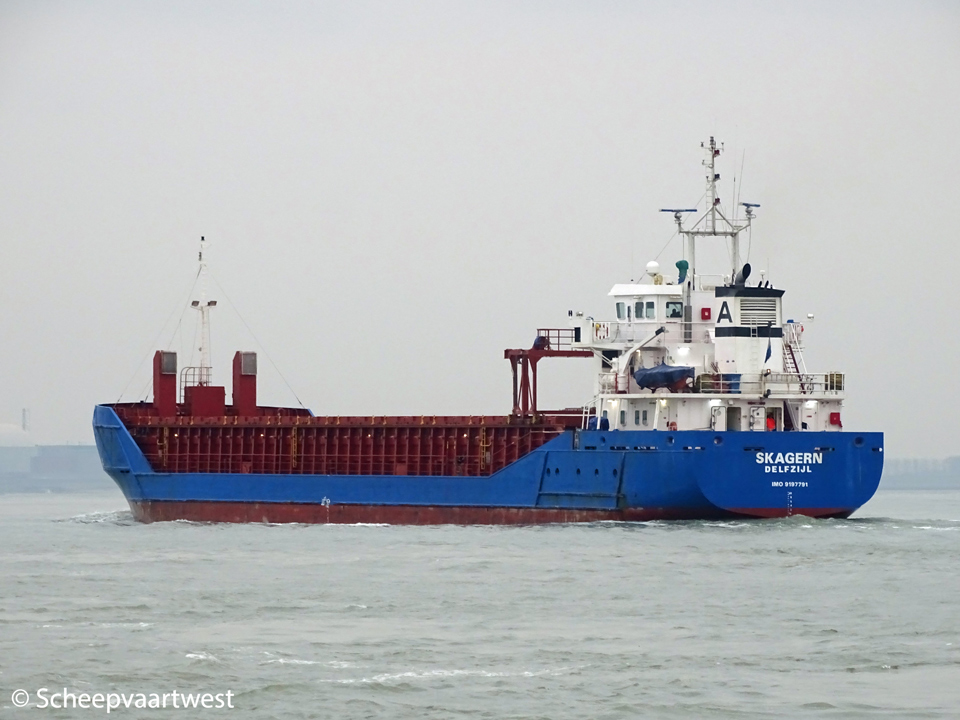

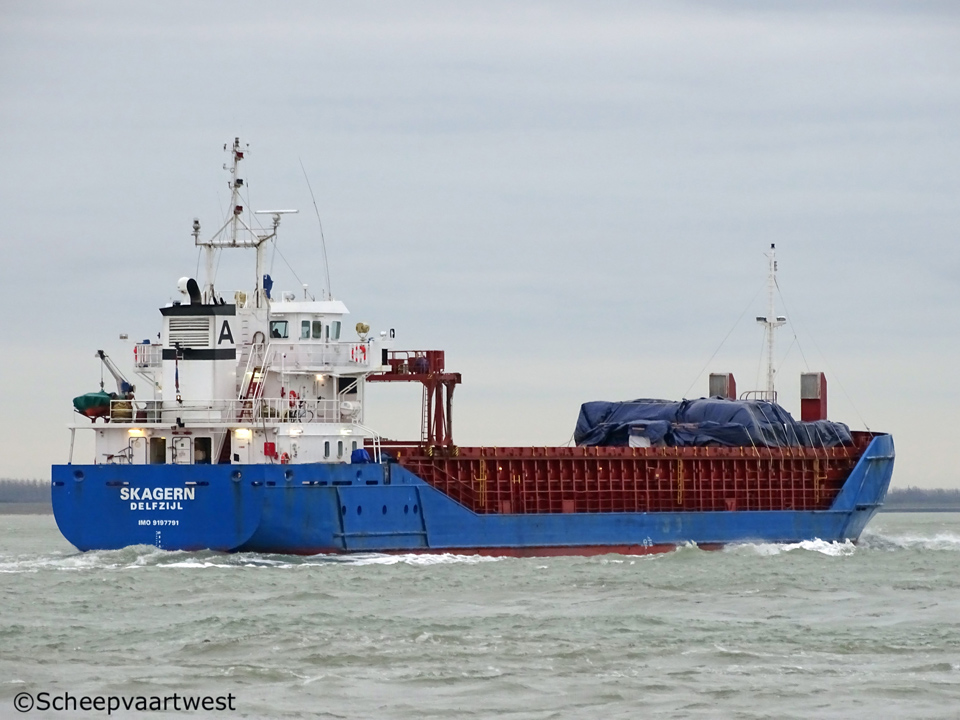

Westerschelde 05 December 2017 |
 |
 |
 |
 |
 |
||||

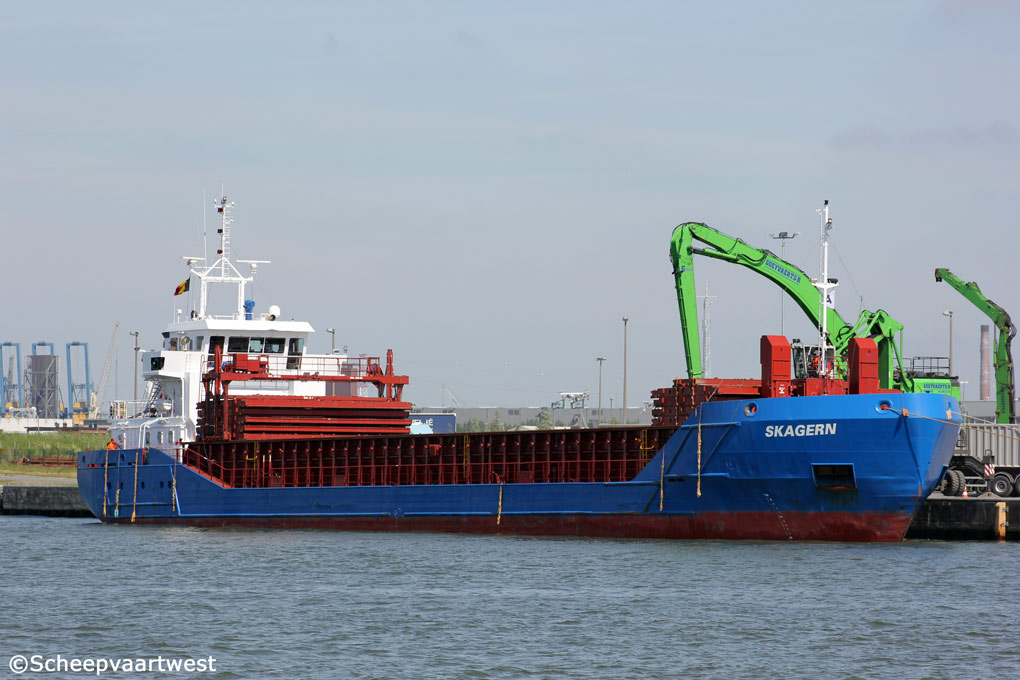

| Westerschelde 05/12/17 | Antwerpen 15/05/14 | Westerschelde 06/10/19 | Westerschelde 06/10/19 | Westerschelde 06/10/19 |
|
Name |
SKAGERN |
|
Previous names |
09/2000 - 11/2006 Scharhörn |
|
Type |
Multi-purpose cargo ship - Strengthened for heavy cargo - Equipped for carriage of containers |
|
IMO-number |
9197791 |
|
Call sign |
PHHL |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flags |
09/2000 - 11/2006 Gibraltar - Call sign: ZDEF3 |
|
GT |
2.301 t |
|
DWT |
Summer: 3.171 t |
|
NT |
1.289 t |
|
Number of 20ft containers |
132 |
|
Length |
82,50 m overall 78,90 m between perpendiculars 79,25 m registered |
|
Breadth |
12,40 m moulded |
|
Draught |
Max.: 5,30 m |
|
Forecastle |
8,85 m |
|
Depth |
6,70 m moulded |
|
Speed |
11,5 knots |
|
Built |
2000 |
|
Keel laid |
29/06/1998 |
|
Launch date |
13/02/2000 |
|
Date of completion |
09/ 2009 |
|
Builder casco |
Daewoo Mangalia Heavy Industries S.A. Yard number: 1006 |
|
Builder completion |
Pattje Shipyards B.V. Yard number: 415 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x Mak 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.800 kW at 750 rpm Transmission: Main propulsion acts through gear on the propellershaft Starter type: Compressed air direct Year of manufacture: 2000 Manufacturer: Krupp Mak Maschinenbau GmbH |
|
Propellers |
1x Controllable pitch propeller - aft at 220 rpm |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Electric installations |
2x Plants each 380/220 V - 113 kVA 1x Plant 380 V - 300 kVA 1x Plant 380 V - 113 kVA |
|
Shaft generator |
1x 300 kVA |
|
Generators |
2x MAN D2866E main diesel generatorsets each 113 kVA |
|
Emergency generator |
1x MAN D2866E diesel generatorset 113 kVA |
|
Batteries |
1x Water heater, oil fired - 5,0 bar Year of manufacture: 1999 |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 200 kW, forward |
|
Hold capacity |
Bales / Grain: 4.783 m³ |
|
Tank capacities |
Fuel oil: 217 m² Water ballast: 1.360 m³ |
|
Anchor equipment |
3x Anchors weight each 1.740 kg Chain length: 440,00 m Diameter: 32 mm |
|
Manager |
Marin Shipmanagement B.V. |
|
Previous managers |
09.2000 - 11.2006 Scharhörn - Briese Schiffahrts GmbH., Leer - Germany |
|
Owner |
MF Ship B.V. |
|
Previous names & owners |
09/2000 - 11/2006 Scharhörn - Briese Schiffahrts GmbH. & Co. K.G. m.s. Scharhorn, Leer - Germany |
|
Latest data adjustment |
06 Funerary 2019 |
