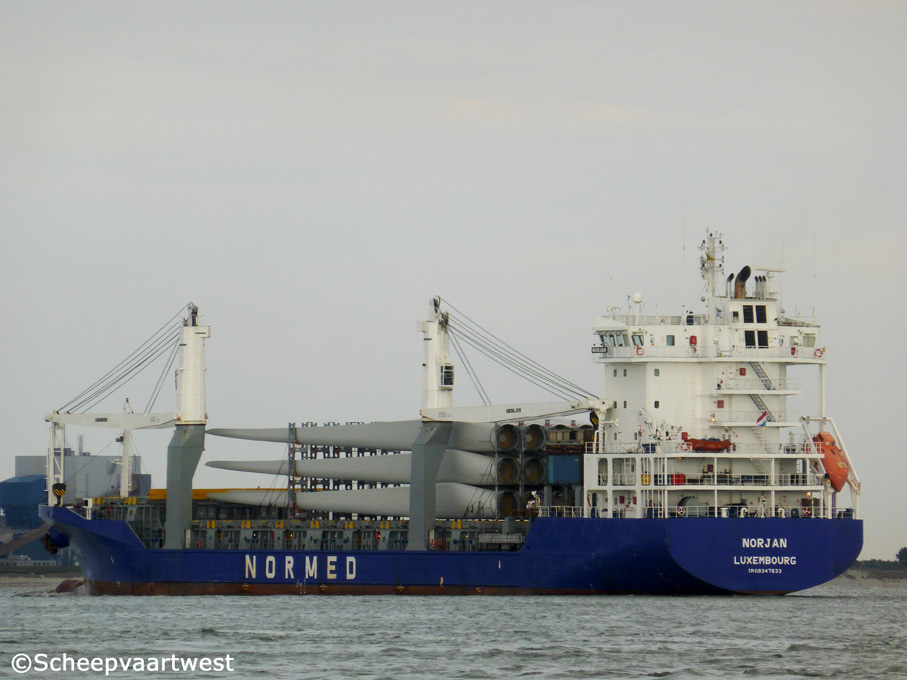

Westerschelde 03 August 2014 |
|
Name |
NORJAN |
|
Previous names |
2007 Launch as: Norjan 2007 - 05.2009 Sloman Sprinter |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9347633 |
|
Call sign |
V2GP4 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
Previous flag |
G.D. Luxembourg, Luxembourg - Call Sing: LXNJ |
|
GT |
8.407 t |
|
DWT |
Summer: 11.169 t |
|
NT |
4.215 t |
|
Number of 20ft containers |
669 |
|
Length |
129,49 m overall 121,32 m between perpendiculars |
|
Breadth |
19,00 m moulded |
|
Draught |
8,70 m |
|
Forecastle |
28,31 m |
|
Poop |
19,68 m |
|
Depth |
11,65 m moulded |
|
Speed |
16,0 knots |
|
Built |
2007 |
|
Keel laid |
22.12.2006 |
|
Launch date |
29.04.2007 |
|
Date of completion |
20.07.2007 |
|
Builder |
Daehan Shipbuilding Co., Ltd. |
|
Yard number |
H503 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
11 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 6M43C - 4 stroke 6 cylinder 430 s 610 mm diesel engine - 6.000 kW at 500 rpm Year of manufacture: 2006 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 124,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 8,83 bar Heating surface: 15,0 m² 1x Steam boiler, exhaust gas heated - 8,83 bar Heating surface: 72,0 m² Year of manufacture: 2006 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) |
|
Electric installations |
3x Plants each 450/220 V - 450 kVA 1x Plant 450 V - 875 kVA 1x Plant 450 V - 125 kVA |
|
Shaft generator |
1x 875 kVA |
|
Generators |
3x Yanmar 6NY16L-SN main diesel generatorsets each 450 kVA |
|
Emergency generator |
1x Cummins 6BT5.9-D(M) diesel generatorset 125 kVA |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 100 litres - 30,0 bar 1x Receiver 150 litres - 7,6 bar |
|
Bow thruster |
1x Transverse thruster 500 kW, forward |
|
Number of holds |
2 Hold No.1: 18,90 x 15,60 x 11,00 m Lower hold no.1: width at 15,60 m - length 7,00 m / width at 10,00 m length Hold No.2: 58,20 x 15,60 x 11,0 m (3 compartments in hold 2) |
|
Cargo hold capacity |
Bale: 13.565 m³ Grain: 14.237 m³ |
|
Number of hatches |
2 Hatch 1: 18,90 x 15,60 m Hatch 2: 58,20 x 15,60 m |
|
Type of hatch covers |
Pontoon type - 13 pieces |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Chain length: 550,00 m Diameter: 60 mm |
|
Cargo gear |
2x Liebherr cranes - SWL 60,0 t each Combinable at 120 t |
|
Crew size |
17 |
|
Manager |
Reederei Erwin Strahlmann e.K. |
|
Operator |
Normed International B.V |
|
Registered owner |
Scheepvaartondernemering M.V. "NORJAN" C.V. |
|
Previous owner |
Universal Shipping BV - Krimpen a/d IJssel - The Netherlands |
|
Renamed |
11.2017 Henrik S Republic of Panama, Panama City - Call sign: 3FMX6 |
|
Latest data adjustment |
27 March 2015 |
