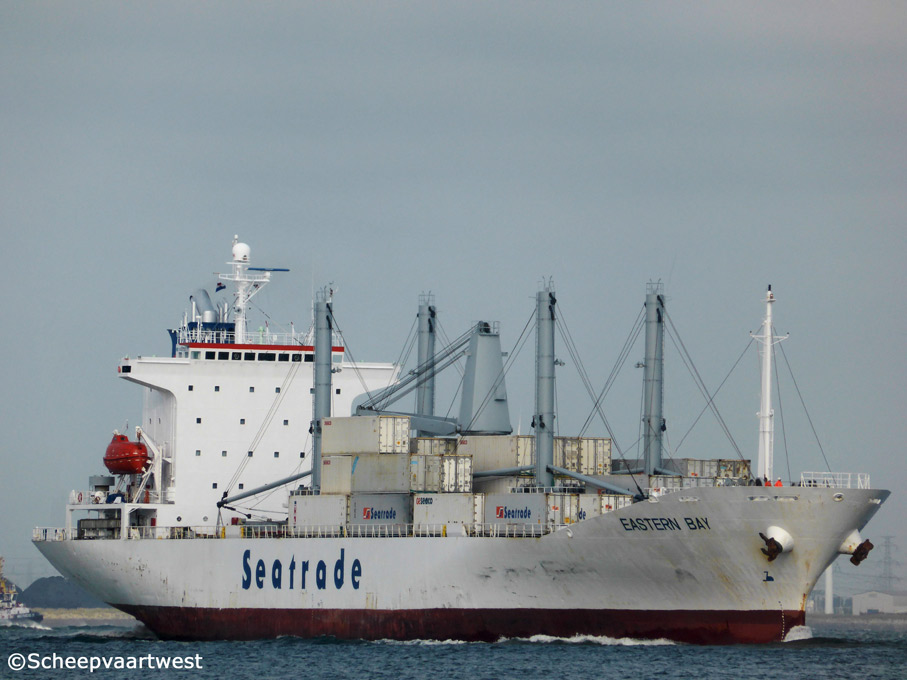

Westerschelde 17 June 2014 |
 |

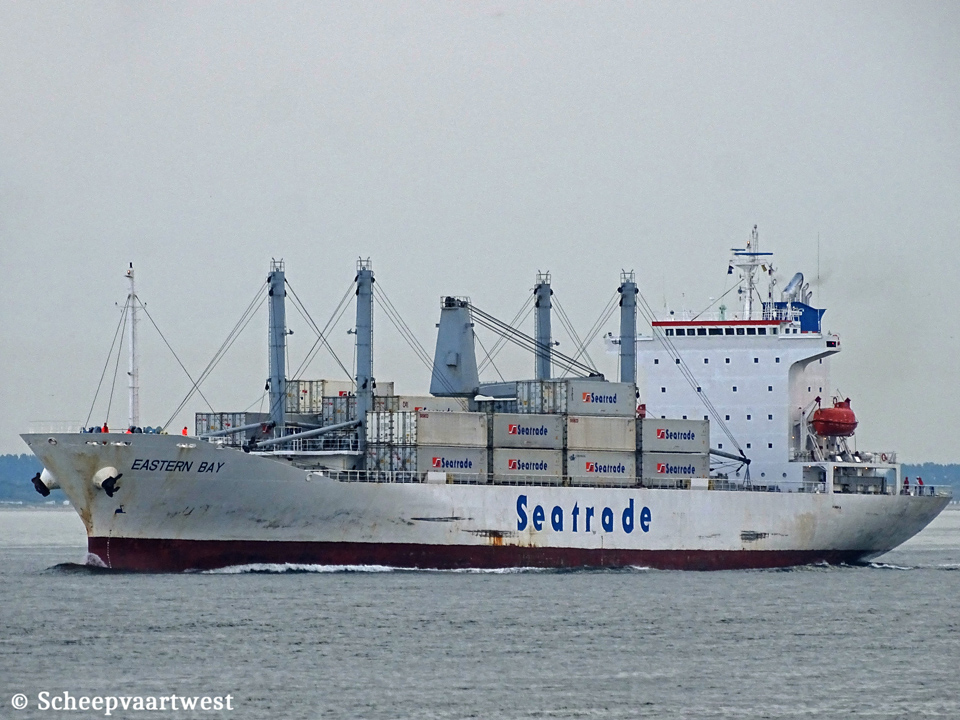

| Westerschelde 24/06/19 |
|
Name |
EASTERN BAY |
|
Previous names |
1997 Launch as: Frost Express 03/1997 - 07/2005 Eastern Express |
|
Type |
Refrigerated cargo ship |
|
IMO-number |
9143752 |
|
Call sign |
A8IO9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
8.917 t |
|
DWT |
Summer: 9.638 t |
|
NT |
4.366 t Panama: 7.699 t Suez: 8.032 t |
|
Container capacity |
93 FEU OR 138 TEU + 24 FEU |
|
Reefer plug |
73 |
|
Length |
143,00 m overall 133,00 m between perpendiculars |
|
Breadth |
22,00 m |
|
Draught |
Summer: 8,29 m Winter: 8,12 m |
|
Freeboard |
4.743 mm |
|
Depth |
13,01 m |
|
Speed |
Max.: 21,7 knots 19,5 knots banana laden |
|
Built |
1997 |
|
Date of completion |
01/03/1997 |
|
Builder |
Kitanihon Shipbuilding Co., Ltd. Hachinohe Japan |
|
Yard number |
306 |
|
Hull material |
Steel |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi-Akasaka 7UEC50LSII - 2 stroke single acting 7 cylinder 500 x 195 mm combustion engine 9.628 kW / 13.081 hp at 124,0 rpm Built: 1996 Builder: Akasaka DIesels Limited, Yaizu - Japan |
|
Propellers |
1x Screw propeller solid - aft at 124,0 rpm |
|
Boilers |
1x CHO Miura 13,50 m² - 7,0 bar 1x CHR Miura 180,00 m² - 11,0 bar |
|
Electric installations |
Power voltage: 450 V Lighting voltage: 110 V Frequency: 60 Hz |
|
Generators |
3x Diesel generatorsets each 1.000 kVA - 800 kW - 1.198 hp |
|
Emergency generator |
1x Diesel generatorset 40 kVA - 32 kW - 54 hp |
|
Holds / Hatches / Compartments |
4 / 4 / 15 |
|
Total capacity of holds |
14.730 m³ / 533.899 ft³ |
|
Floorspace |
5.915,1 m² |
|
Pallets |
4.500 |
|
Cooling sections |
8 |
|
Tank capacity |
Fuel oil: 1.325 t Marine diesel oil: 120 t |
|
Cargo gear |
1x Crane - SWL 40,0 t 8x Derricks - SWL 6,0 |
|
Manager |
Triton Schiffahrt GmbH & Co.KG Hafenstraße 6 26789 Leer Germany |
|
Operator |
Seatrade Reefer Chartering N.V. Noorderlaan 147 2030 Antwerpen Belgium |
|
Registered owner |
Eastern Bay Schifffahrtsgesellschaft mbH & Co. KG |
|
Renamed |
2020 Frio Galicia Republic of Panama, Panama city - Call sign: 3FPV3 Owner: Axelia Maritime S.A. |
|
Latest data adjustment |
10 July 2021 |
