Antwerpen 30 July 2014 |
|
Name |

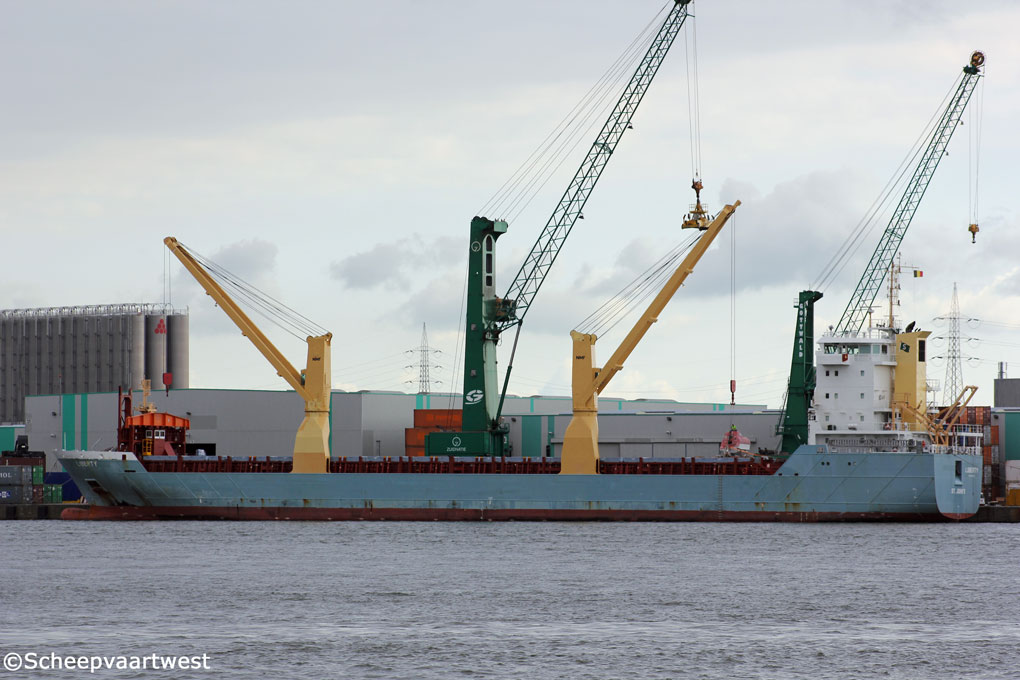

LIBERTY |
|
Previous names |
2011 Launch as: MCL Tunis 2011 - 07.2011 MCL Alger 07.2011 - 03.2013 Liberty 03.2013 - 09.2013 Industrial Karen |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Flush tween deck Boxhold |
|
IMO-number |
9513634 |
|
Call sign |
V2FI8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
Saint John's |
|
GT |
7.138 t |
|
DWT |
7.843,9 t |
|
NT |
2.266 t |
|
Number of 20ft containers |
444 |
|
Length |
130,18 m overall 122,00 m between perpendiculars 123,90 m registered |
|
Breadth |
16,50 m registered |
|
Draught |
7,85 m fully loaded |
|
Forecastle |
9,99 m |
|
Bridge |
99,11 m |
|
Poop |
13,70 m |
|
Depth |
11,50 m moulded |
|
Speed |
15,5 knots |
|
Built |
2011 |
|
Keel laid |
31.03.2009 |
|
Launch date |
10.07.2010 |
|
Date of completion |
19.01.2011 |
|
Builder |
Dongfang Shipbuilding Co., Ltd. |
|
Yard number |
DF80-2 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
3 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M25C - 4 stroke 9 cylinder 255 x 400 mm diesel engine - 2.970 kW at 750 rpm Year of manufacture: 2009 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 162 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 74,7 m² Year of manufacture: 2009 Manufacturer: Alfa Laval Aalborg A/S Marine & Offshore Systems Marine Boilers & Heaters |
|
Electric installations |
2x Plants each 400 V - 425 kVA 1x Plant 400 V - 750 kVA 1x Plant 400 V - 250 kVA 1x Plant 24 V - 30 Ah 2x Plants each 24 V - 50 Ah 2x Plants each 24 V - 50 Ah 1x Plant 24 V - 135 Ah 1x Plant 24 V - 200 Ah |
|
Shaft generator |
1x 750 kVA |
|
Generators |
2x Main diesel generatorsets each 425 kVA |
|
Emergency generator |
1x Diesel generatorset 250 kVA |
|
Batteries |
1x Battery for automation 200 Ah 1x Battery for UPS radio 135 Ah 2x Batteries for start auxiliary emergency engine each 50 Ah 1x Battery for UPS navigation 30 Ah |
|
Compressed air receivers |
2x Receivers each 300 litres - 30,0 bar 1x Receiver 5 litres - 30,0 bar 1x Receiver 500 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster 409 kW, forward |
|
Cargo hold capacity |
Tank top: 1.052,92 m² Tweendeck: 1.113,92 m² Hatchcover: 1.113,92 m² Total: 3.280,76 mé |
|
Cargo hold volume |
Grain/bale: 12.181 m³ |
|
Permissible loads |
Tanktop: 15 mt/m² Tweendeck: 3.0 mt/m² Hatchcover: 1.75 mt/m² |
|
Tank capacities |
HFO :420 m³ MGO: 62,9 m³ Ballast: 5.038,0 m³ Fresh Water: 60,0 m³ |
|
Anchor equipment |
3x Anchors weight each 3.780 kg Chain length: 522,50 m |
|
Cargo gear |
2x Cranes - SWL 80,0 t each |
|
Crew size |
15 |
|
Manager commercial |
Thorco Shipping A/S |
|
Manager technical |
Schepers Bereederung GmbH |
|
Owner |
Schepers Reederei |
|
Renamed |
12.2014 BBC Lisbon - Antigua & Barbuda, St. john's - Call sign: V2FI8 |
|
Latest data adjustment |
05 Marsh 2015 |
