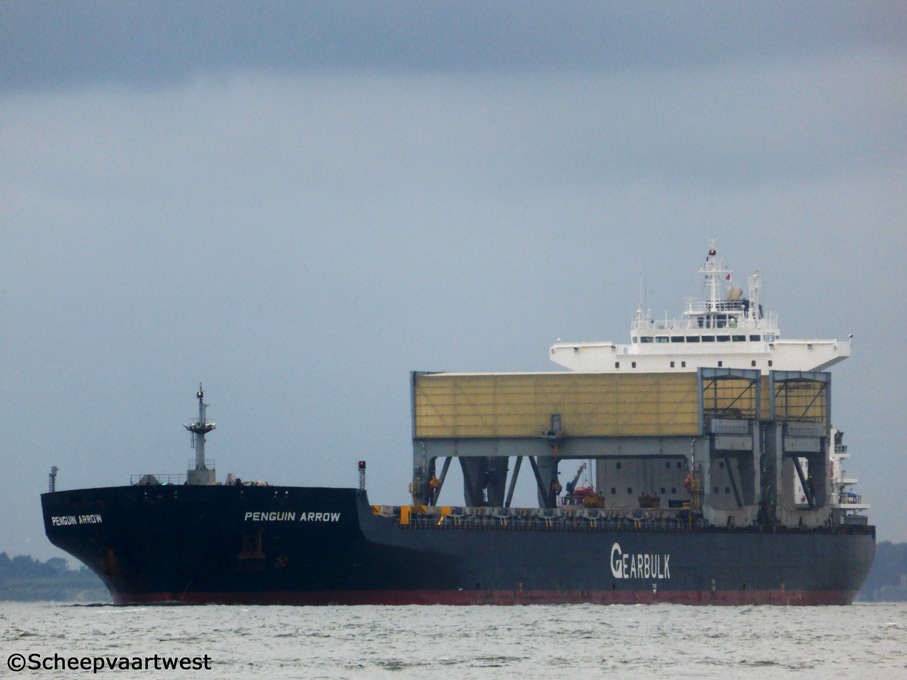

Pinguin Arrow 01

Westerschelde 19 June 2014

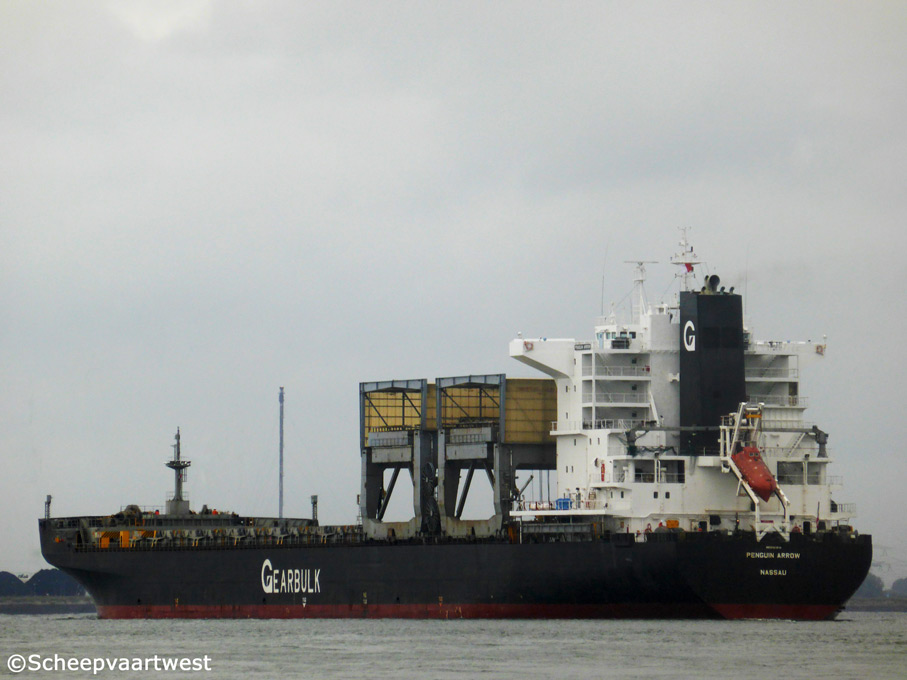

Pinguin Arrow 02
Westerschelde 19/06/02



Name

PINGUIN ARROW

Type

General cargo ship - Forest Product Carrier - Open hatch Grantry craned vessel

IMO-number

9151814

Call sign

C6PA6

Flag

Bahamas

Port of registry

Nassau

GT

36.008 t

DWT

Summer: 51.800 t

NT

14.195 t

Number of 20ft containers

1.788

Length

199,70 m overall

192,00 m between perpendiculars

Breadth

32,24 m extreme

Draught

13,52 m

Depth

19,30 m

Speed

14,5 knots

Built

1997

Keel laid

18.09.1996

Launch date

22.03.1997

Date of completion

31.07.1997

Builder

Dalian New Shipbuilding Heavy Industry
Dalian
China

Yard number

BC460-5

Hull material

Steel

Bulkheads

Transverse: 14

Main engine

1x MAN-B&W/Dalian 6L60MC - 6 cylinder diesel engine - 11.520 kW / 15.600 hp

Propellers

1

Boilers

1x Auxiliary boiler, composite AQ16

Builder: Aalborg

Generators

3x Ulstein KRG-5 main diesel generatorsets

Emergency generator

1x MAN D2866E diesel generatorset

Number of holds

10

Hold 1: 13,20 x 18,00 x 18,38 m

Hold 2: 13,20 x 23,00 x 18,88 m

Hold 3, 4, 5, 6, 7, 8: 13,20 x 27,40 x 18,88 m

Hold 9: 13,20 x 27,40 x 15,88 m

Hold 10: 13,20 x 23,00 x 14,88 m

Cargo hold capacity

Bales / grain: 2.166.105 ft³ / 61.337 m³

Number of Hatchways

10

1x Hatch: 13,20 x 18,00 m
1x Hatch: 13,20 x 23,00 m
7x Hatches: 13,20 x 27,40 m
1x Hatch: 13,20 x 23,00 m

Ventilation

61.200 m³/h

Dehumidification

10.000 m³/h

Ballast capacity

21.804,9 m³

Cargo gear

2x Gantry Cranes - SWL 40,0 t each

Grab: 2x 17 m³

Crew

30

Manager

Gearbulk Norway AS
Damsgårdsveien 165
5160 Laksevåg
Norway

Owner

Gearbulk Shipowing Ltd.

Previous owners

1997 - 2011 Kristian Gerhard Jebsen Skipsrederi AS

Latest data adjustment

04 February 2015
