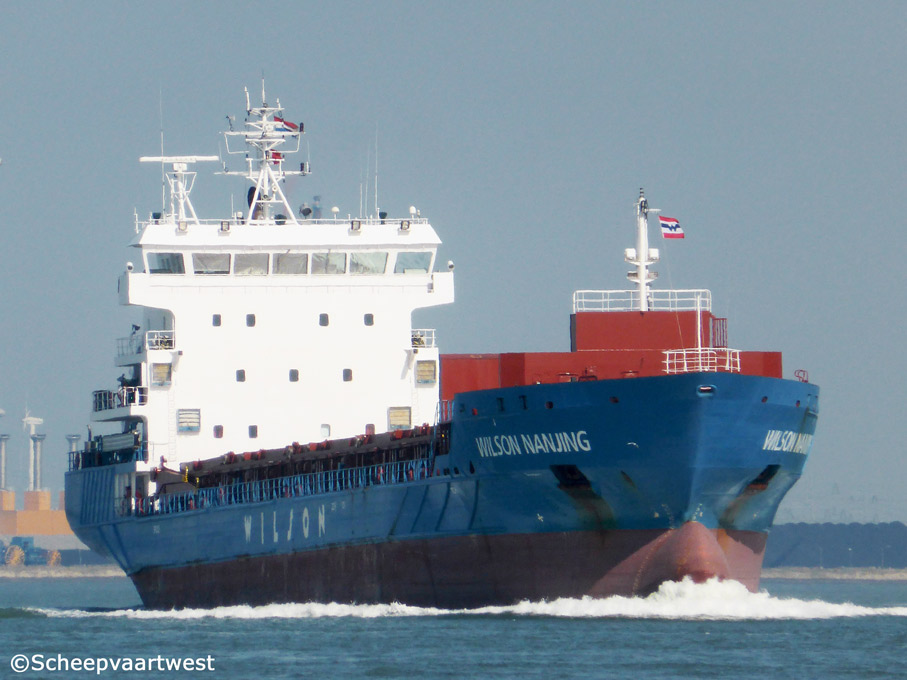

Wilson Nanjing 01

Westerschelde 17 May 2014



Name

WILSON NANJING

Type

Multi-purpose dry cargo ship - Strengthened for heavy cargo

IMO-number

9431018

Call sign

9HA2627

Flag

Malta

Port of registry

Valletta

GT

6.118 t

DWT

Summer: 8.357 t

Winter: 8.090 t

NT

2.966 t

Number of 20ft containers

60

Length

123,04 m overall

115,42 m between perpendiculars

Breadth

16,73 m extreme

16,51 m moulded

Draught

Summer: 7,40 m

Winter: 7,25 m

Distance keel to top antenna

32,32 m

Air draft

28,23 m

Depth

10,00 m moulded

Speed

Service: 12,7 knots

Built

2012

Keel laid

02.12.2008

Launch date

23.07.2011

Date of completion

04.01.2012

Builder

CSC - China Changjiang National Shipping Group Yichang Shipyard
Yichang
China

Yard number

2006B026

Hull material

Steel

Hull type

Double hull

Movable bulkhead

1x Movable bulkhead in hold no. 2, four different positions

Main engine

1x Wärtsilä 8L32 - 8 cylinder diesel engine 3.680 kW

Builder: Wärtsilä Finland Oy, Vaasa - Finland

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, exhaust heated EGH525V40

1x Thermal oil heater, oil fired TOH500V40-W

Bow thruster

1x 450 kW

Number of holds

2

Hold 1: 25,90 x 13,50 x 10,85 m

Hold 2: 49,70 x 13,50 x 10,85 m

Hold capacity

Grain:

Hold 1: 3.681 m³ / 129.995 ft³

Hold 2: 7.101 m³ / 250.772 m³

Bales:

Hold 1: 3.620 m³ / 127.840 ft³

Hold 2: 6.983 m³ / 246.605 ft³

Humber of hatches

2

Hatch 1: 25,90 x 13,50 m

Hatch 2: 49,70 x 13,50 m

Hatch type

Mac Gregor Folding type

Max. permitted loads

On deck: 3,5 t/m²

Tanktop: 15,0 t/m²

Tank capacities

Water ballast: 2.880,30 m³

Fuel main engine: 409,80 m³

Auxiliary engine fuel: 65,20 m³

Anchor equipment

Length: 495,00 m

Diameter: 46 mm

Crew

15

Manager

Wilson Shipmanagement AS
Bradbenken 1
Bergen
Norway

Operator

Wilson

Owner

Wilson
Bergen
Norway

Registered owner

Wilson Shipowning AS

Latest data adjustment

01 February 2015
