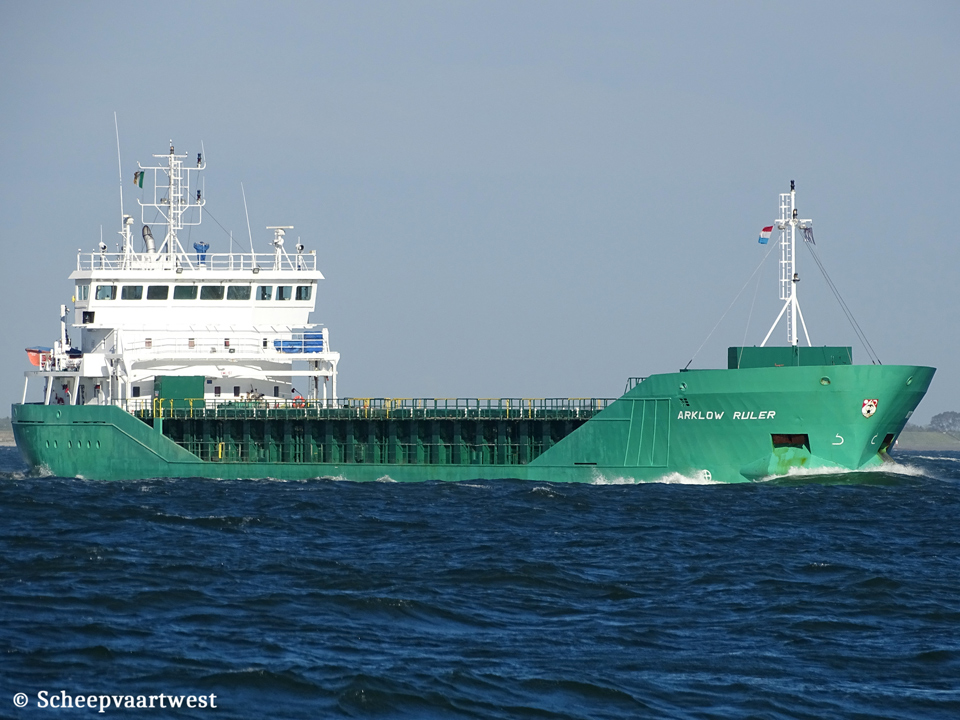

Arklow Ruler IMO 9344502 03

Westerschelde 20 June 2019

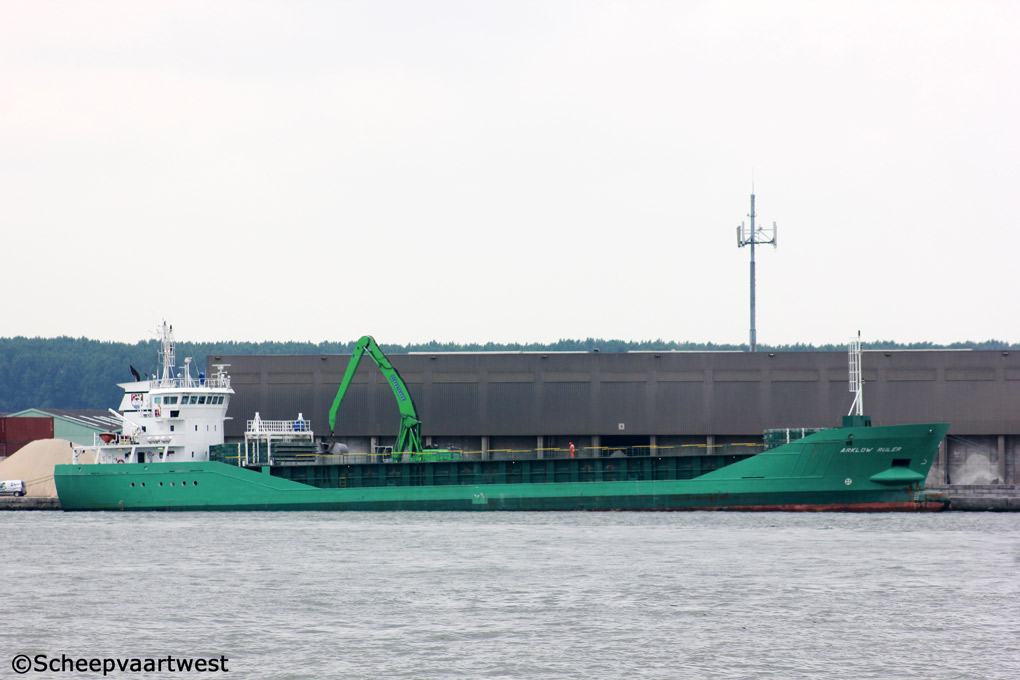

Arklow Ruler 01
Antwerpen 30/05/14









Name

ARKLOW RULER

Type

General dry cargo ship - heavy cargo

IMO-number

9344502

Call sign

EIXQ

Flag

Ireland

Port of registry

Arklow

GT

2.999 t

DWT

4.933 t

NT

1.639 t

Displacement

6.392 t

Number of 20ft containers

In hold: 102

On deck: 48

Total: 150

Length

89,99 m overall

84,98 m between perpendiculars

Breadth

14,00 m moulded

Draught

Summer: 6,10 m

Air draft

Min.: 20,60 m

Freeboard

1.286 mm

Depth

7,15 m moulded

Speed

11,5 knots

Built

2006

Keel laid

2005

Launch date

15/03/2006

Date of completion

26/04/2006

Builder

Barkmeijer Stroobos B.V.

Stroobos

The Netherlands

Yard number

309

Hull material

Steel

Watertight compartments

5

Movable bulkhead

2x May be placed in 9 positions for cargo separation

Continuous decks

1

Main engine

1x MaK 6M25 - 4 stroke single acting 6 cylinder 250 x 400 mm combustion engine 1.499 kW at 750 rpm

Built: 2005

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch - aft at 196 rpm

4 blades - Diameter 3.400 mm

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Shaft generator

1x Stamford HCM534D2 - 400 kVA - 320 kW

Generators

2x Sisu Valmet diesel 645BSBIG - 6 cylinder 111 x 145 mm main diesel engines connected with Stamford UCM274H generator each 210 kVA - 168 kW - 228 hp

Bow thruster

1x Veth electric bow thruster 250 kW

Number of holds

1

Dimension: 62,40 x 11,50 x 8,35 m

Total capacity of holds

Grain & Bale:

Incl. Bulkheads: 207.391 ft³ / 5.873 m³

Cargo hatchways

1

Dimension: 62,40 x 11,50 m

Hatch type

Roden Staal pontoon system

Max permitted loads

Maximum hatch top loading: 1,5 t/m²

Maximum tank top loading: 15,0 m/m²

Tank capacities

HFO: 150,52 m³

Gas oil: 36,42 m³

Fresh water: 88 m³

Lub oil: 8 m³

Ballast: 1.839 m³

Lifting equipment

1x Gantry crane

Manager

Arklow Shipping

North Quay

Arklow

Co. Wicklow

Ireland

Registered owner

Invermore Shipping Ltd.

Arklow

Ireland

Renamed

03/2021 FRI Gdansk

Norway, Kopervik - Call sign: LAMR8

Manager: Kopervik Ship Management Poland Sp Z.O.O., 80-958 Gdansk - Poland

Reg. Owner: Høgli AS , 4250 Kopervik - Norway

Latest data adjustment

04 April 2021
