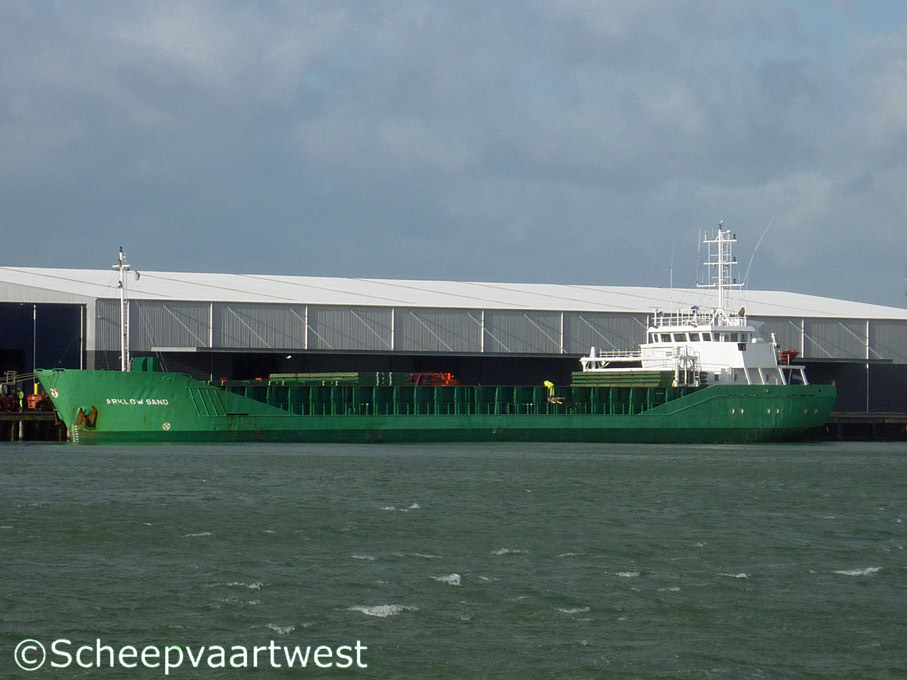

| Vlissingen, The Netherlands 07 December 2011 |
 |

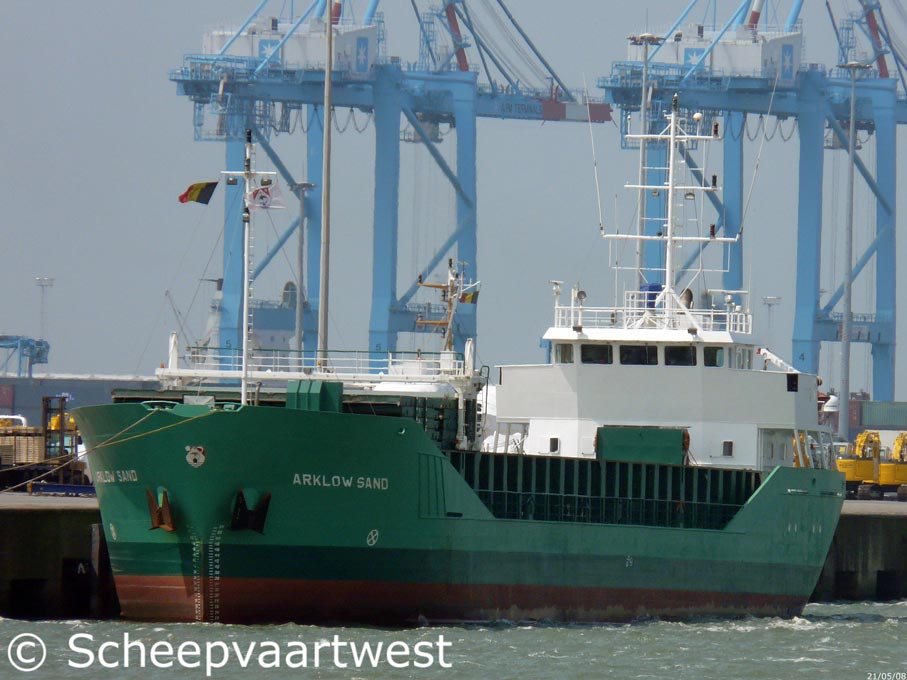

| Zeebrugge 21/05/08 |
|
Name |
ARKLOW SAND |
|
Type |
General Cargo - Heavy cargo |
|
IMO-number |
9163611 |
|
Call sign |
PDIO |
|
Flag |
The Netherlands |
|
Port of registry |
Zaandam |
|
GT |
2.316 t |
|
DWT |
3.211 t |
|
NT |
1.295 t |
|
Displacement |
4.351 t |
|
Number of 20ft containers |
On hatch: 40 In hold: 114 Total: 154 |
|
Length |
89,99 m overall 84,99 m between perpendiculars |
|
Breadth |
12,50 m moulded |
|
Draught |
Summer: 4,652 m |
|
Air draft |
Min: 19,80 m |
|
Freeboard |
1.180 mm |
|
Depth |
6,00 m moulded |
|
Speed |
10,5 knots |
|
Built |
1998 |
|
Keel laid |
03/04/1997 |
|
Launch date |
21/12/1997 |
|
Date of completion |
06/01/1998 |
|
Builder |
Barkmeijer Shipyard BV Stroobos The Netherlands |
|
Yard number |
281 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Movable bulkheads |
2x Portable bulkheads may be placed in 6 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M20 - 4 stoke single acting 8 cylinder 200 x 300 mm combustion engine 1.360 kW / 1.847 bhp at 1.000 rpm with Lohmann & Stolterfohl 4:1 reverse reduction gear Built: 1997 Manufacturer: Maschinenbau Kiel A.G., Kiel - Germany |
|
Number of screws |
1x Screw propeller solid - aft at 230 rpm |
|
Electrical installation |
Power voltage: 380 V Lighting voltage: 220 V Frequency: 50 Hz |
|
Generators |
2x Valmet 620DSG diesel engines each 110 kW connected with 2 Stamford UCM274 E23 generators each 112 kVA 50 Hz
|
|
Emergency generator |
1x Valmet 320DSG diesel engine 42 kW connected with Stamford UCM244 E47 generator 47,5 kVA 50 Hz |
|
Bow thruster |
1x 200 kW |
|
Number of cargo holds |
1 |
|
Cargo hold capacity |
Grain & bale: 4.723 m³ |
|
Hatch type |
Roden Staal pontoon system |
|
Max permitted loads |
On hatches: 1,6 t/m² Tanktop: 14,0 t/m² |
|
Tank capacities |
Fuel: 92,50 m³ Fresh water: 56,20 m³ Lub oil: 3,56 m³ Ballast: 1.586,3 m³ |
|
Crew |
7 |
|
Manager |
Arklow Shipping Arklow Ireland |
|
Owner as Completed |
Arklow Sg Ltd. Rotterdam The Netherlands |
|
Owner |
BBS Bulk 1 KS Arklow Shipping Arklow Ireland |
|
Renamed |
2012 - 2014 BBS Sand - The Netherlands, Zaandam - Call sign: PDIO 2004 - 2014 PS Sand - Bahamas, Nasau - Call sign: 2014 -2021 Fluvius Plym - Bahamas, Nassau - call sign: C6AZ5 2021 - 2022 Fluvius Plym, The Netherlands, Delfzijl - call sign: PEIP 2022 Fluvius Plym - Barbados, Bridgetown- - Call sign: 8PBN7 |
|
Latest data adjustment |
09 December 2022 |
