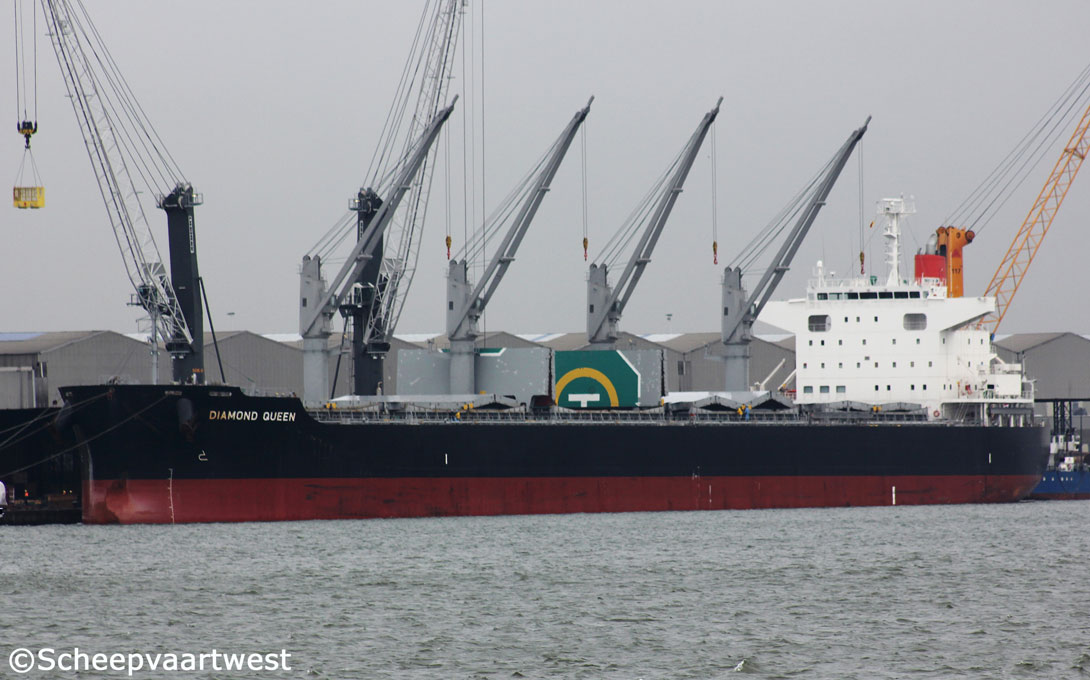

Diamond Queen 01

Antwerpen 24 October 2014

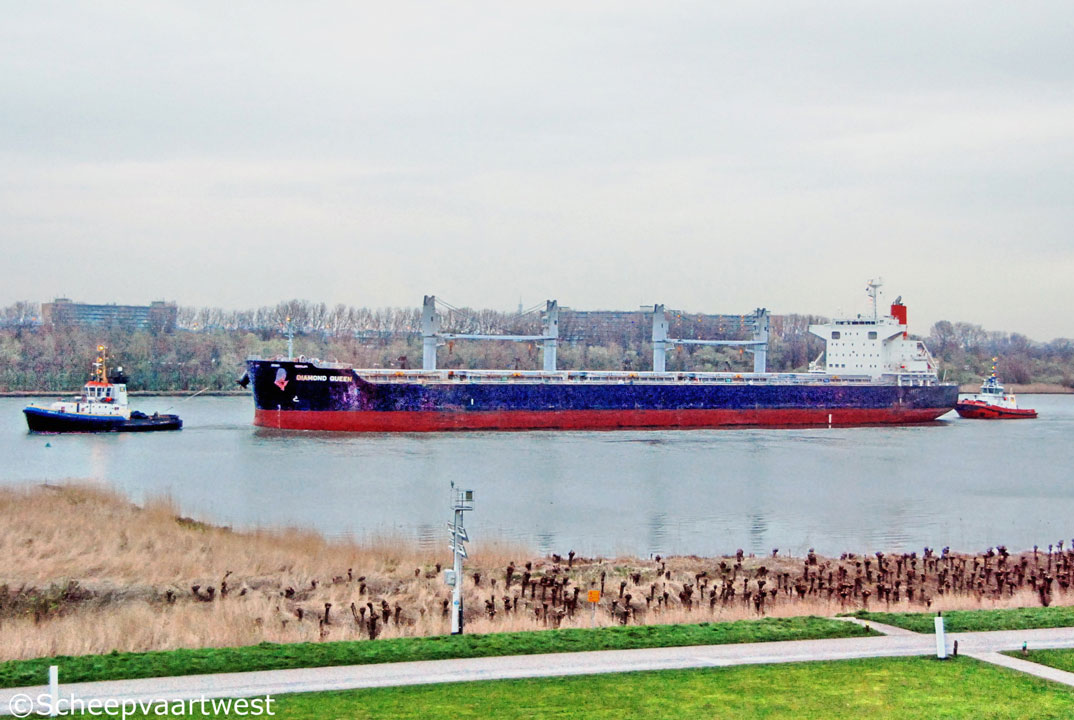

Diamond Queen 02
Spijkenisse 29/03/17



Name

DIAMOND QUEEN

Type

Bulk carrier - Strengthened for heavy cargo

IMO-number

9642136

Call sign

3EWM

Flag

Republic of Panama

Port of registry

Panama City

GT

34.800 t registered

DWT

Summer: 61.414 t

NT

20.209 t registered

Length

199,98 m overall

Breadth

32,24 m moulded

Draught

13,01 m

Moulded L x B x D

195,00 x 32,24 x 18,60 m

Registered L x B x D

195,39 x 32,24 x 18,60 m

Freeboard

5.640 mm

Depth

18,60 m moulded

Speed

15,6 knots

Built

2013

Keel laid

01.12.2010

Launch date

27.12.2012

Date of completion

20.02.2013

Builder

Shin Kasado Dockyard Co., Ltd.
Kudamatsu
Japan

Yard number

S-K037

Hull material

Steel

Main engine

1x 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine 8.450 kW at 108,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 500 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 8,0 bar

Evaporation: 2,10 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators 2.025 kVA

Cargo hold capacity

Grain: 77.674 m³

Tank capacities

Fuel oil: 2.565 m³

Fresh water: 669 m²

Water ballast: 18.074 m³

Manager

Misuga Kaiun Co., Ltd.
Tokyo
Japan

Owner

Taiyo Kaiun Kaisha
Imabari
Japan

Registered owner

Seavance Shipping S.A.

Latest data adjustment

25 November 2014
