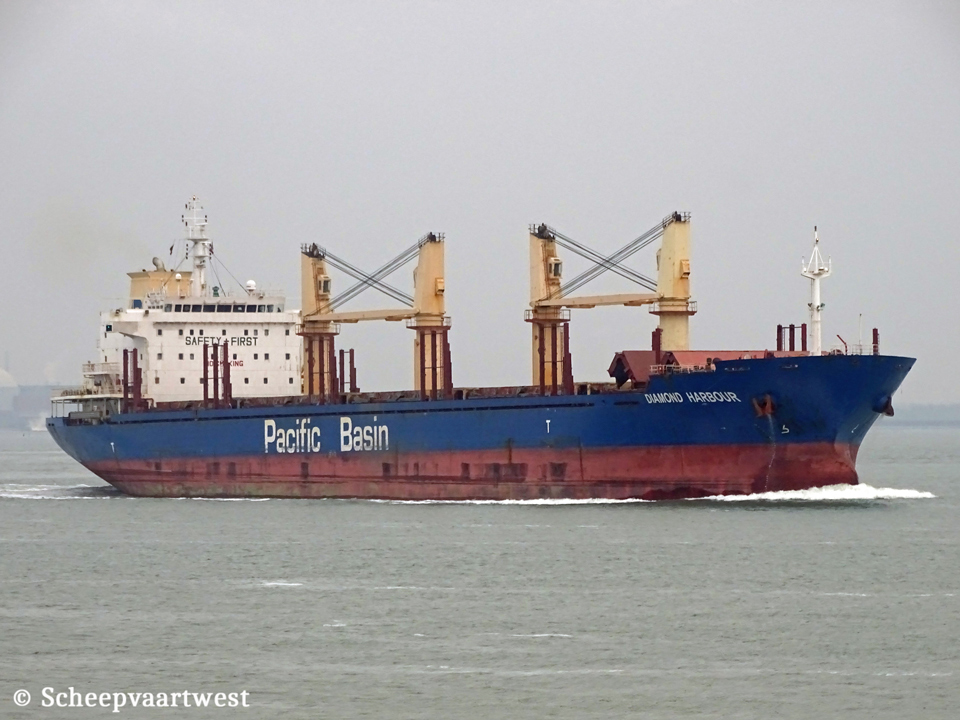

Diamond Harbour IMO 9377987 01
Westerschelde 14 December 2018

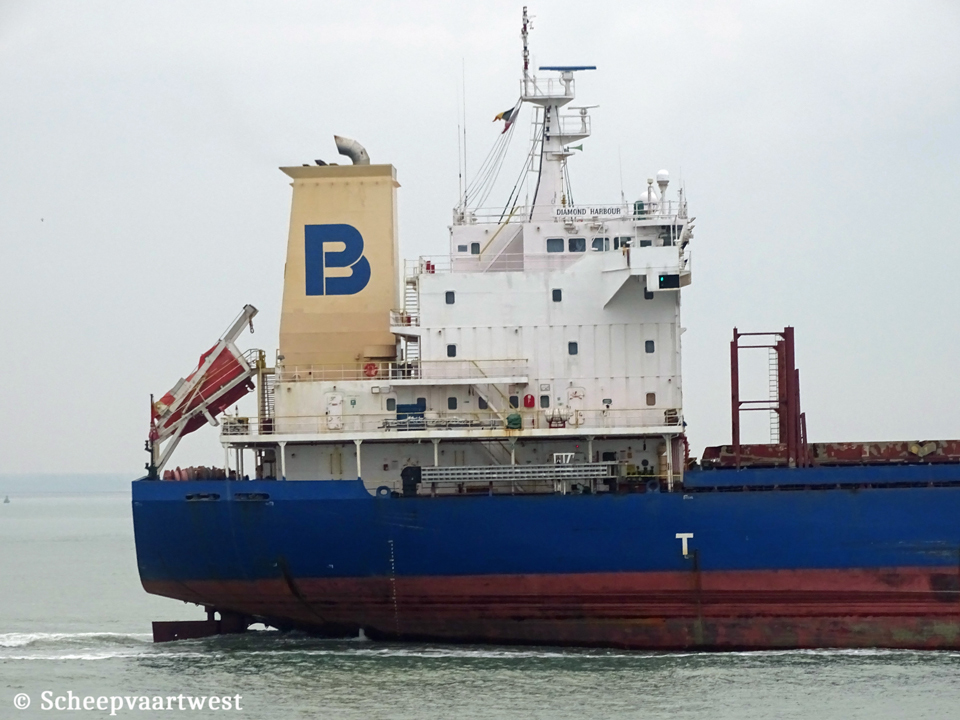

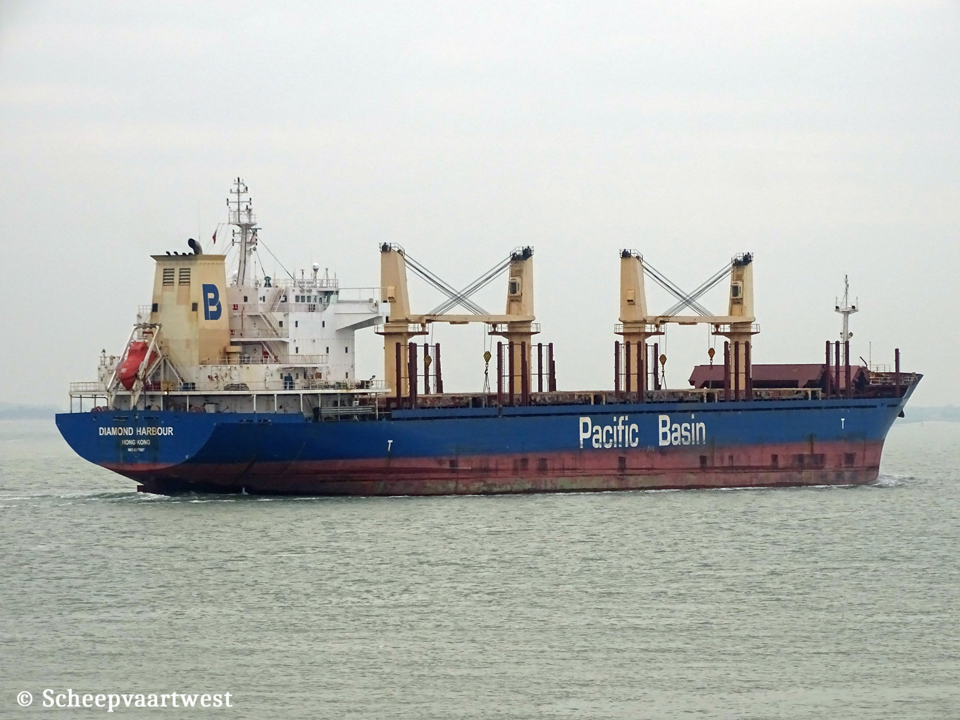

Diamond Harbour IMO 9377987 03   Diamond Harbour IMO 9377987 02
Westerschelde 14/12/18   Westerschelde 14/12/18













Name

DIAMOND HARBOUR

Type

Bulk carrier - Strengthened for heavy cargoes

IMO-number

9377987

Call sign

VREI6

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

20.987 t

DWT

Summer: 33.171 t

NT

11.521 t

Length

179,88 m overall

171,50 m between perpendicular

Breadth

28,42 m extreme

Draught

Summer: 10,21 m

Keel to mast end

42,10 m

Depth

14,13 m

Speed

Service: 13,7 knots

Max: 15,2 knots

Built

2008

Keel laid

30/12/2007

Date of completion

28/08/2008

Builder

Jiangmen Nanyang Ship Engineering Co. Ltd.

Jiangmen

China

Yard number

103

Hull material

Steel

Continuous decks

1

Main engine

1x MAN-B&W/STX 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine Mcr 6.480 kW / 8.810 hp at 136,0 rpm

Manufacturer: STX Engine Co., Ltd. - South Korea

Propellers

1x Fixed pitch mono-block propeller - aft at 136,0 rpm

Boilers

1x Auxiliary boiler composite

Generators

3x MAN 5L16/24 - 4 stroke 5 cylinder 160 x 240 mm diesel engines each Mcr 500 kW connected with generators each 440 kW / 450 Volt 60 Hz

Emergency generator

1x 6CT8.3DM diesel generatorset

Number of holds

5

Cargo hold capacity

Grain: 42.565 m³

Bale: 40.558 m³

Number of hatches

5

Tank capacities

Ballast: 20.353 m³

Anchor equipment

Length: 605,00 m

Diameter: 73 mm

Cargo gear

4x Deck cranes - SWL 30,5 t each

ISM & commercial manager

Pacific Basin Shipping HK Ltd.

31st Floor, One Island South, 2, Heung Yip Road, Wong Chuk Hang

Hong Kong

China

Registered owner

Bright Cove Ltd.

Care of Pacific Basin Shipping (HK) Ltd , 31st Floor, One Island South, 2, Heung Yip Road, Wong Chuk Hang

Hong Kong

China

Latest data adjustment

16 December 2021
