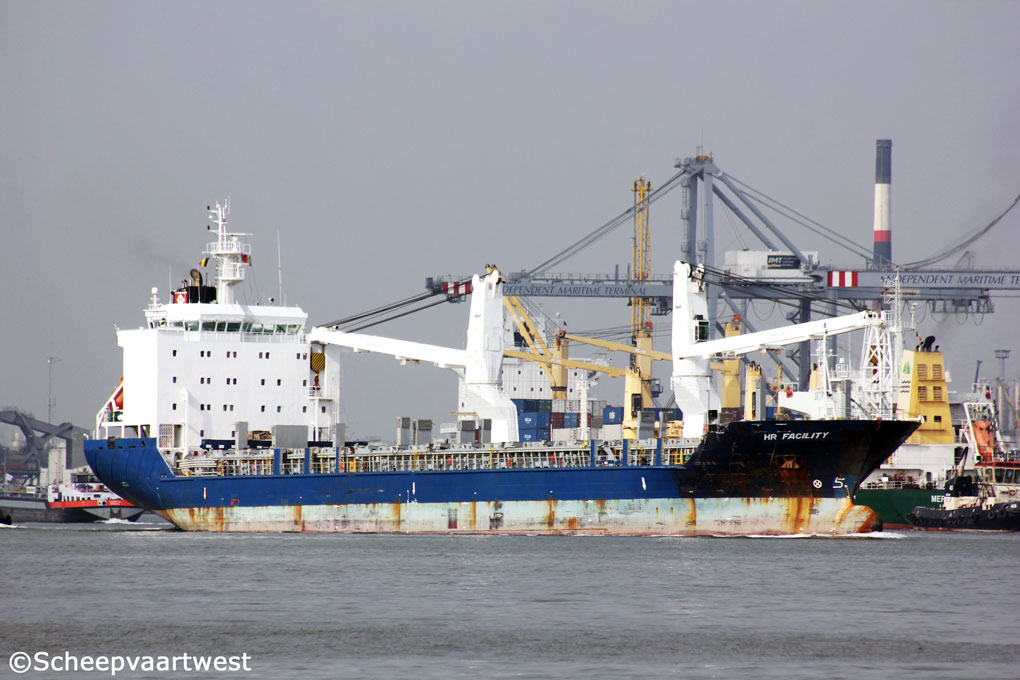

Antwerpen 03 October 2014 |
|
Name |
HR FACILITY |
|
Previous names |
2009 - 10.04.2011 Beluga Facility |
|
Type |
Multi-purpose heavy lifter dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo - equipped for the carriage of dangerous goods |
|
IMO-number |
9437311 |
|
Call sign |
D5AH5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
9.611 t |
|
DWT |
Summer: 12.780 t |
|
NT |
4.260 t |
|
Container capacity |
655 TEU + 4 FEU or 394 FUE + 81 FEU |
|
Container capacity 14t |
528 TEU at 14 t homogeneously loaded |
|
Reefer plug |
50 reefer plugs on deck |
|
Length |
138,93 m overall 130,71 m registered |
|
Breadth |
21,00 m registered |
|
Draught |
Summer: 8,00 m |
|
Height above keel |
40,09 m |
|
Forecastle |
9,96 m |
|
Poop |
12,60 m |
|
Depth to main deck |
11,00 m moulded |
|
Speed |
14,4 knots Max.: 5,0 knots |
|
Built |
2009 |
|
Keel laid |
05.05.2008 |
|
Launch date |
30.10.2008 |
|
Date of completion |
25.11.2009 |
|
Builder |
China Changjiang Shipping Group Qingshan Shipyard |
|
Yard number |
QS20060310 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Mak 6M43C - 4 stroke 6 cylinder 430 x 610 mm diesel engine - 5.400 kW at 500 rpm Year of manufacture: 2009 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 132 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bat Heating surface: 88,6 m² 1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 39,0 m² Year of manufacture: 2008 Manufacturer: Alfa Laval Aalborg B.V. |
|
Electric installations |
3x Plants each 400 V - 494 kVA 1x Plant 400 V - 875 kVA 1x Plant 400 V - 124 kVA 2x Plants each2 4 V - 80 Ah 6x Plants each 24 V - 120 Ah 2x Plants each 24 V - 135 Ah 2x Plants each 24 V - 200 Ah 2x Plants each 24 V - 200 Ah |
|
Shaft generator |
1x 875 kVA |
|
Generators |
3x Main diesel generatorsets each 494 kVA |
|
Emergency generator |
1x Diesel generatorset 124 kVA |
|
Batteries |
2x Batteries for automation each 200 Ah 2x Batteries for UPS navigation each 200 Ah 2x Batteries for UPS radio each 135 Ah 6x Batteries for start auxiliary engine each 120 Ah 2x Batteries for start emergency engine each 80 Ah |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 40 litres - 30,0 bar 1x Receiver 1.000 litres - 10,0 bar 1x Receiver 250 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 500 kW, forward |
|
Cargo hold capacity |
15.952 m³ / 563.340 ft³ |
|
Floor space under deck |
2.810 m² / 30.247 ft² |
|
Floor space on deck |
1.480 m² / 15.931 ft² |
|
Deck strengths |
16,0 t/m² on tanktop 2,50 t/m² on tweendeck in hold 1 and hold 2 (upper position) 4,00 t/m² on tweendeck in hold 2 (middle and lower position) and hold 3 1,75 t/m² on hatch covers |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Chain length: 550,00 m |
|
Cargo gear |
2x NMF cranes situated portside SWL 180 t capacity each 360 t capacity combined |
|
Crew size |
20 |
|
Manager |
Hammonia Reederei GmbH & Co. KG |
|
Registered owner |
MS "HAMMONIA FACILITY" Schifffahrts GmbH & Co. KG |
|
Renamed |
2015 AAB Felina Republic of Panama, Panama City - Call sign: HPKM |
|
Latest data adjustment |
05 June 2017 |
