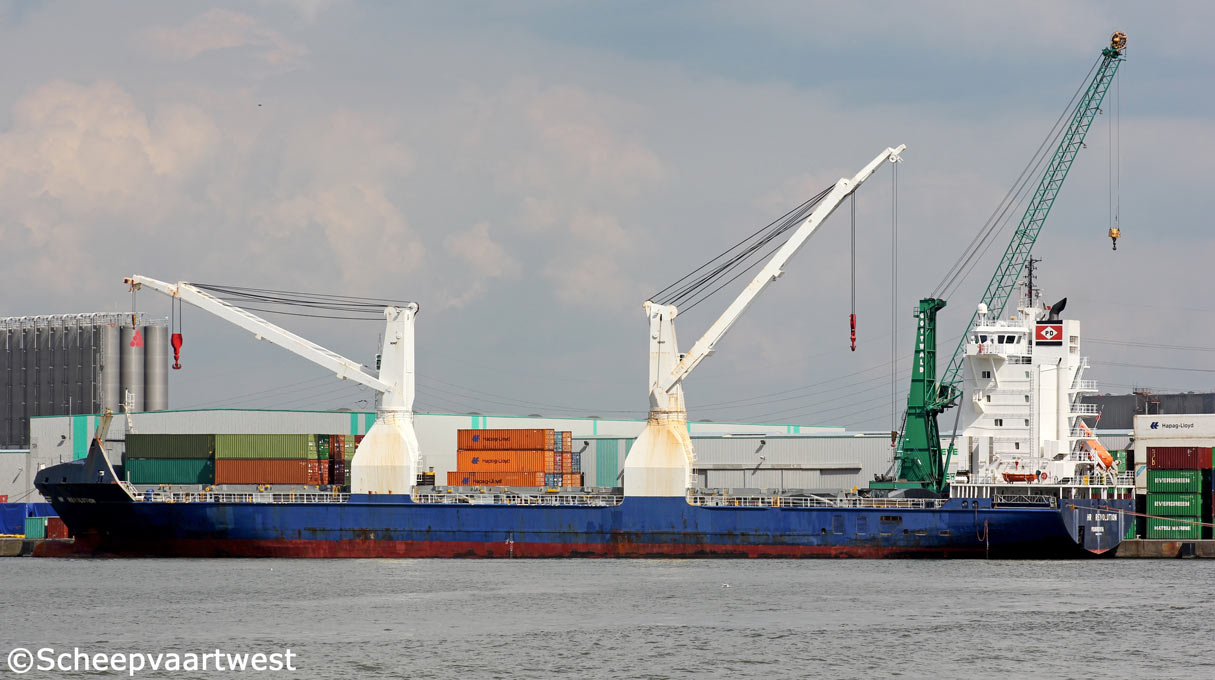

Antwerpen 21 August 2014 |
|
Name |
HR REVOLUTION |
|
Previous names |
2005 - 03.2011 Beluga Revolution - Beluga Shipping GmbH, Elsfleth - Germany |
|
Type |
Heavy lift multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9267742 |
|
Call sign |
D5AH2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
8.963 t |
|
DWT |
Summer: 10.581 t |
|
NT |
4.522 t |
|
Number of 20ft containers |
In hold: 252 On deck: 295 Total: 547 |
|
Number of 40ft containers |
242 FEU + 50 TEU |
|
Length |
134,61 m overall 125,67 m registered |
|
Breadth |
21,50 m registered |
|
Draught |
7,95 m |
|
Forecastle |
8,92 m |
|
Poop |
9,60 m |
|
Bridge |
90,45 m |
|
Depth |
9,30 m moulded |
|
Speed |
15,9 knots Eco: 13,0 knots |
|
Built |
2005 |
|
Keel laid |
11.06.2002 |
|
Launch date |
06.07.2004 |
|
Date of completion |
14.03.2005 |
|
Builder casco |
DMHI - Daewoo Mangalia heavy industry Romania Yard number: 4038 |
|
Builder completion |
Volharding Yard number: 549 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M43 - 4 stroke 8 cylinder 430 x 610 mm diesel engine - 7.200 kW at 500 rpm Year of manufacture: 2004 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 140,0 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 13,0 bar Heating surface: 23,5 m² Year of manufacture: 2003 Manufacturer: Apparate- und Kesselbau AKB GmbH 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 83,0 m² Manufacturer: Aalborg Boiler Production |
|
Electric installations |
2x Plants each 440/230 V - 438 kVA 1x Plant 440 V - 812,5 kVA 1x Plant 440 V - 438 kVA |
|
Shaft generator |
1x 812,5 kVA |
|
Generators |
2x Main diesel generatorsets each 438 kVA |
|
Emergency generator |
1x Diesel generatorset 438 kVA |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 650 kW, forward |
|
Number of holds |
2 Hold 1: 20,25 x 13,00/7,80/5,20 m Hold 2: 58,50 x 16,90 m Hold height: 11,89 m |
|
Cargo hold capacity |
Bales: 13.875 m³ / 489.995 ft³ Grain: 14.951 m³ / 527.994 ft³ |
|
Number of hatches |
2 Hatch 1: 25,50 x 16,90 / 13,00 m Hatch 2: 57,98 x 16,90 m |
|
Hatch cover type |
Hydraulic folding and pontoon |
|
Permissible loads |
Tanktop: 15,0 t/m² Twendeck hatch: 3,0 t/m² Weatherdeck hatch: 3,5 t/m² |
|
Ventilation |
6x Air changes per hour |
|
Tank capacities |
HFO: 650 m³ MGO: 104 m³ Fresh water: 75 m³ |
|
Anchor equipment |
3x Anchors weight each 5.250 kg Chain length: 577,50 m |
|
Cargo gear |
2x Deck cranes - SWL 250,0t each 500 t combination |
|
Manager |
Hammonia Reederei GmbH & Co. KG |
|
Operator |
Peter Döhle Schiffahrts KG |
|
Registered owner |
MS "HAMMONIA REVOLUTION" Schifffahrts GmbH & Co. KG |
|
Latest data adjustment |
06 October 2014 |
