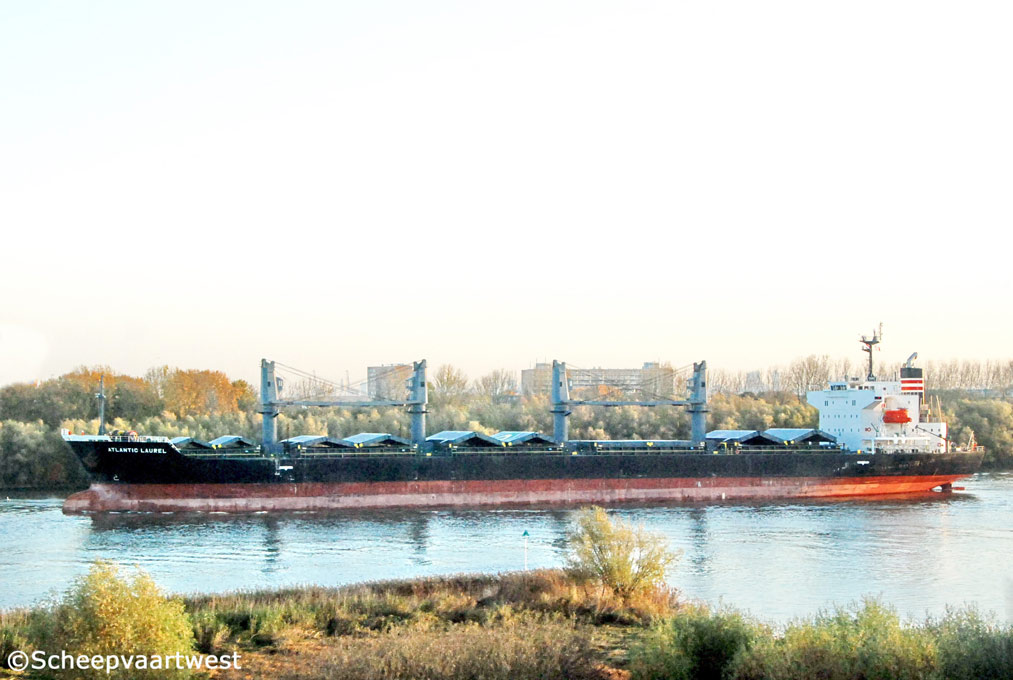

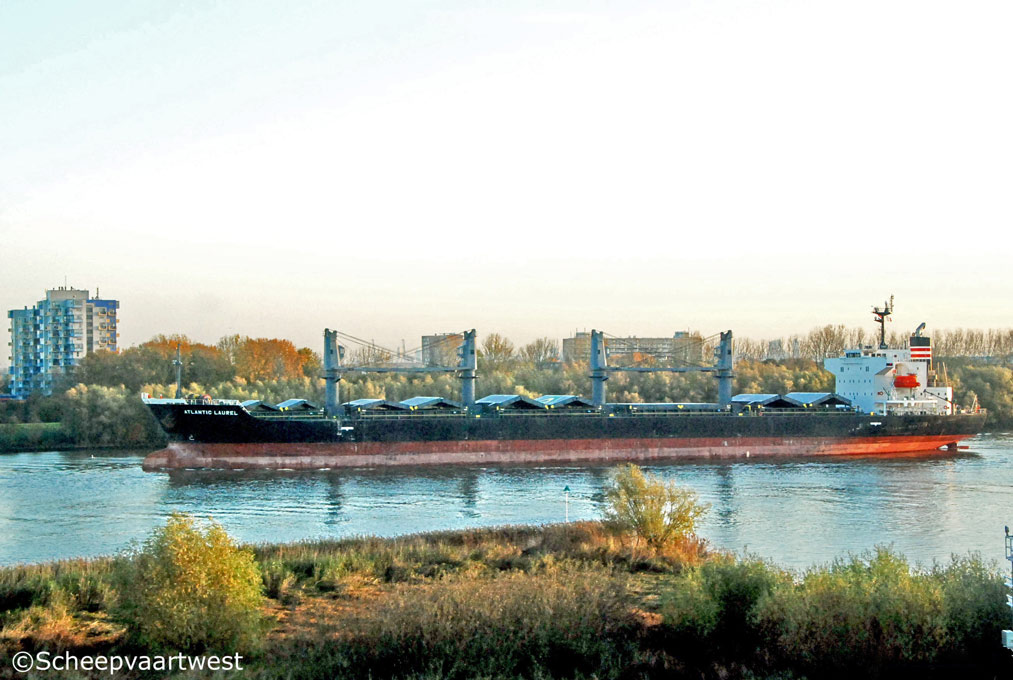

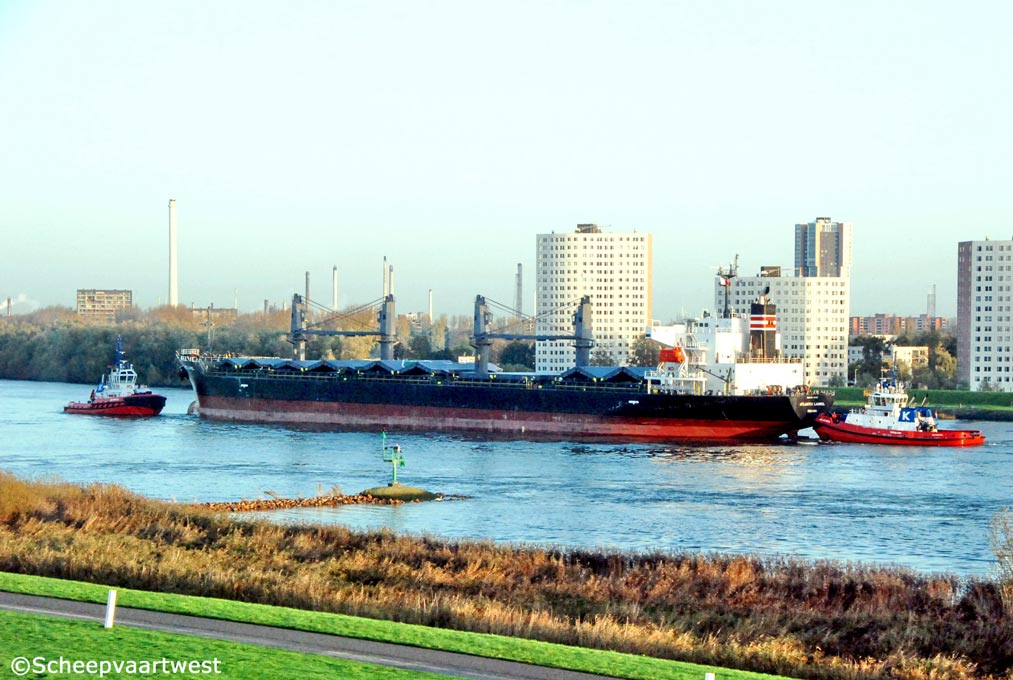

Spijkenisse, The netherlands 01 November 2014 |
 |
 |
|
| Spijkenisse 01/11/14 | Spijkenisse 01/11/14 |
|
Name |
ATLANTIC LAUREL |
|
Type |
Bulk carrier |
|
IMO-number |
9494747 |
|
Call sign |
3FGO3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
20.243 t registered |
|
DWT |
Summer: 33.271 t |
|
NT |
10.566 t registered |
|
Length |
178,41 m overall |
|
Breadth |
29,40 m moulded |
|
Draught |
Summer: 9,77 m |
|
Moulded L x B x D |
169,70 x 29,40 x 13,90 m |
|
Registered L x B x D |
170,57 x 29,40 x 13,90 m |
|
Freeboard |
4.176 mm |
|
Depth |
13,90 m moulded |
|
Speed |
Max.: 16,1 knots Service: 14,4 knots |
|
Built |
2012 |
|
Keel laid |
28.12.2010 |
|
Launch date |
17.01.2012 |
|
Date of completion |
08.03.2012 |
|
Builder |
The Hakodate Dock Co., Ltd. |
|
Yard number |
848 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi 6UEC45LSE - 2 stroke single acting 6 cylinder 450 x1.810 mm diesel engine - 6.840 kW / 9.300 hp at 129,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 430 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 129,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 1,81 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x Generators - 1.204 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: 41.987 m³ Bales: 40.637 m³ |
|
Tank capacities |
Fuel oil: 1.435 m³ Fresh water: 211 m³ Water ballast 14.108 m³ |
|
Cargo gear |
4x Cranes - SWL 30,0 t each |
|
Manager |
NYK Shipmanagement Pte. Ltd. |
|
Owner |
NYK Bulkship Atlantic N.V. |
|
Latest data adjustment |
14 November 2014 |
