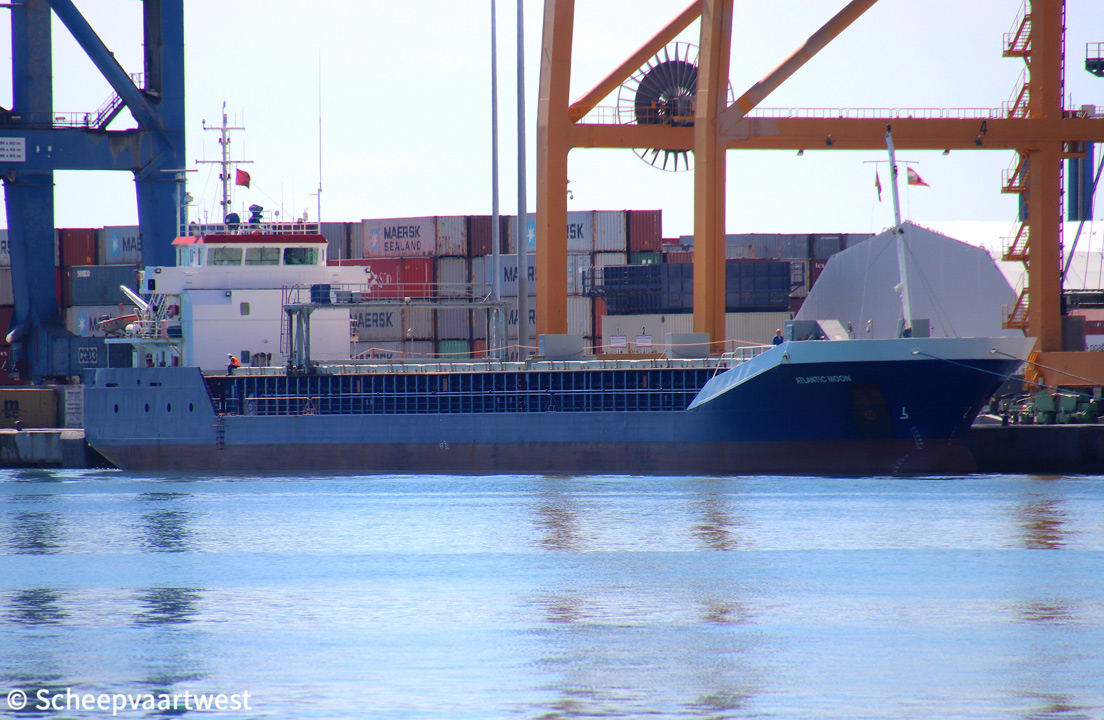

| Malaga, Spian 11 March 2020 |
 |

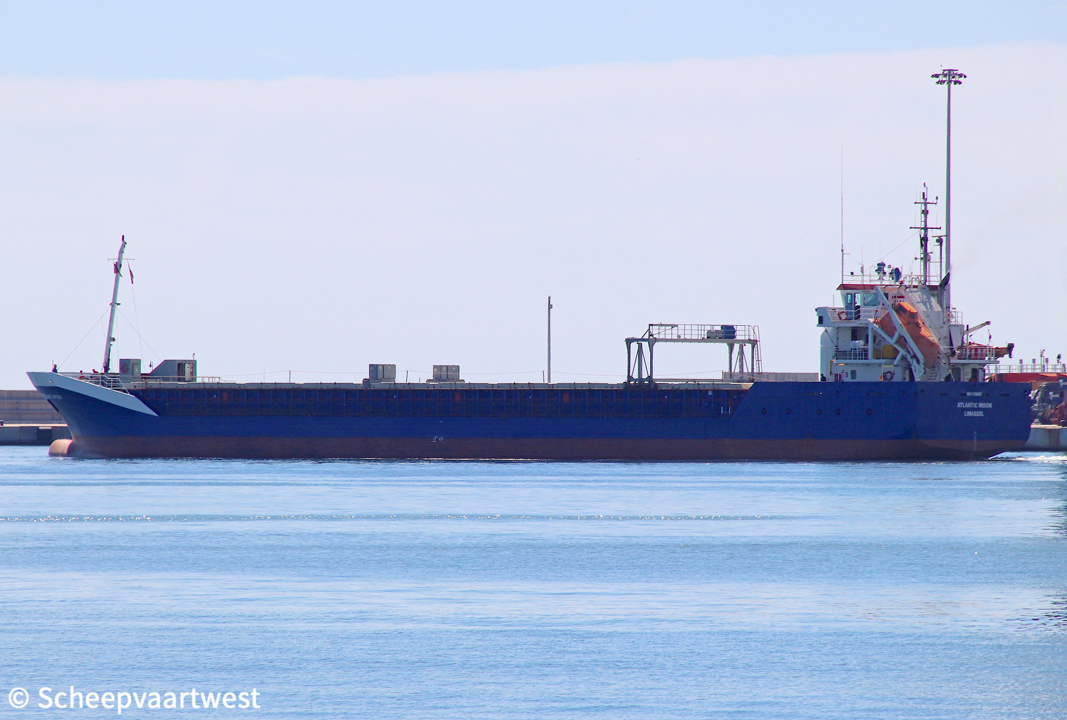

| Malaga, Spain 11/03/20 |
|
Name |
ATLANTIC MOON |
|
Previous names |
07/2002 - 06/2007 Oosterscheldeborg |
|
Type |
General cargo ship - Grainfitted - Strengthened for heavy cargo |
|
IMO-number |
9259032 |
|
Call sign |
C4VL2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
07/2002 - 06/2007 The Netherlands, Delfzijl - Call sign: PBHB |
|
GT |
3.164 t |
|
DWT |
Summer: 5.000 t |
|
DWCC |
Summer: 4.750 t Winter: 4.650 t |
|
NT |
1.833 t |
|
Number of 20ft containers |
176 |
|
Length |
95,32 m overall 91,19 m between perpendiculars |
|
Breadth |
13,35 m moulded |
|
Draught |
Summer: 5,71 m Winter: 5,60 m |
|
Air draft |
22,00 m |
|
Depth |
7,40 m moulded |
|
Speed |
Max: 14,5 knots |
|
Built |
2002 |
|
Launch date |
21/06/2002 |
|
Delivery date |
19/07/2002 |
|
Builder |
Scheepswerf Peters B.V. Kampen The Netherlands |
|
Yard number |
801 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Movable bulkheads |
1x Movable bulkhead in hold 2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6L26A - 4 stroke single acting 6 cylinder 260 x 320 mm combustion engine 1.950 kW / 2.650 bhp Builder: Wärtsilä Diesel Oy, Turku - Finland |
|
Propellers |
1x Fixed propeller |
|
Shaft generator |
Yes |
|
Generators |
1x Generatorset 348 kW 1x Generatorset 166 kW |
|
Bow thruster |
1x 250 kW |
|
Number of holds |
2x Box - Steelfloored Hold 1: 25,00 x 11,20 x 8,70 m Hold 2: 37,50 x 11,20 x 8,70 m |
|
Cargo hold capacity |
Bale/grain: 215.000 ft³ |
|
Hold ventilation |
Electrical ventilated - 6 Air-changes p/h basis empty hold |
|
Number of hatches |
2 Hatch 1: 25,00 x 11,20 m Hatch 2: 37,50 x 11,20 m |
|
Hatches type |
Pontoon |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch covers: 1,6 t/m² |
|
Tank capacities |
IFO: 220 t Gas oil: 33 m³ Fresh water: 43 t Water ballast: 1.788 t |
|
Crew size |
7 |
|
Manager |
Oost Atlantic Lijn B.V. Tarwezand 2 3195 KS Pernis (Rotterdam) The Netherlands |
|
Previous managers |
2002 - 06/2007 Wagenborg Shipping B.V., Delfzijl - The Netherlands |
|
Registered owner |
Atlantic Surprise Shipping Corporation Monrovia Liberia |
|
Previous names & owners |
2002 - 06/2007 Oosterscheldeborg - Rederij H.J. Smith, Delfzijl - The Netherlands |
|
Latest data adjustment |
12 June 2020 |
