RMS Bremen 04

Westerschelde 02 April 2016

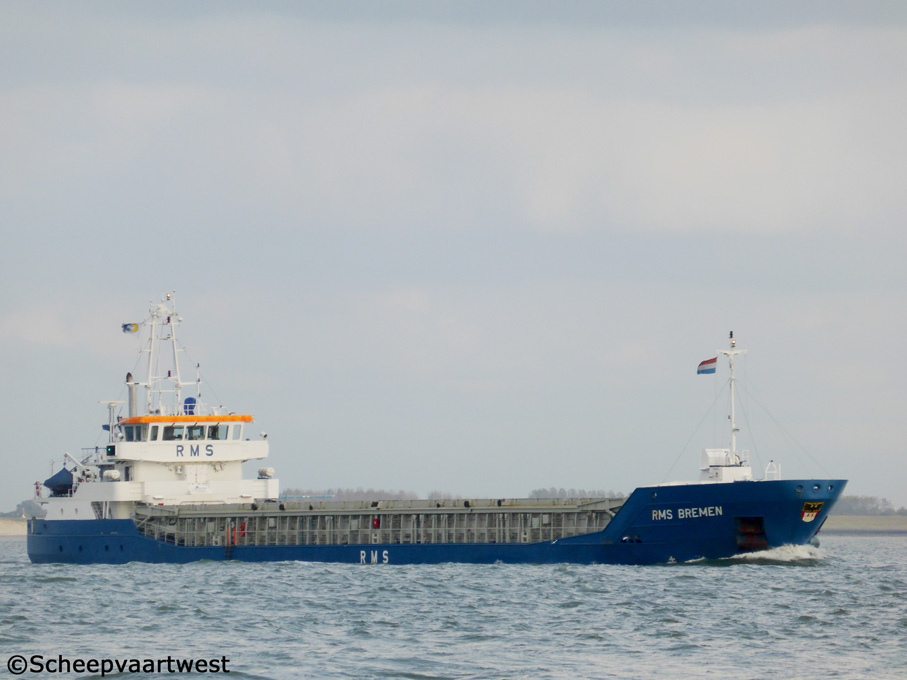

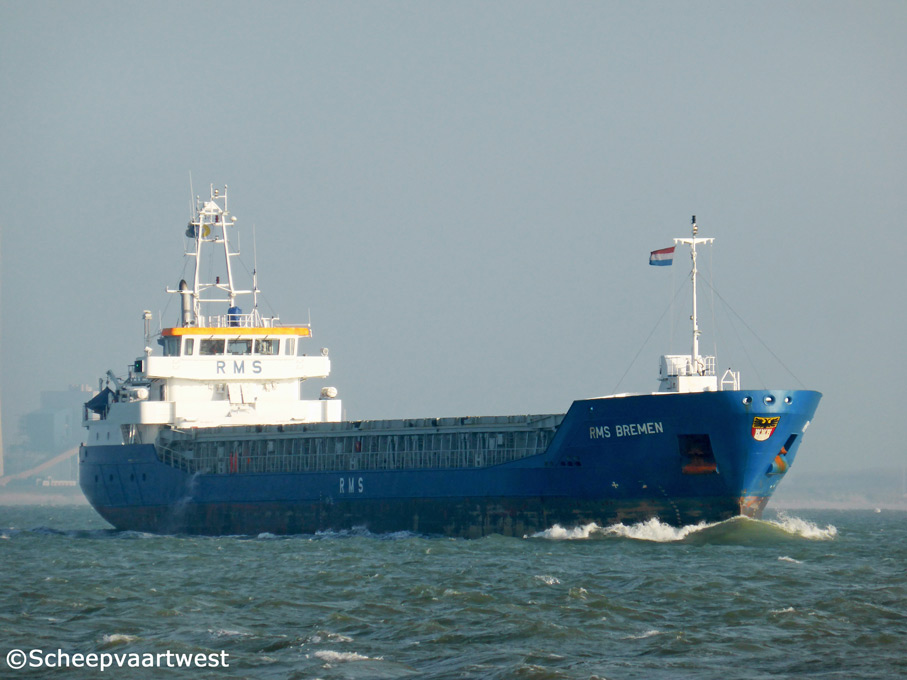

RMS Bremen 01   RMS Bremen 02
17/10/14   28/10/14



Name

RMS BREMEN

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo

Gearless singledecker

IMO-number

9617301

Call sign

5BLX3

Flag

Cyprus

Port of registry

Limassol

GT

2.589 t

DWT

3.812 t

NT

1.386 t

Length

89,88 m overall

84,43 m registered

Breadth

12,80 m registered

Draught

5,55 m

Air draft

15,85 m

Depth

7,10 m to main deck

Speed

12,0 knots

Built

2012

Keel laid

19.12.2008

Launch date

02.09.2011

Date of completion

02.02.2012

Builder

Slovenske Lodenice Komarno a.s.
Rolnickej Skoly 1519
945 01 Komarno
Slovak Republic

Yard number

3802

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom

Watertight bulkheads

4

Movable bulkhead

3

Continuous decks

1

Main engine

1x MaK 8M20C - 4 stroke 8 cylinder 200 x 300 mm diesel engine - 1.520 kW at 1.000 rpm

Year of manufacture: 2008

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 245 rpm

Boilers

1x Water heater, oil fired - 6,0 bar

Year of manufacture: 2010

Manufacturer: ACV International N.V.
Kerkplein 39
1601 Ruisbroek
Belgium

Electric installations

2x Plants each 400 V - 230 kVA

1x Plant 400 V - 135 kVA

1x Plant 24 V - 176 Ah

1x Plant 24 V - 176 Ah

2x Plants each 24 V - 580 Ah

2x Plants each 24 V - 720 Ah

2x Plants each 24 V - 900 Ah

Generators

2x Volvo Penta D9MG main diesel generatorsets each 230 kVA

Emergency generator

1x Volvo Penta diesel generatorset 135 kVA

Batteries

2x Batteries for start auxiliary engine each 900 Ah

2x Batteries for start emergency engine each 580 Ah

2x Batteries for automation each 360 Ah

2x Batteries for automation each 360 Ah

1x Battery for UPS radio 176 Ah

1x Battery for UPS navigation 176 Ah

Compressed air receivers

2x Receivers each 125 litres - 30,0 bar

Bow thruster

1x Transverse thruster 185 kW, forward

Cargo capacity

Boxshaped cargo hold fitted with three bulk heads

Hold (grain) with grain bulk heads 4.750 m³ / 167.667 ft³

Hold (bale) with grain bulk heads 4.636 m³ / 167.173 ft³

Dimensions cargo hold L x W x H : 57,85 x 10,20 x 8,15 m

Square meter capacity tanktop / hatch 15,00/1,56 mts

3 pcs.
Moveable grain bulkheads with ten stowage positions

Clear height in hold

8,00 m

Hatches

57,85 x 10,20 m

Hatch type

Steel hatches maker TTS Bremen, hydraulically driven (crocodile)

Air change

6 times

Tank capacities

Ballast: 1.457,00 m³

HFO: 193,50 m³

MGO: 91,10 m³

Potable water: 52,00 m³

Lubrication oil: 13,90 m³

Anchor equipment

3x Anchors weight each 2.280 kg

Chain length: 467,50 m

Crew size

8

Manager

Hermann Lohmann Bereederungen GmbH & Co. KG
Fleetwinkel 6
49733 Haren/Ems
Federal Republic of Germany

Registered owner

Rhenus Schiffinvest GmbH & Co. KG MS "BREMEN"
Krausstr. 1a
47119 Duisburg
Federal Republic of Germany

Latest data adjustment

04 November 2014
