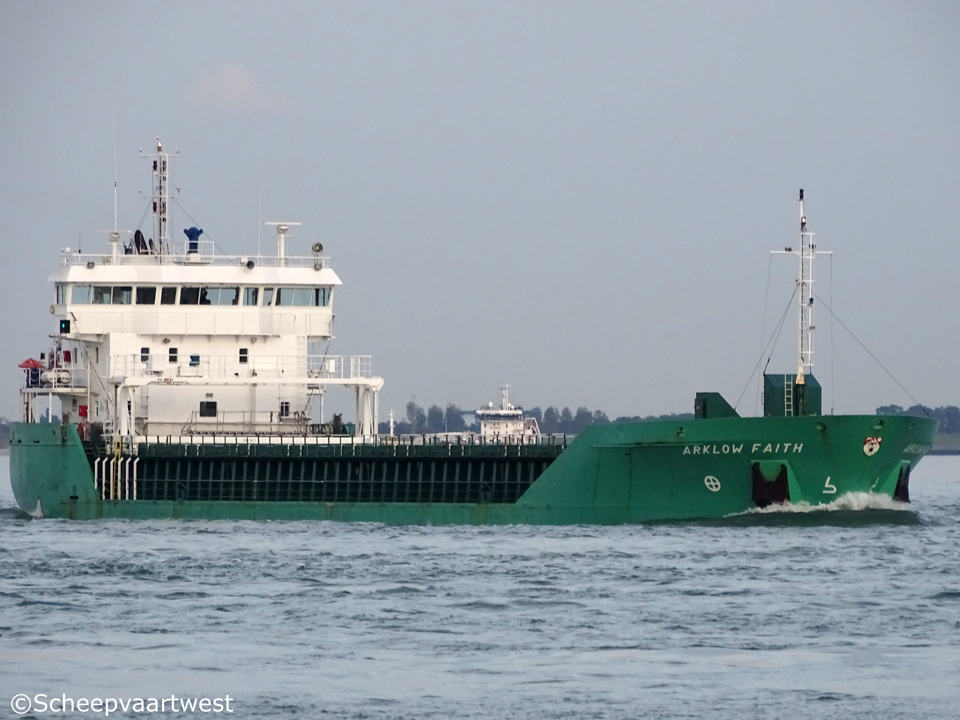

Arklow Faith 02

Westerschelde 21 September 2017

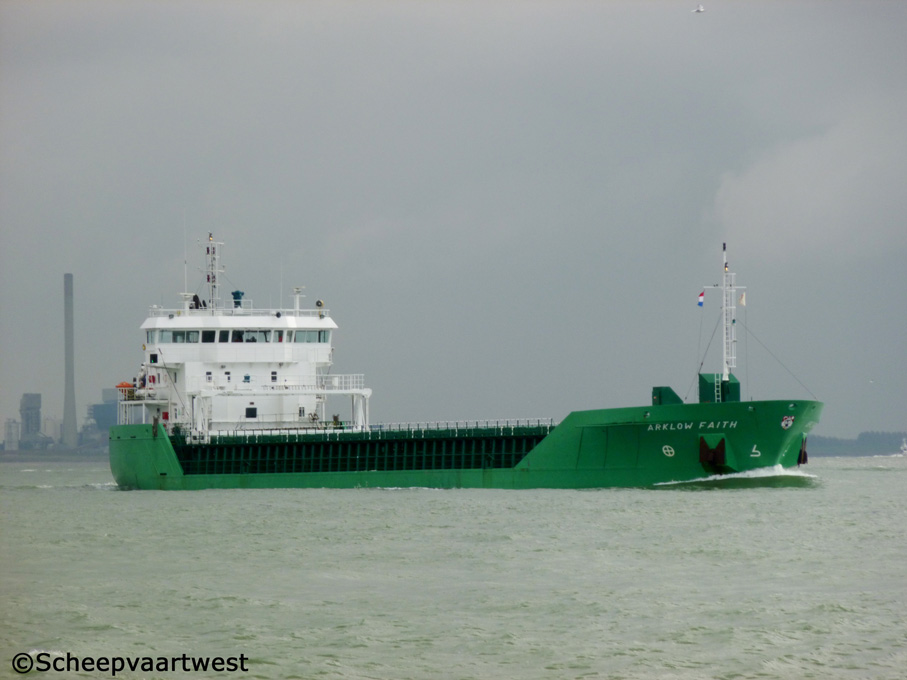

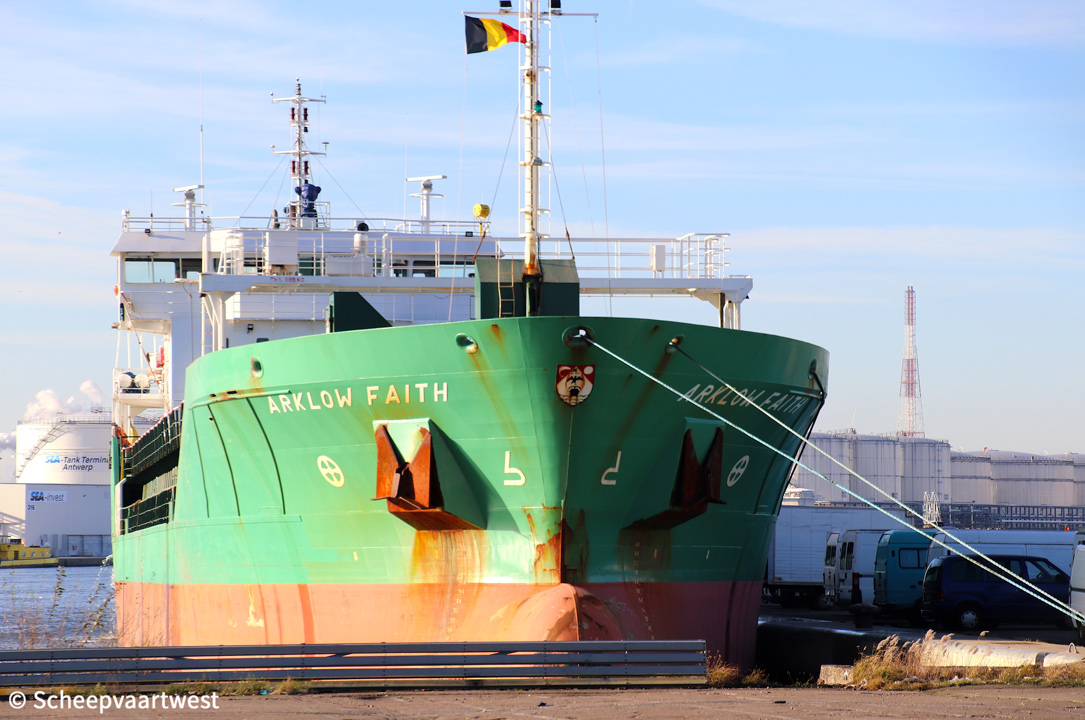

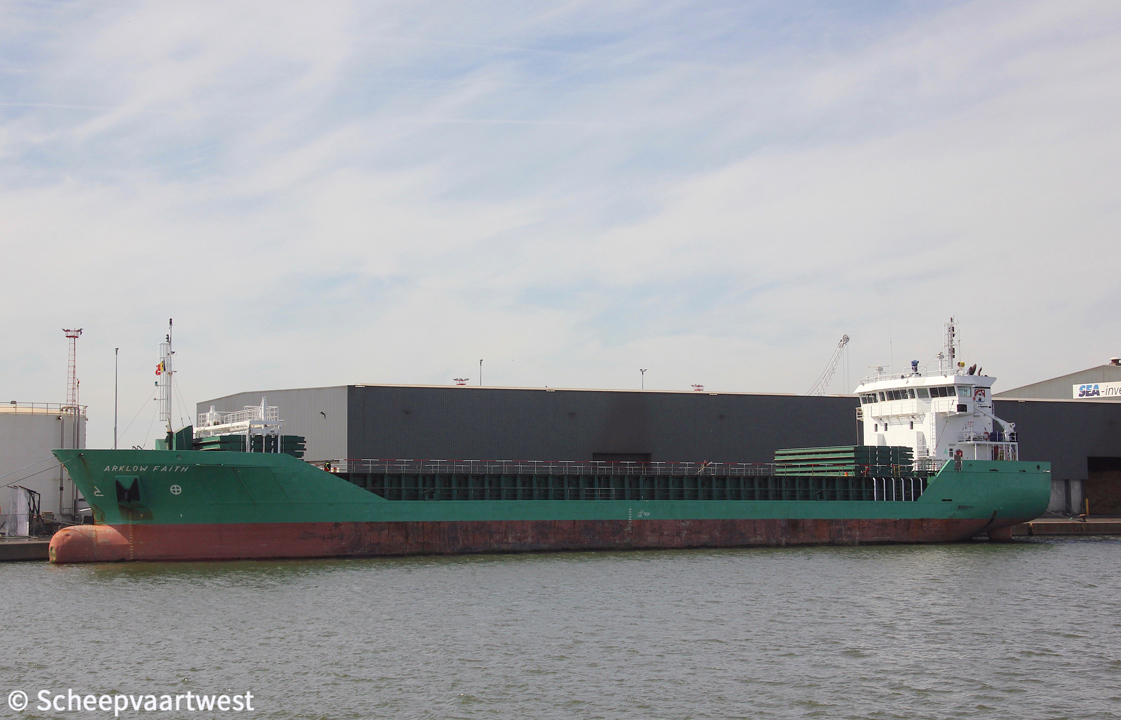

Arklow Faith 01   Arklow Faith 03   Arklow Faith 04
Westerschelde 15/10/13 Antwerpen 23/05/19   Antwerpen 06/01/20



Name

ARKLOW FAITH

Type

General dry cargo ship - heavycargo

IMO-number

9361718

Call sign

EIXM

Flag

Ireland

Port of registry

Arklow

GT

2.998 t

DWT

Summer: 4.500 t

NT

1.673 m

Displacement

Summer: 5.941 t

Length

89,95 m overall

84,98 m between perpendiculars

Breadth

14,40 m moulded

Draught

Summer: 6,28 m

Air draft

Min.: 21,70 m

Depth

7,35 m moulded

Speed

11,5 knots

Built

2006

Keel laid

05/11/2005

Launch date

21/06/2006

Date of completion

30/11/2006

Builder

Astilleros De Murueta S.A.

Murueta - Vizcaya

Spain

Yard number

261

Hull material

Steel

Hull type

Single hull

Bottom strengthened for loading aground

Movable bulkhead

2x May be placed in 10 positions for cargo separation

Continuous decks

1

Main engine

1x MaK/Caterpillar 6M25 - 6 cylinden combustion engine 1.980 kW / 2.690 hp at 750 rpm

Manufacturer: Caterpillar Motoren

Propellers

1x Screw propeller controllable pitch

Boilers

1x CHO 5,0 bar

Shaft generator

1x Shaft alternator Stamford HCM534C2

Generators

2x Guascor SH74TAB-SG diesel engines each 175 kW connected with Stamford HCM434C2 generatosr each 190 kVA at 1.500 rpm

1x Guascor H33TSG diesel engine 50 kW connected with a Stamford UCM224G2 generator 60 kVA at 1.500 rpm

Bow thruster

1x Electric bow thruster 250kW

Hold capacity

Bales/ grain: 213.855,53 ft³ / 6.056 m³ incl. bulkheads

Bales/ grain: 214.491,16 ft³ / 6.074 m³ excl. bulkheads

Hatch type

Roden Staal pontoon system

Loading capacity

Maximum hatch top loading: 1,75 t/m²

Maximum tank top loading: 15,0 t/m²

Tank top strengthened for heavy cargoes

Tank capacities

Fuel oil: 182 t

Diesel oil: 37 t

Fresh water: 46,8 t

Lub oil: 12,1 t

Crew size

10

Manager

Arklow Shipping

North Quay

Wicklow

Ireland

Registered owner

Invermore Shipping Ltd.

Latest data adjustment

10 April 2020
