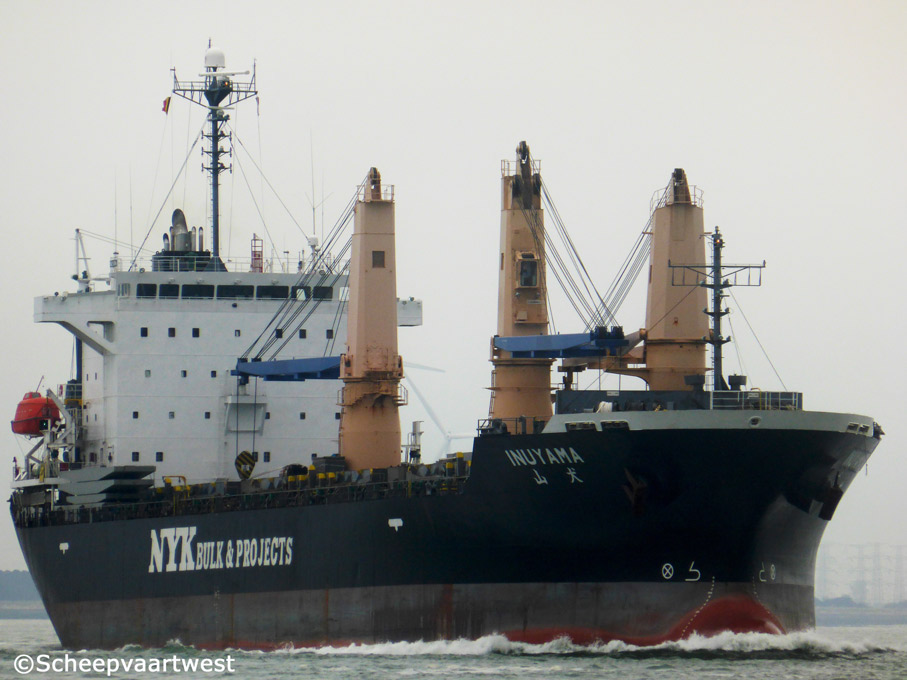

Westerschelde 28 May 2014 |
|
Name |
INUYAMA |
|
Location |
Westerschelde 28 May 2014 sailing near Vlissingen |
|
Type |
General cargo ship - Ro-Ro cargo / Container / Vehicles carrier |
|
IMO-number |
9392080 |
|
Call sign |
3FJQ |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
13.668 t |
|
DWT |
Summer: 19.922 t |
|
NT |
6.537 t |
|
Number of 20ft containers |
513 |
|
Number of 40ft containers |
229 |
|
Length |
149,53 m overall |
|
Breadth |
24,00 m |
|
Draught |
Summer: 9,63 m |
|
Moulded L x B x D |
138,82 x 24,00 x 14,20 m |
|
Registered L x B x D |
139,30 x 24,00 x 14,20 m |
|
Freeboard |
4.615 mm |
|
Depth |
14,20 m moulded |
|
Speed |
14,3 knots |
|
Built |
2009 |
|
Keel laid |
17.06.2006 |
|
Launch date |
16.12.2008 |
|
Date of completion |
18.03.2009 |
|
Builder |
Shin Kochijyuko Co., Ltd. |
|
Yard number |
7226 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi/Kobe 7UEC45LA - 2 stroke single acting 7 cylinder 450 x 1.350 mm diesel engine - 6.230 kW / 8.470 hp at 158,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Kobe Works |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 400 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 1,88 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generator - 1.779 kVA |
|
Cargo hold capacity |
Bales: 24.027 m³ Grain: 26.829 m³ |
|
Car capacity |
415 |
|
Tank capacities |
Fuel oil: 1.041 m³ fresh water: 224 m³ Water ballast: 6.648 m³ |
|
Manager |
Nyk Shipmanagement Republic of Singapore |
|
Operator |
NYK Bulk & Projects Carriers Ltd. |
|
Registered owner |
Sirius Marine Ltd. S.A. |
|
Latest data adjustment |
04 July 2014 |
