Antwerpen 05 May 2014 |
 |
 |
|
| Antwerpen 05/05/14 | Antwerpen 05/05/14 |
|
Name |

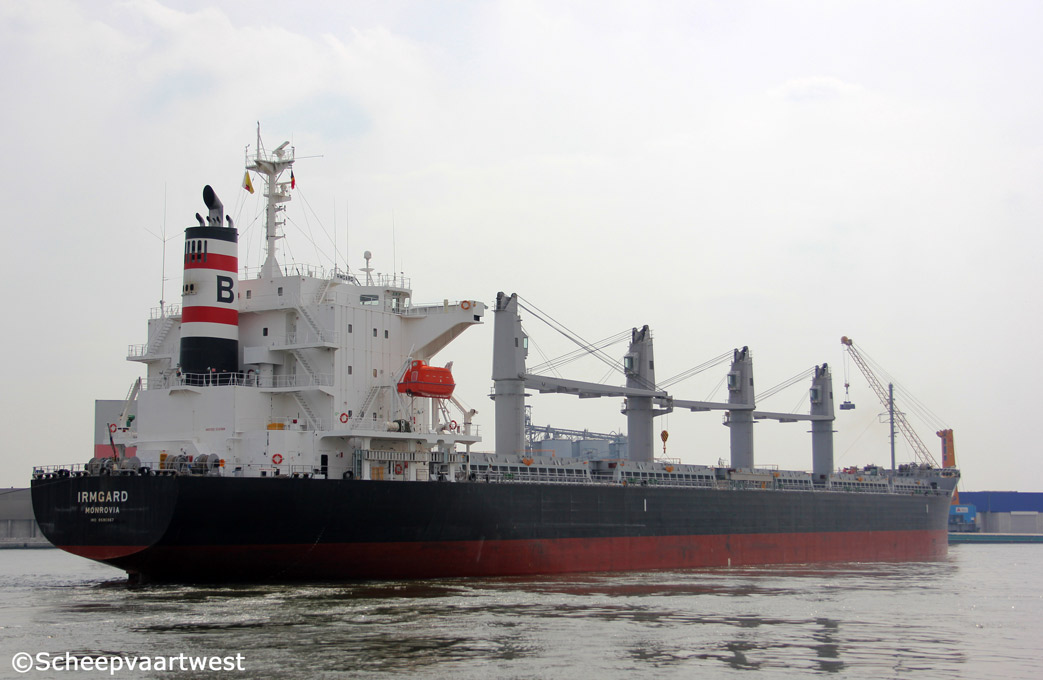

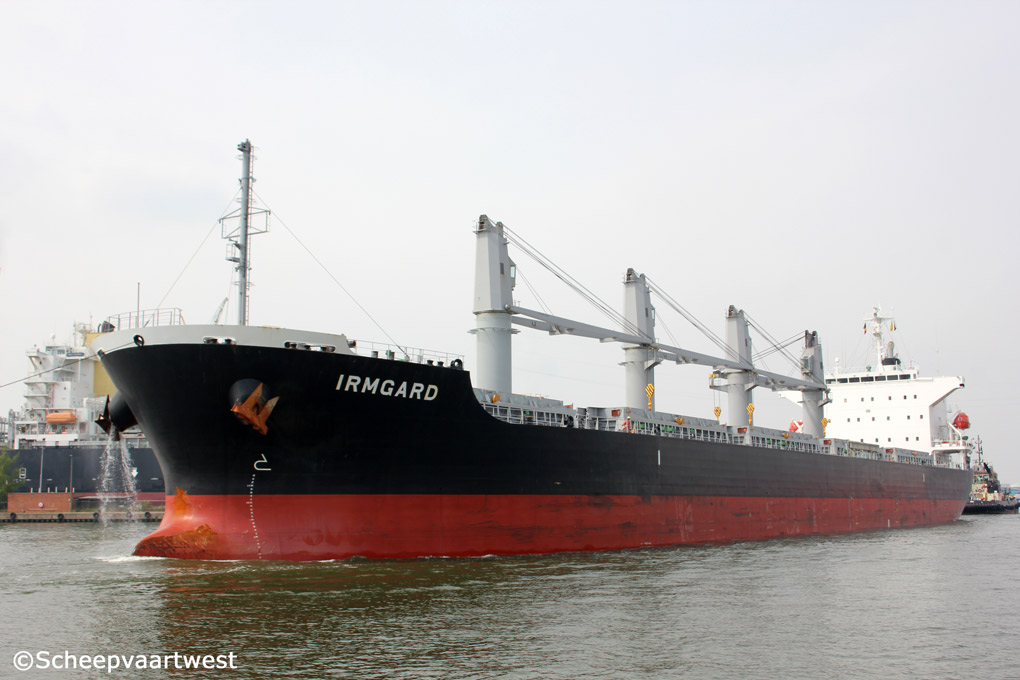

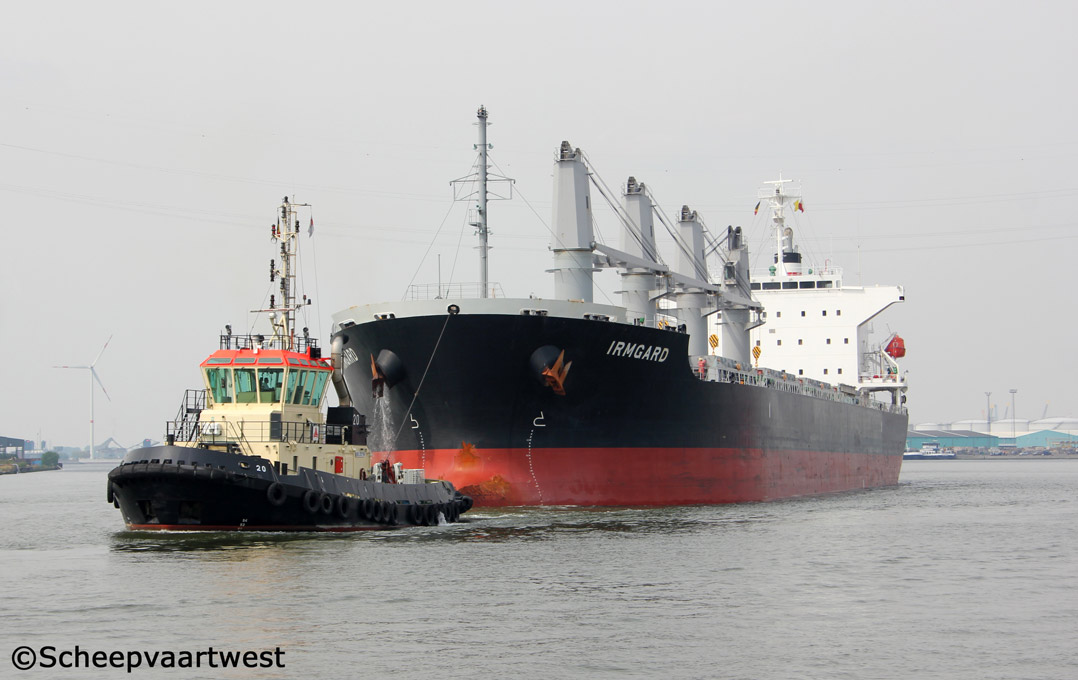

IRMGARD |
|
Type |
Geared bulk carrier - Strengthened for heavy cargo loading - Single deck |
|
IMO-number |
9590967 |
|
Call sign |
A8YT9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
23.268 t Suez: 23.815,75 t |
|
DWT |
Summer: 38.167 t Winter: 37.200 |
|
NT |
12.134 t Panama: 19.375 t Suez: 21.176,08 t |
|
Length |
179,97 m overall |
|
Breadth |
29,80 m |
|
Draught |
10,54 m |
|
Moulded L x B x D |
173,00 x 29,80 x 15,00 m |
|
Registered L x B x D |
173,52 x 29,80 x 15,00 m |
|
Freeboard |
4.500 mm |
|
Depth |
15,00 m moulded |
|
Speed |
Service: 14,7 knots |
|
Built |
2012 |
|
Keel laid |
01.09.2010 |
|
Launch date |
10.08.2011 |
|
Date of completion |
22.05.2012 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Imabari |
|
Yard number |
766 |
|
Hull material |
Steel |
|
Hull type |
Double hull construction applied to all cargo holds |
|
Main engine |
1x MAN-B&W 6S46MC-C - 2 stroke single acting 6 cylinder 460 x 1.932 mm diesel engine - 9.925 bhp / 7.300 kW at 120,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 450 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 2,10 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generators - 1.715 kVA |
|
Number of holds |
5 No.1: 27.50 x /7,60 - A/22,67 No.2: 27.50 x 25,67 No.3: 27.50 x 25,67 No.4: 27.50 x 25,67 No.5: 28,33 x F/25,70 - A/9,09 |
|
Cargo capacity |
Grain: Hold 1: 7.702,42 Hold 2: 9.932,74 Hold 3: 9.966,82 Hold 4: 9.955,17 Hold 5: 9.563,50 Total: 47.120,65m³ Bales: Hold 1: 7.380,05 Hold 2: 9.575,67 Hold 3:9.578,52 Hold 4: 9.577,94 Holf 5: 9.256,93 Total: 45.369,11 m³ |
|
Number of hatches |
5 No.1: 15,60 x 17,16 m No. 2 - 5: 20,04 x 20,02 m |
|
Type of hatch covers |
Folding type |
|
Tank top strength |
20,0 t/m² |
|
Tank capacities |
Fuel oil: 1.946 m³ fresh water: 294 m² Water ballast: 15.132 m³ |
|
Cargo gear |
4x Cranes - SWL 30,5 t each |
|
Manager |
Johann M.K. Blumenthal GmbH & CO., KG Palmaille 118-120 22767 Hamburg |
|
Registered owner |
(Bareboat Charterer) First Bulk Shipping Company Limited |
|
Latest data adjustment |
30 June 2014 |
