Spijkenisse 28 February 2012 |
|
Name |

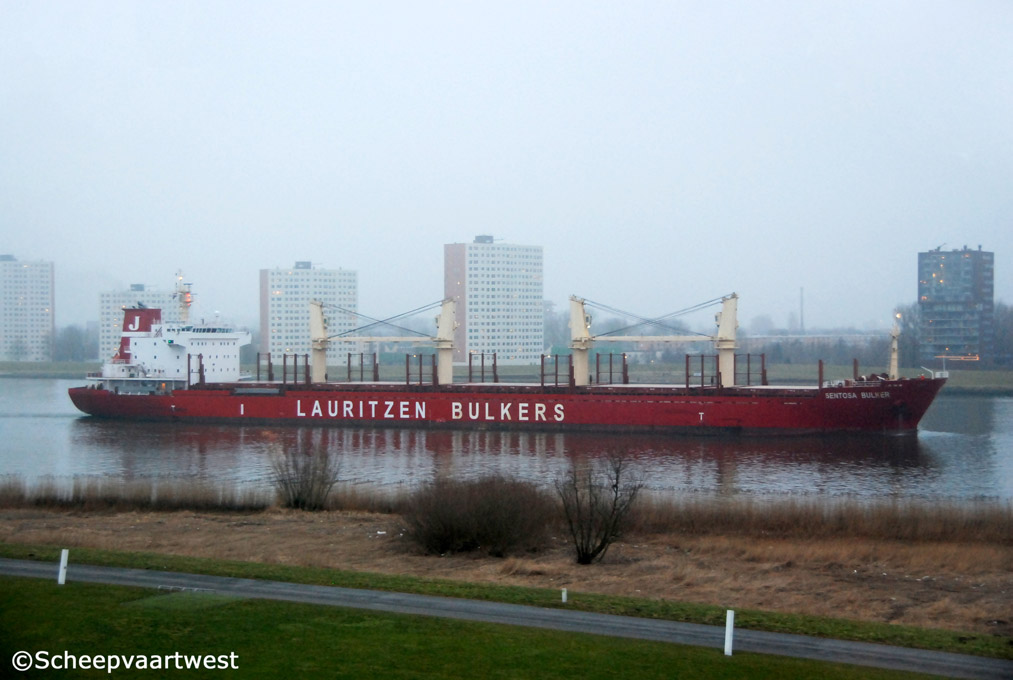

SENTOSA BULKER |
|
Type |
Bulk carrier |
|
IMO-number |
9527996 |
|
Call sign |
9V7779 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
20.809 t Suez: 21.811,15 t |
|
DWT |
Summer: 32.755 t |
|
NT |
11.689 t Panama: 17.311 t Suez: 19.954,92 t |
|
Length |
179,90 m overall 171,50 m between perpendiculars |
|
Breadth |
28,44 m extreme |
|
Draught |
10,15 m |
|
Depth |
14,10 m |
|
Speed |
At sea laden condition: 13,7 knots At sea ballast condition: 14,0 knots |
|
Built |
2010 |
|
Keel laid |
16.03.2009 |
|
Date of completion |
14.04.2010 |
|
Builder |
Jiangmen Nanyang Ship Engineering Co. Ltd. Jiangmen |
|
Yard number |
602 |
|
Hull material |
Steel |
|
Main engine |
1x MAN B&W 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm diesel engine - 6.480 kW / 8.810 hp at 136 rpm Builder: Yichang Marine Diesel Engine Co Ltd – China |
|
Propellers |
1x Fixed pitch propeller - aft at 136 rpm |
|
Boilers |
Auxiliary boiler, composite ZYC 1.2/0.9-0.7 |
|
Generators |
3x MAN main diesel generatorsets Builder: MAN Diesel & Turbo SE |
|
Emergency generator |
1x Diesel generatorset 6CT8.3-DCM Builder: Zhenjiang China Marine Xiandai Generating Co., Ltd. |
|
Number of holds |
5 |
|
Hold capacity |
Grain Hold 1: 7.012 m³ Hold 2: 9.575 m³ Hold 3: 8.976 m³ Hold 4: 9.574 m³ Hold 5: 7.988 m³ Total: 43.125 m³ Bales Hold 1: 6.412 m³ Hold 2: 9.192m³ Hold 3: 8.616 m³ Hold 4: 9.190 m³ Hold 5: 7.345 m³ Total: 40.755 m³ |
|
Number of hatches |
5 Hatch #1: 14,40 x 17,60 m Hatch #2, #3, #4: 20,00 x 19,20 m Hatch #5: 18,40 x 19,20 m |
|
Hatch cover type |
Hydraulically operational fore/aft folding |
|
Tank Strengths |
Tank top: 20,0 t/m² Deck: 4,0 t/m² Hatch cover: 3,3 t/m² |
|
Tank capacities |
Fuel oil: 1.659,9 m³ MGO: 167,3 m³ Ballast capacity: 10.986,4 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 64 mm |
|
Cargo gear |
4x Electro-hydraulic IHI cranes - SWL 30,5 t |
|
Manager |
Synergy Maritime Pvt Ltd. Chennai |
|
Previous managers |
2010 - 2010 Lauritzen Bulkers A/S 2010 - 2013 Fleet Management Limited |
|
Operator |
Lauritzen Bulkers A/S |
|
Owner |
J. Lauritzen Singapore Pte. Ltd. #13-01/02, Keppel Bay Tower Singapore 098632 |
|
Latest data adjustment |
28 June 2014 |
