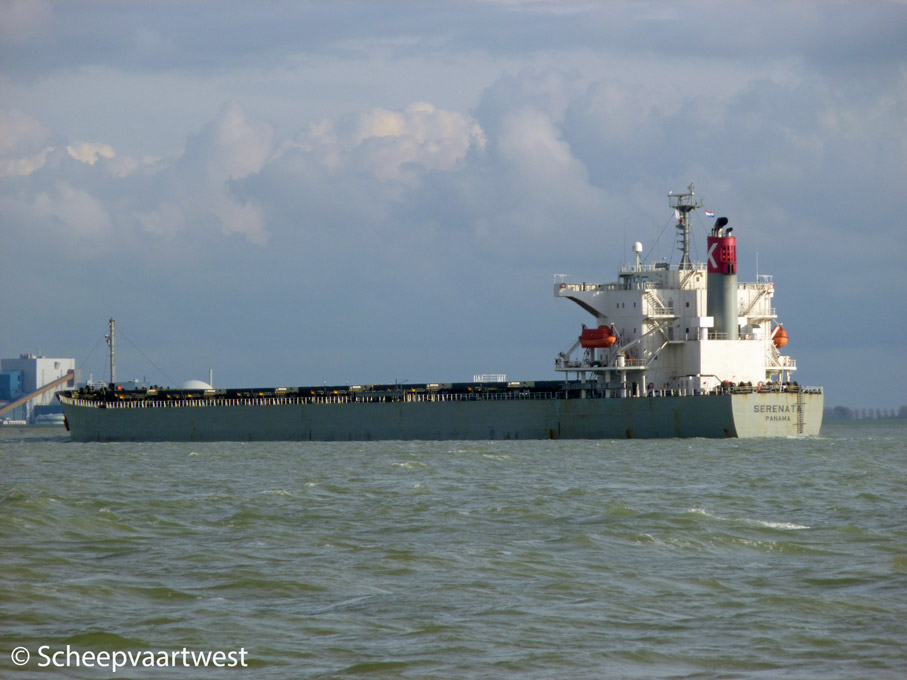

| Westerschelde 30 October 2012 |
|
Name |
SERENATA |
|
Type |
Dry bulk carrier |
|
IMO-number |
9362190 |
|
Call sign |
3EEE2 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
39.736 t registered |
|
DWT |
76.561 t |
|
NT |
25.724 t registered |
|
Length |
224,94 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
14,14 m |
|
Moulded L x B x D |
217,00 x 32,26 x 19,50 m |
|
Registered L x B x D |
217,97 x 32,26 x 19,50 m |
|
Freeboard |
5.404 mm |
|
Depth |
19,50 m moulded |
|
Speed |
Trial: 16,8 knots |
|
Built |
2006 |
|
Keel laid |
25.02.2004 |
|
Launch date |
06.06.2006 |
|
Date of completion |
21.07.2006 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Marugame Headquarters |
|
Yard number |
1417 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 6 cylinder 600 x 2.292 mm diesel engine - 10.320 kW at 89,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical bpiler - 7,8 bar Evaporation: 2,85 t/h Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
4x Main diesel generatorsets 1.590 kVA |
|
Cargo capacity |
Grain: 90.644 m³ |
|
Tank capacities |
Fuel oil: 3.043 m³ Fresh water: 347 m³ Ballast water: 21.040 m³ |
|
Manager |
Taiyo Nippon Kisen Co., Ltd. - Regional Operating Headquarters |
|
Owner |
Taiyo Nippon Kisen |
|
Registered owner |
Belocean Shipping S.A. |
|
Last update |
11.05.2013 |
