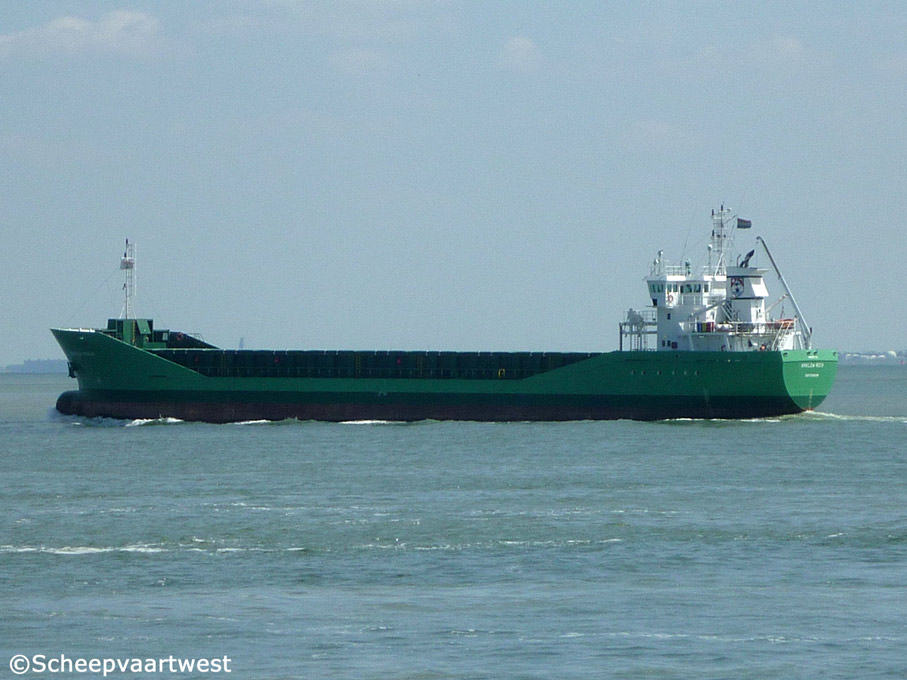

Arklow Rock 01

Westerschelde 14 June 2012



Name

ARKLOW ROCK

Type

Multi-purpose cargo ship - heavy cargo

IMO-number

9291705

Call sign

PBZM

Flag

2010 The Netherlands

Previous flag

2004 - 2010 Ireland - Home: Arklow

Port of registry

2010 Rotterdam

GT

2.999 t

DWT

Summer: 4.485 t

NT

1.639 t

Displacement

6.000 t

Number of 20ft containers

In hold: 102

On deck: 36

Total: 138

Length

89,99 m overall

84,98 m between perpendiculars

Breadth

14,00 m moulded

14,18 m extreme

Draught

6,10 m summer load

Air draft

20,60 m minimum

Freeboard

1.286 mm

Depth

7,15 m

Speed

11,5 knots

Built

2004

Date of completion

16.04.2004

Builder

Barkmeijer Stroobos B.V.
Stroobos
The Netherlands

Yard number

303

Hull material

Steel

Watertight compartments

5

Movable bulkhead

2x May be placed in 9 positions for cargo separation

Hatches

Roden Staal pontoon system

Strength

Maximum hatch top loading: 1,5 t/m²
Maximum tank top loading: 15,0 t/m²

Bottom strengthened for loading aground
Tank top strengthened for heavy cargoes

Continuous decks

1

Main engine

1x MAK-Caterpillar 6M25 - 4 stroke 6 cylinder 255 x 400 mm diesel engine - 1.499 kW at 750 rpm

Built: 2003

Builder: MaK Motoren GmbH & Co. KG, Kiel - Germany

Gearbox

1x Scana Volda gearbox

Propellers

1x Screw propeller controllable pitch - aft at 197 rpm

Electric installations

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Shaft generator

1x HCM534D2 435 kVA - 348 kW

Generators

2x Valmet 634DSIG diesel diesel engine 150 KX at 1.500 rpm coupled with Stamford UCM274 H 175 kVA each

Bow thruster

1x 250 kW­

Number of holds

2

Total capacity of holds

Grain & bale

Incl. Bulkheads: 207.391 ft³ / 5.873 m³

Bulkheads stowed midships: 206.541 ft³ / 5.849 m³

Cargo hatchways

1

Dimension: 62,40 x 11,50 m

Tank capacities

Water ballast: 1.945 m³

HFO: 121,28 m³

GO: 35,84 m³

Fresh water: 88,0 m³

Lub oil: 13 m³

Manager

2010 Arklow Shipping Nederland BV
Rotterdam
The Netherlands

Previous manager

Arklow Shipping Ltd.
Arklow
Ireland

Operator

Arklow Shipping

Registered owner

2010 Arklow Shipping Nederland BV
Rotterdam
The Netherlands

Previous owner

2004 - 2010 Invermore Shipping Ltd.
Arklow
Ierland

Last data update

10 February 2014
