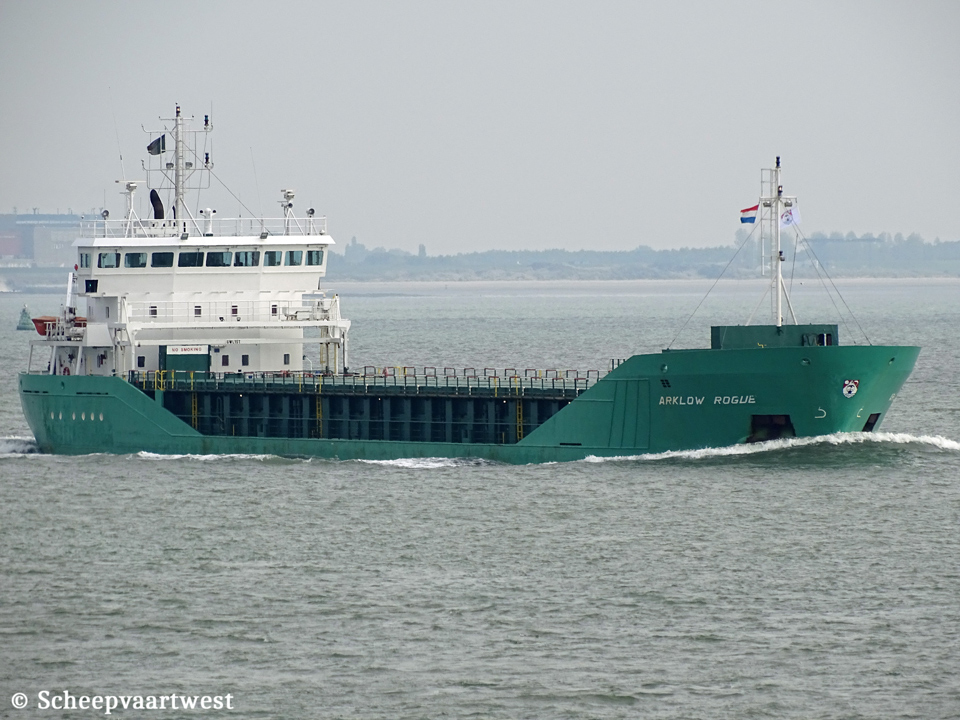

Arklow Rogue IMO 9344526 01

Westerschelde 05 October 2019

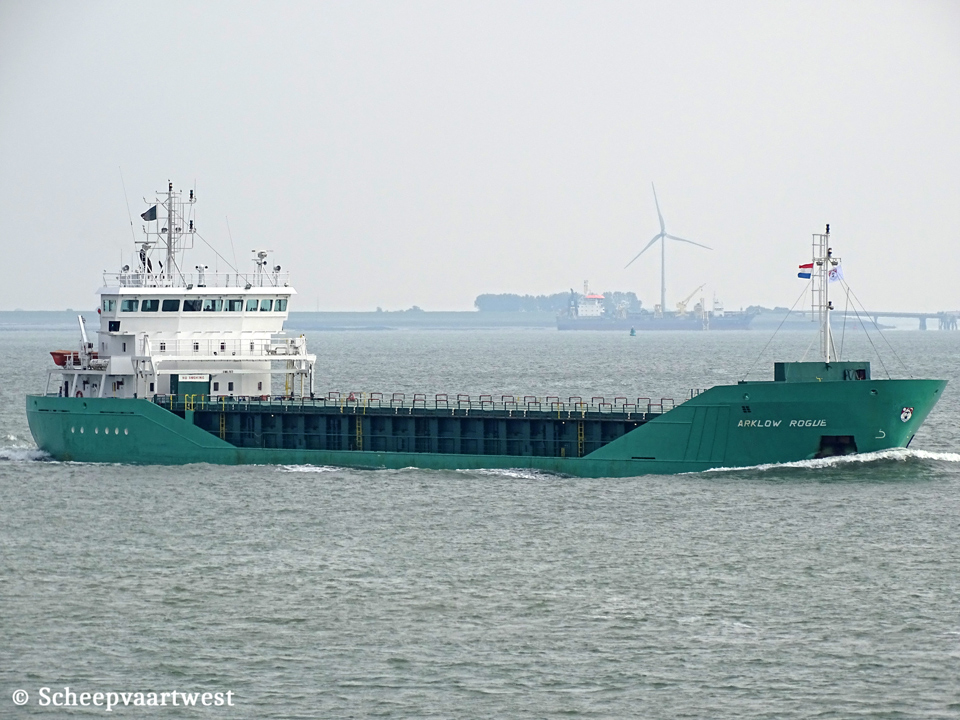

Arklow Rogue IMO 9344526 02
Westerschelde 05/10/19













Name

ARKLOW ROGUE

Type

General cargo ship - Heavy cargo

IMO-number

9344526

Call sign

EIGD

Flag

Ireland

Port of registry

Arklow

GT

2.999 t

DWT

Summer: 4.868,0 t

Winter: 4.721,3 t

DWCC

Summer: 4.933 t

NT

1.639 t

Displacement

Summer: 5.906 t

Number of 20ft containers

In hold: 102

On deck: 48

Total: 150

Length

89,99 m overall

84,98 m between perpendiculars

Breadth

14,00 m moulded

14,18 m extreme

Draught

Summer: 6,10 m

Winter: 5,97 m

Ballast: 4,40 m

Keel to mast end

26,70 m

Air draft

Min: 20,60 m

Freeboard

860 mm

Depth

7,15 m

Speed

11,5 knots

Built

2007

Date of completion

15/03/2007

Builder

Barkmeijer Stroobos B.V.

Stroobos

The Netherlands

Yard number

311

Hull material

Steel

Hull type

Single hull

Movable bulkheads

2x May be placed in 9 positions for cargo separation

Continuous decks

1

Main engine

1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.800 kW / 2.446 kW at 750 rpm

Build: 2006

Builder: Caterpillar Motoren GmbH & Co. KG; Kiel - Germany

Propellers

1x Screw propeller controllable pitch

Shaft generator

1x Alternator M8BM315MB4 - 400 kVA / 340 ekW

Generators

2x Sisu Diesel 645BSBIG main diesel generatorsets each 210 kVA - 168 kW - 245 hp at 1.500 rpm

Bow thruster

1x Electric bow thruster 250 kW

Number of holds

1

62,40 x 11,50 x 8,35 m

Cargo hold capacity

Bale & grain:

207.391 ft³ / 5.873 m³ incl. Bulkheads

206.541 ft³ / 5.849 m³ Bulkheads stowed midship

Number of hatches

1

62,40 x 11,50 m

Hatches type

Roden staal pontoon system

Max permitted loads

On hatches: 1,5 t/m²

Tanktop: 15,0 t/m²

Tank capacities

Ballast: 1.839 m³

HFO: 150,52 m³

Go: 36,42 m³

Fresh water: 88,0 m³

Lub oil: 8,0 m³

Crew size

10

Navigation equipment

2x Radars

Navtex

Echosounder

Speed/distance log

2x GPS receivers

A/P

Gyro/magnetic compasses

ISM & Commercial manager

Arklow Shipping ULCNorth Quay, Arklow, Co Wicklow

Ireland

Registered owner

Invermore Shipping Ltd.

Care of Arklow Shipping Unlimited Co (Arklow Shipping ULC)

North Quay, Arklow, Co Wicklow

Ireland

Latest data adjustment

30 September 2021
