| Antwerpen 06 March 2014 |
 |
 |
 |
 |
 |
 |
|||||

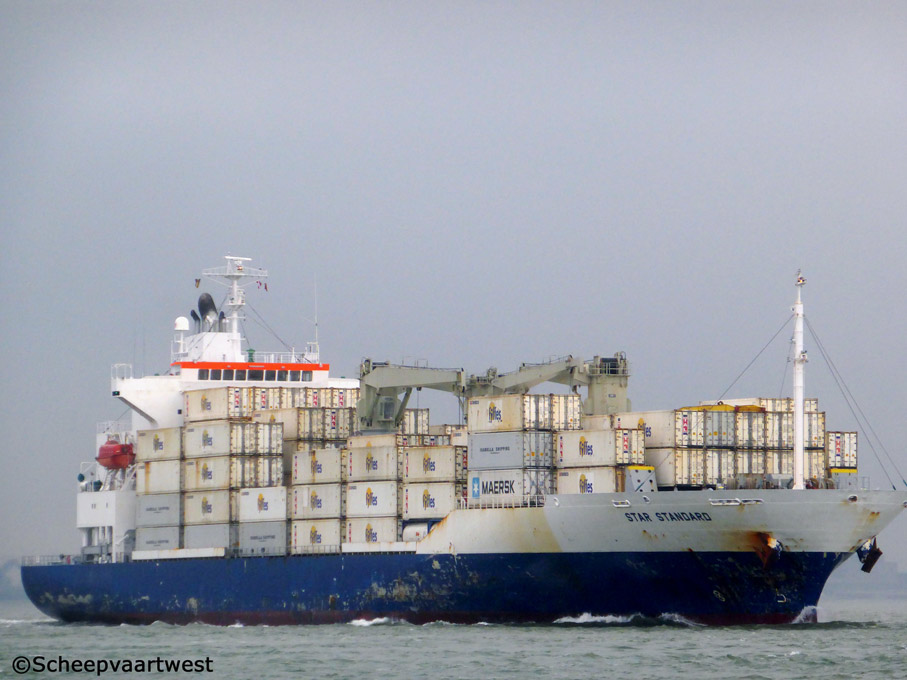

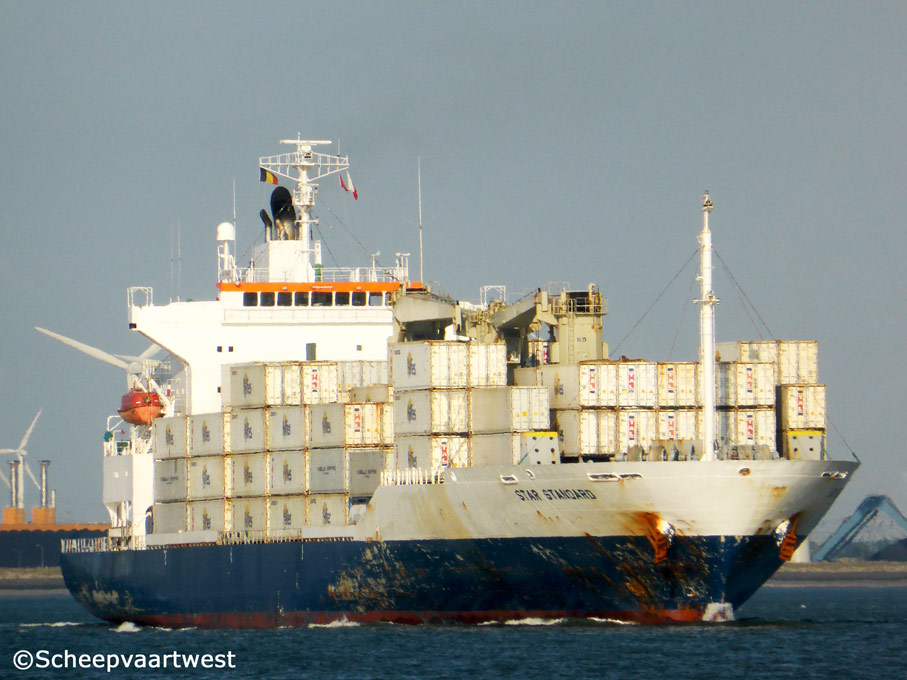

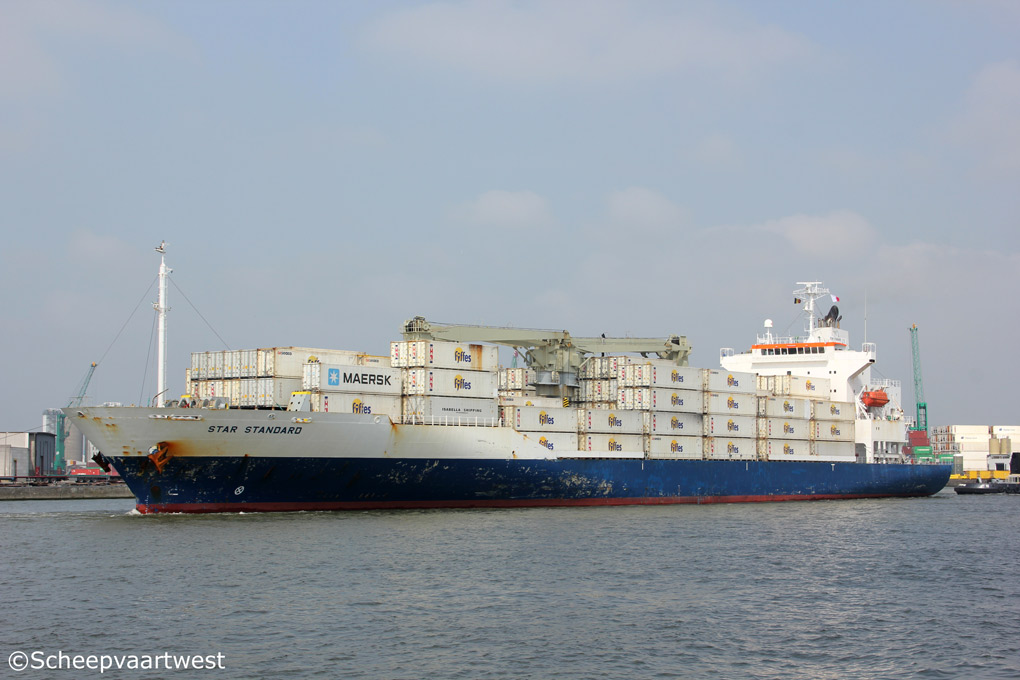

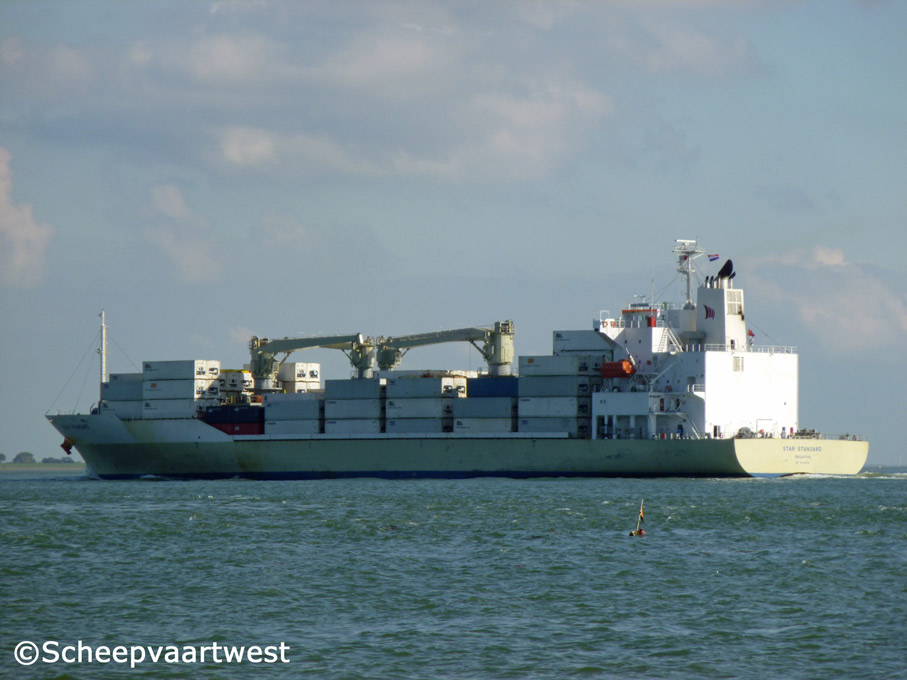

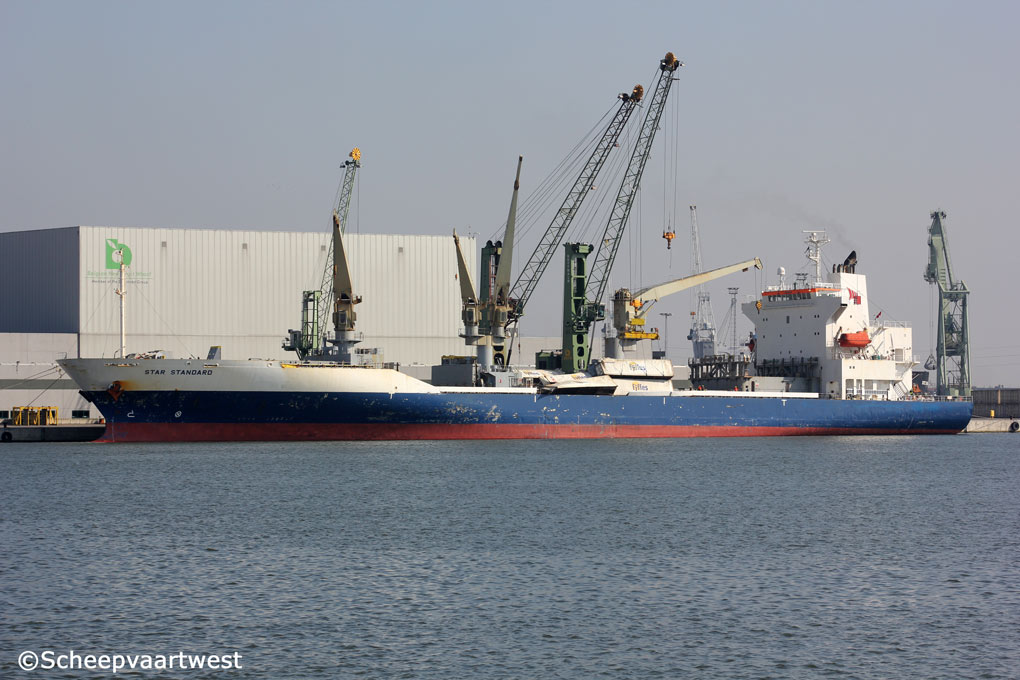

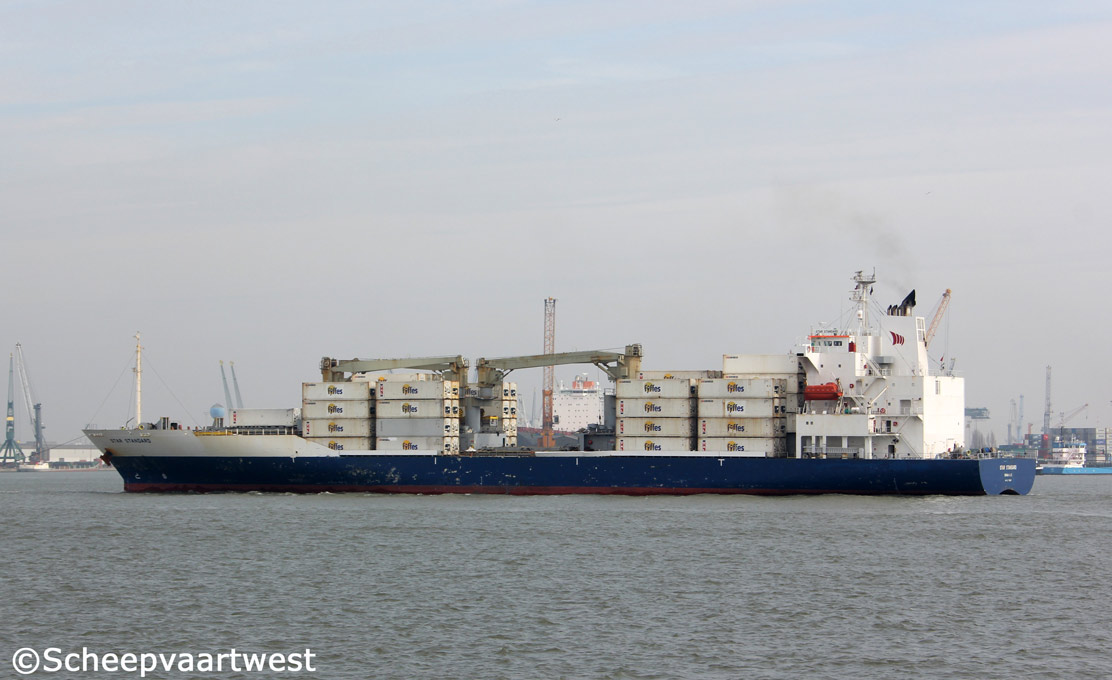

| Westerschelde 06/10/13 | Antwerpen 07/03/14 | Westerschelde 28/05/14 | Westerschelde 23/07/14 | Antwerpen 30/04/15 | Antwerpen 30/04/15 |
|
Name |
STAR STANDARD |
|
Type |
Refrigerated cargo ship - Designed for carriage of refrigerated cargoes of minimum temperature: -30°C - Designed for carriage of containers |
|
IMO-number |
9438509 |
|
Call sign |
9V9354 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
14.030 t registered |
|
DWT |
Summer: 13.201 t |
|
NT |
6.724 t registered |
|
Number of 20ft containers |
436 |
|
Number of 40ft containers |
200 |
|
Reefer capacity |
276 |
|
Length |
162,50 m overall |
|
Breadth |
26,00 m |
|
Draught |
Summer: 9,72 m |
|
Moulded L x B x D |
150,00 x 26,00 x 14,10 m |
|
Registered L x B x D |
151,49 x 26,00 x 14,10 m |
|
Freeboard |
Summer: 4.421 mm |
|
Depth |
14,10 m moulded |
|
Speed |
21,0 knots |
|
Built |
2009 |
|
Keel laid |
03.09.2008 |
|
Launch date |
14.11.2008 |
|
Date of completion |
06.02.2009 |
|
Builder |
Shikoku Dockyard Co., Ltd. |
|
Yard number |
1042 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 7 cylinder 600 x 2.400 diesel engine - 15.820 kW at 105,0 rpm Manufacturer :Mitsui Engineering & Shipbuilding Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 595 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,53 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
5x Diesel generatorsets - 6.090 kVA |
|
Cargo reefer capacity |
17.505 m³ |
|
Tank capacities |
Fuel oil: 2.625 m³ Fresh water: 414 m³ Water ballast: 2.845 m³ |
|
Manager |
Bright Star Ship Management Inc. |
|
Registered owner |
Grace Ocean Private Limited |
|
Last data update |
03 February 2014 |
