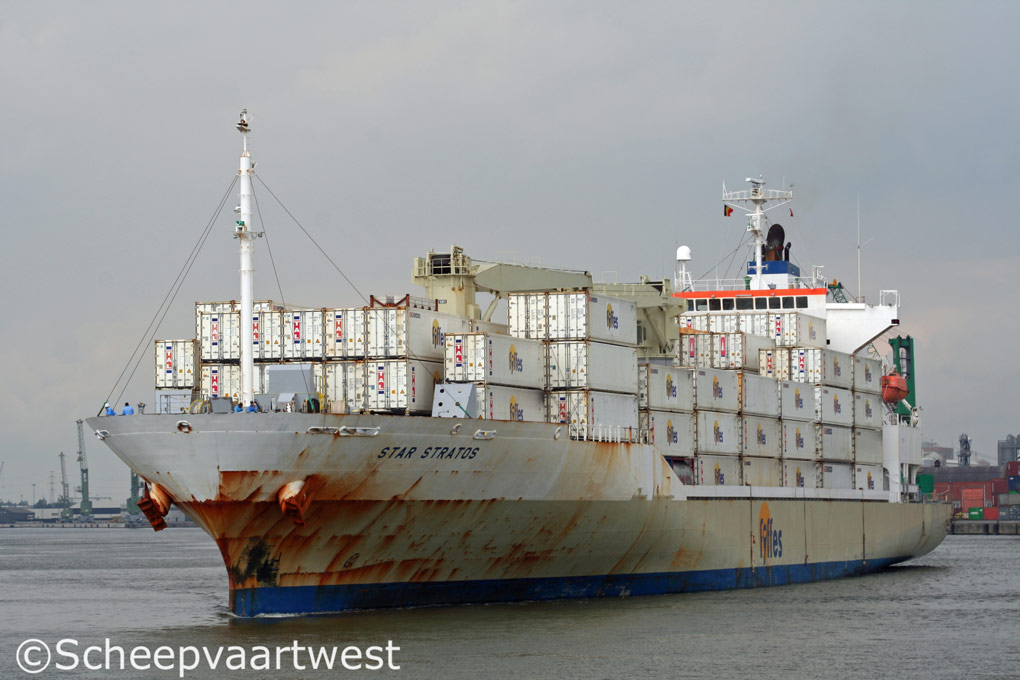

Star Stratos 01
Antwerpen 31 August 2011

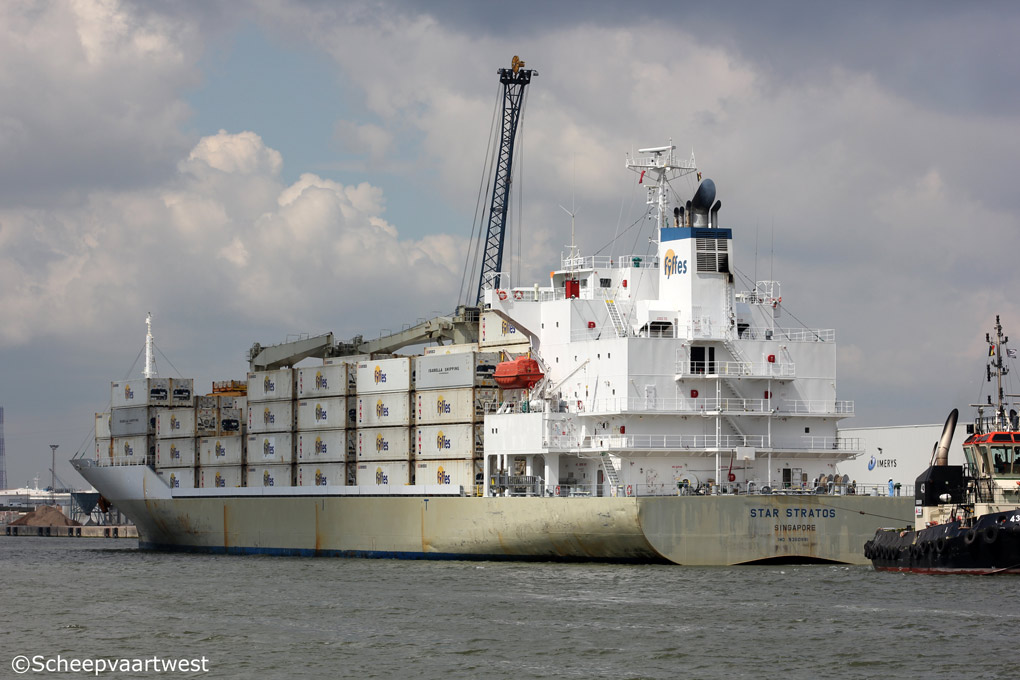

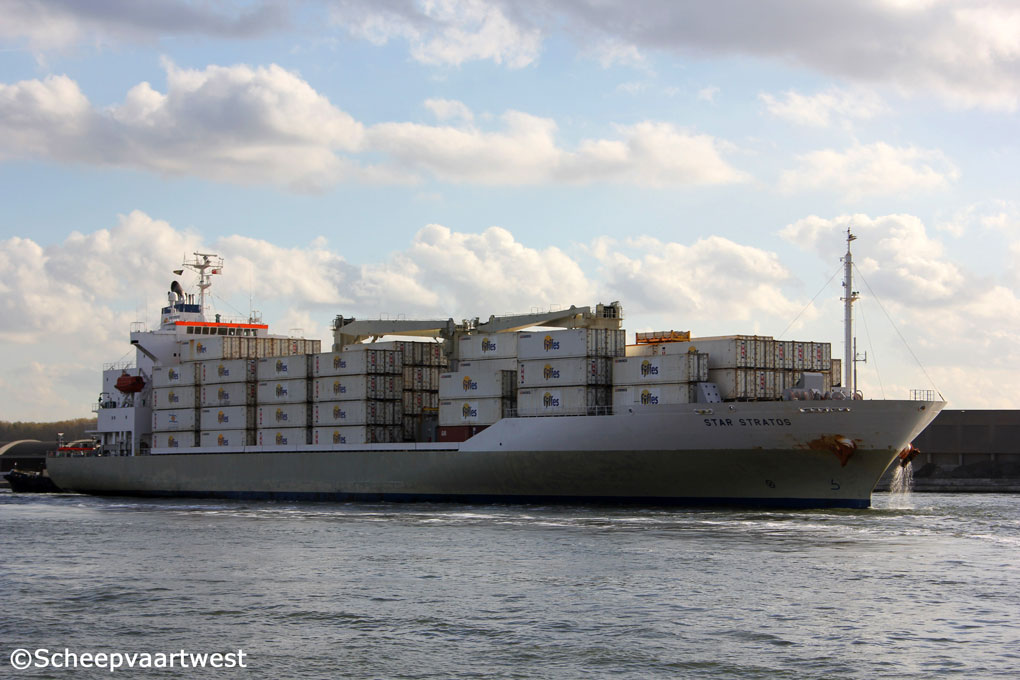

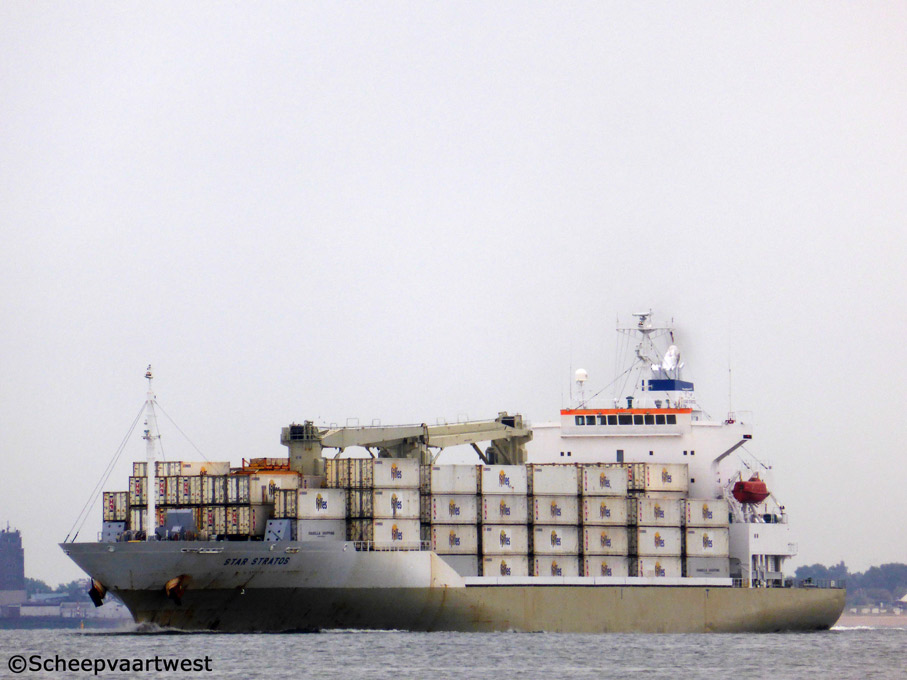

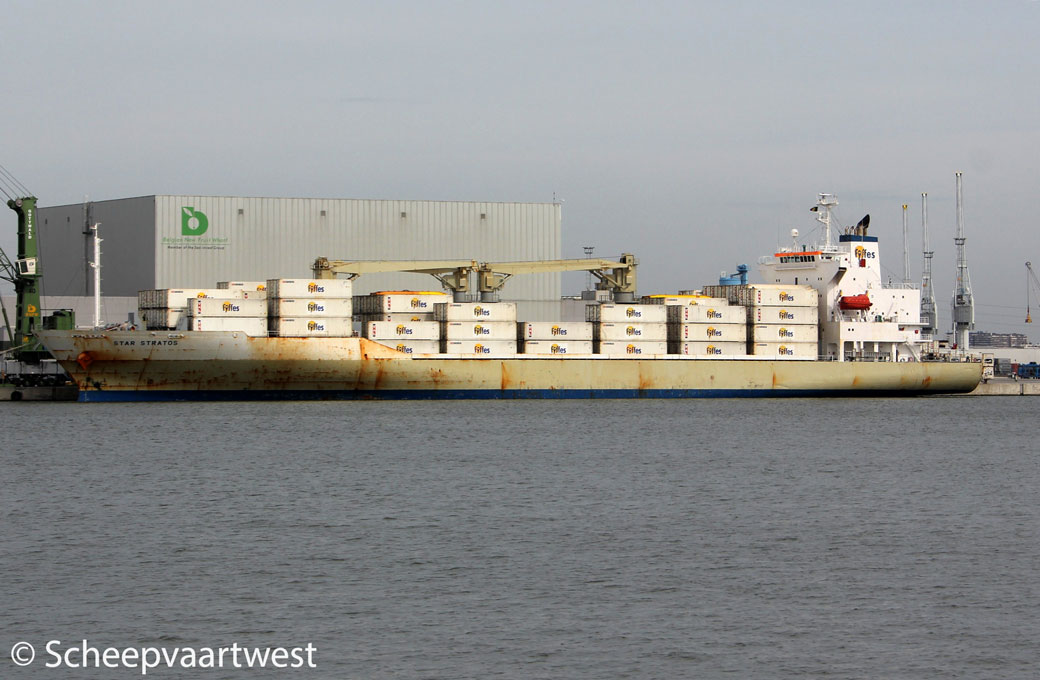

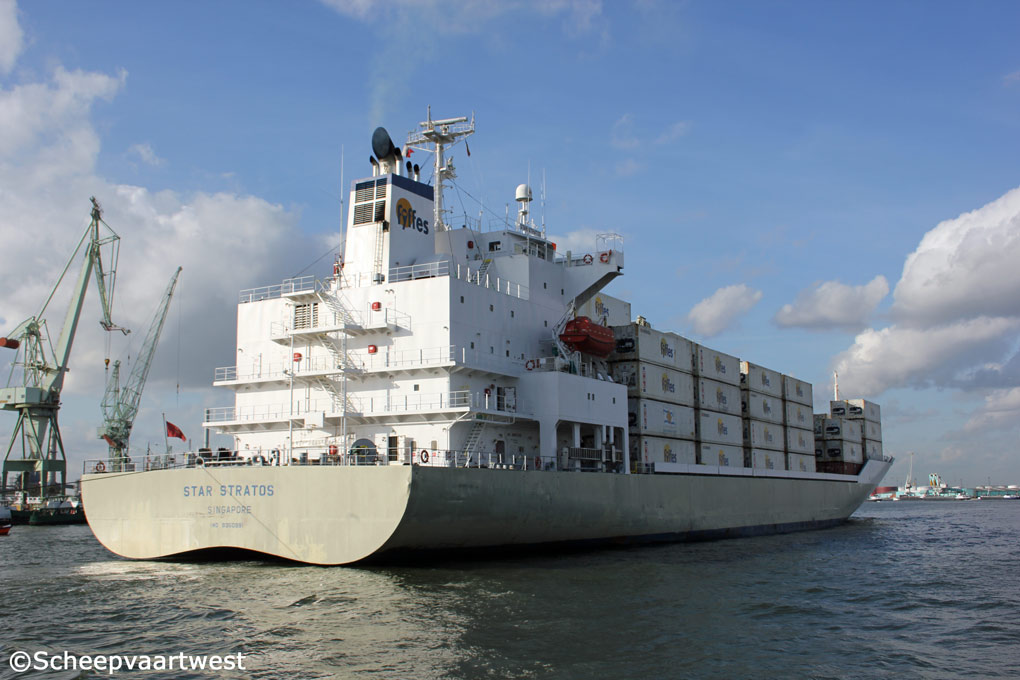

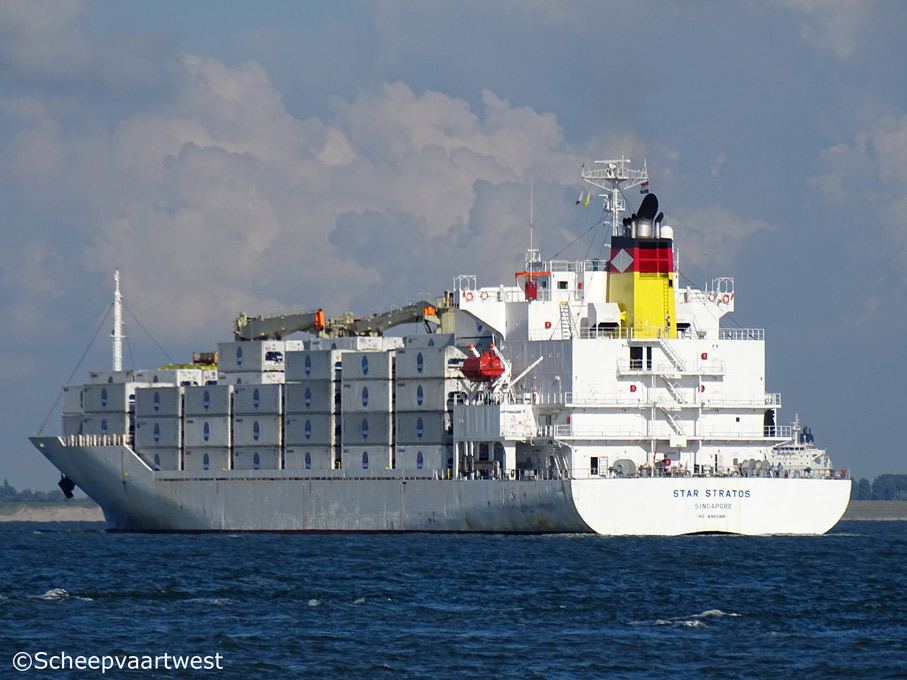

Star Stratos 02   Star Stratos 03   Star Stratos 04   Star Stratos 05   Star Stratos 08   Star Stratos 10
Antwerpen 17/04/13  Antwerpen 30/10/13  Antwerpen 30/10/13 Westerschelde 07/07/14   Antwerpen 14/05/14   Westerschelde 26/06/16

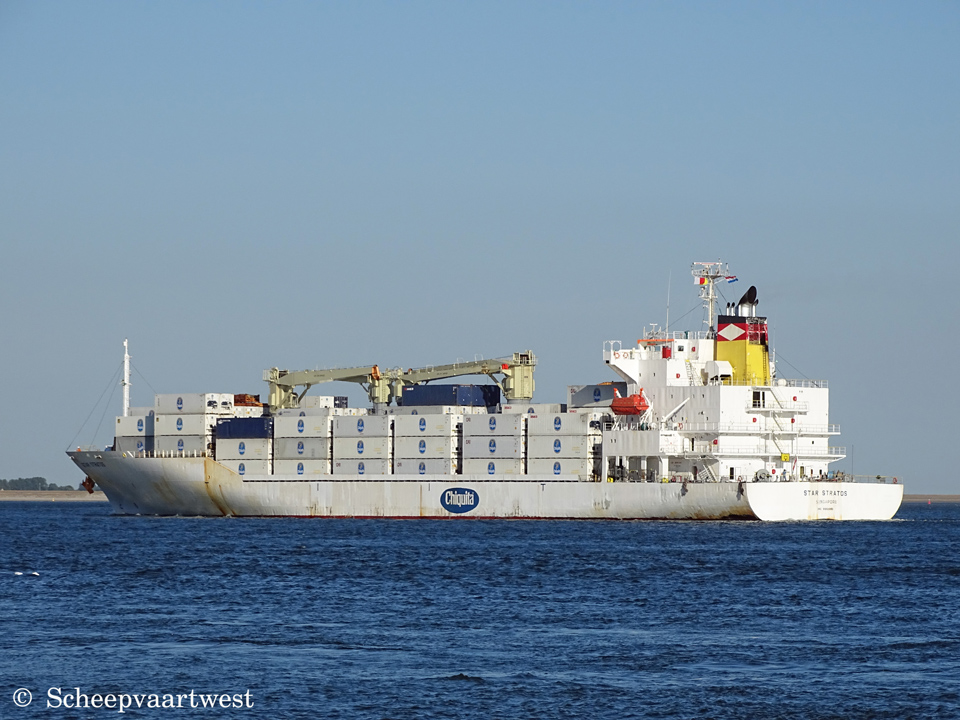

Star Stratos 11
Westerschelde 05/08/18



Name

STAR STRATOS

Type

Refrigerated cargo ship - Equipped for carriage of containers / vehicles

Designed for carriage of refrigerated cargoes of minimum temperature: -30 degree C

IMO-number

9350991

Call sign

9V9356

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flag

Republic of Panama, Panama city - call sign: 3EK09

GT

14.030 t

Suez: 14.867 t

DWT

13.186 t

NT

6.724 t

Suez: 12.313 t

panama: 12.244 t

Number of 20ft containers

On hatch covers: 140

On deck: 184 + 58 FEU

Under deck: 112

Total: 436

Number of 40ft containers

On hatch covers: 70

On deck: 150

Under deck: 56

Total: 276

Reefer plugs

200 Reefer sockets on deck

Length

162,50 m extreme

Breadth

26,00 m extreme

Draught

9,72 m

Moulded L x B x D

150,00 x 26,00 x 14,10 m

Registered L x B x D

151,49 x 26,00 x 14,10 m

Freeboard

Summer: 4.421 mm

Depth

14,10 m moulded

Speed

About 22,0 knots banana laden on 7,50 m draft

Built

2007

Keel laid

20.12.2006

Launch date

15.03.2007

Date of completion

30.05.2007

Builder

Shikoku Dockyard Co., Ltd.
Takamatsu
japan

Yard number

1033

Main engine

1x MAN-B&W 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm diesel engine - 15.820 kW at 105,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd.

Number of screws

1

Propeller shaft

1x Oil lubrication shaft with monitoring device

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 3,53 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

5x Diesel generatorsets - 6.090 kVA

Number of holds

4

Number of hatches

4

Temp. compartments / zones

15 / 8

Reefer capacity

17.487 m³

Temperature range

+ 15 / - 25°C

Tank capacities

Fuel oil: 2.624 m³

Fresh water: 406 m³

Water ballast: 2.845 m³

Ventilation

90 Air circulations per h

Cargo handling gear

2x Hydraulic cranes - SWL 8,0 t each

2x Hydraulic cranes - SWL 40,0 t each

Manager

Cleanseas Shipmanagement, Inc.

Registered owner

Grace Ocean Private Limited

Latest data adjustment

08 January 2015
