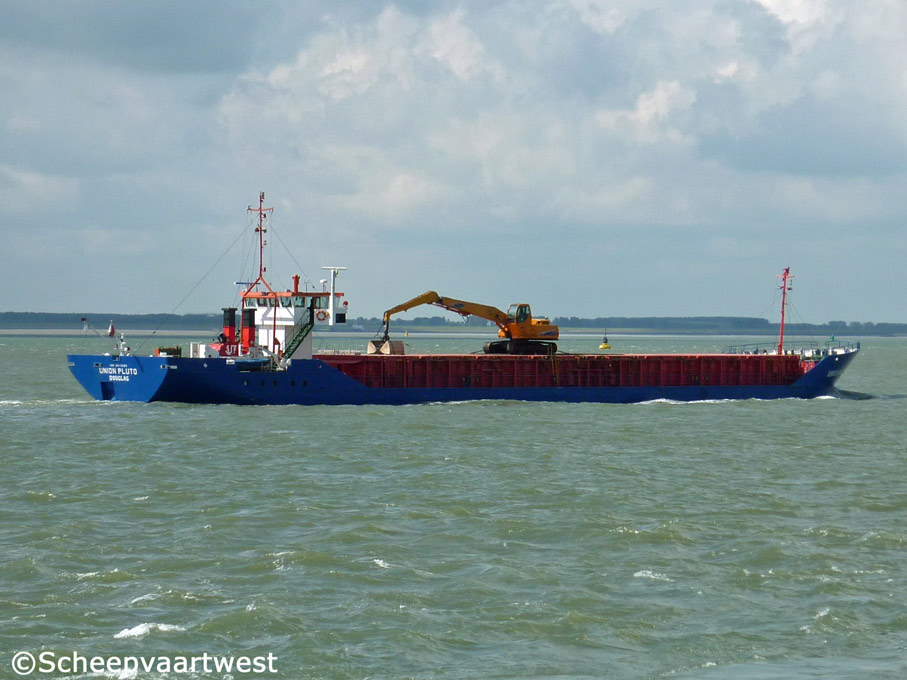

| Westerschelde 07 July 2012 |
|
Name |
UNION PLUTO |
|
Previous names |
1984 - 07.12.1987 Osterberg 1987 - 10.05.1994 Phoenix 1994 - 11.1995 Phoenix I 1995 - 07.2013 Union Pluto |
|
Type |
General cargo ship - Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
8415665 |
|
Call sign |
MJAB |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
1.530 t |
|
DWT |
2.324 t |
|
SWCC |
Summer: 2.120 t Winter: 2.050 t |
|
NT |
851 t |
|
Number of 20ft containers |
80 |
|
Length |
82,21 m overall 77,35 m registered |
|
Breadth |
11,30 m registered |
|
Draught |
Summer: 4,22 m loaded Winter: 4,14 m loaded 2,70 m ballast |
|
Air draft |
Loaded: 17,50 m Ballast: 19,00 m |
|
Forecastle |
6,55 m |
|
Poop |
13,60 m |
|
Depth |
5,40 m moulded |
|
Speed |
10,0 knots |
|
Built |
1984 |
|
Keel laid |
25.06.1984 |
|
Launch date |
26.08.1984 |
|
Date of completion |
10.1984 |
|
Builder |
Schiffswerft Hugo Peters Wewelsfleth Peters & Co. GmbH |
|
Yard number |
602 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x MWM TBD 440-6 K - 4 stroke 6 cylinder 230 x270 mm diesel engine - 441 kW at 700 rpm Year of manufacture: 1984 Manufacturer: Motoren-Werke Mannheim AG |
|
Propellers |
1x Solid propeller - aft at 244 rpm |
|
Electric installations |
1x Plant 380/220 V - 75 kVA 1x Plant 380/220 V - 115 kVA 1x Plant 380/220 V - 115 kVA |
|
Generators |
2x MAN main diesel generatorsets each 115 kVA / 103 kX 1x Deutz diesel generatorset 75 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 132 kW, forward |
|
Number of holds |
1 50,40 (40,40) x 9,00 m |
|
Cargo capacity |
Grain: 2.914 m³ Bales: 2.909 m³ |
|
Maximum loading |
Tank top: 11 t/m² Hatch covers: 1,5 t/m² |
|
Number of hatches |
1 50,40 x 9,00 m |
|
Type of hatch covers |
MacGregor |
|
Tank capacity |
Fuel oil: 60 m³ Water ballast: 999 m³ |
|
Lifting equipment |
3x Anchors weight each 1.020 kg Chain length: 357,50 m |
|
Crew size |
6 |
|
Manager |
Union Transport Group plc |
|
Owner |
Union Transport Group plc |
|
Special annotation |
Wheelhouse hydraulically lowerable |
|
Renamed |
2013 Pluto |
|
Last data update |
07 January 2014 |
