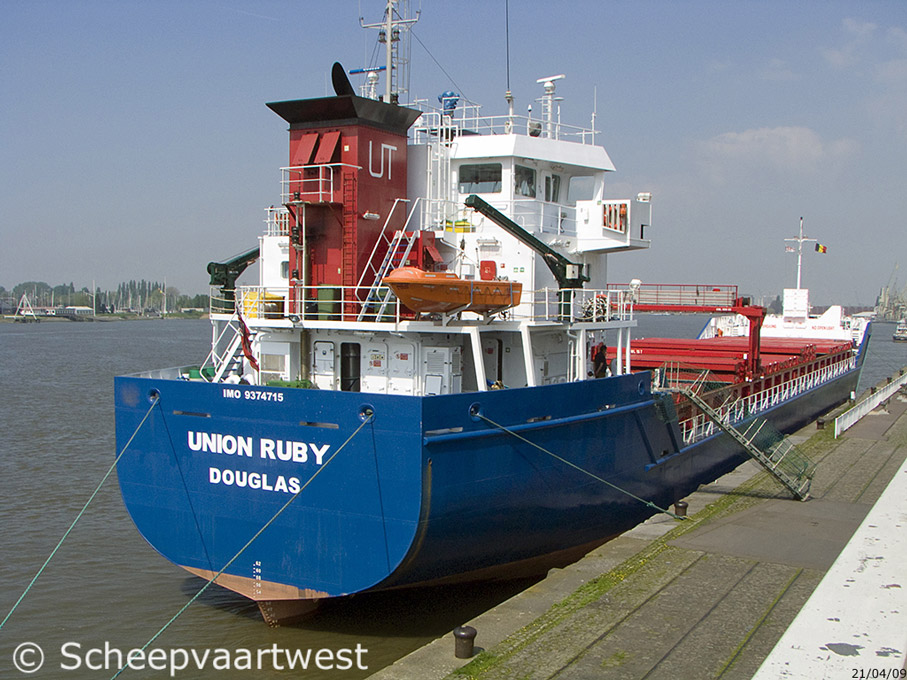

Union Ruby IMO 9374715 04
Antwerpen 21 April 2009



Name

UNION RUBY

Type

General cargo

IMO-number

9374715

Call sign

2AEK2

Flag

Isle Of Man - United Kingdom

Port of registry

Douglas

GT

2.967 t

DWT

Summer: 4.442 t

NT

1.554 t

Length

89,92 m overall

84,94 m between perpendiculars

84,82 m registered

Breadth

14,40 m moulded

Draught

5,80 m

Forecastle

7,22 m

Poop

11,10 m

Freeboard

2.050 mm

Depth

7,85 m moulded

Speed

Service: 11,0 knots

Built

2008

Keel laid

23.05.2006

Launch date

24.12.2007

Date of completion

29.05.2008

Builder

Chowgule & Company Pvt. Ltd. Shipbuilding Division Loutulim
Near Borim Bridge Loutulim Road
Loutulim , Goa 403 718
Republic of India

Yard number

C182

Hull material

Shipbuilding steel (standard)

Hull type

Single hull
Double bottom

Watertight bulkheads

2 moveable to 9 positions, grain bulkheads

Continuous decks

1

Main engine

1x Caterpillar MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm diesel engine-1.980 kW at 750 rpm

Year of manufacture: 2006

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x BERG controllable pitch propeller - aft at 158 rpm

Electric installations

1x Plant 400 V - 350 kVA

1x Plant 400 V - 390 kVA

1x Plant 400 V - 175 kVA

Shaft generator

1x Stamford - 390 kVA / 320 kW

Generators

2x SISU diesel generatorsets each 175 kVA / 150 kW

Emergency generator

1x Diesel generatorset 175 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 250 kW, forward

Cargo capacity

5.753 m³ / 205.463 ft³

Max. cargo load

On tank top: 15 t/m²

Hold dimension

56,55 x 10,20 x 7,99 m

Cargo hold ventilation

6 Air exchanges / hour

Type of hatch covers

Pontoon operated by gantry crane

Tank capacities

Ballast: 1.919 m³

Fresh water: 50 m³

Gas oil: 282 m³

Anchor equipment

3x Anchors weight each 2.100 kg

Anchor chain: 440,00 m

Manager

Union Transport Group plc
Imperial House
21/25 North Street
Bromley
Kent, BR1 1SJ
United Kingdom

Operator

Union Transport Group plc

Owner

Union Transport Group plc
Imperial House
21/25 North Street
Bromley
Kent, BR1 1SJ
United Kingdom

Renamed

2009 Berthold K
