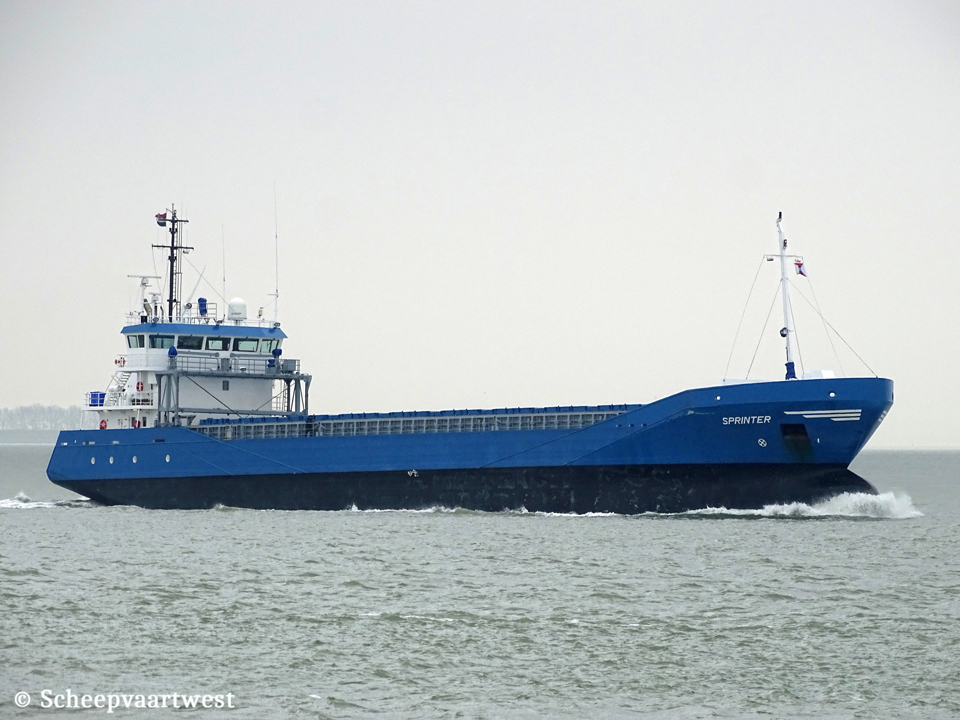

Sprinter IMO 9423657 04
Westerschelde 20 March 2019

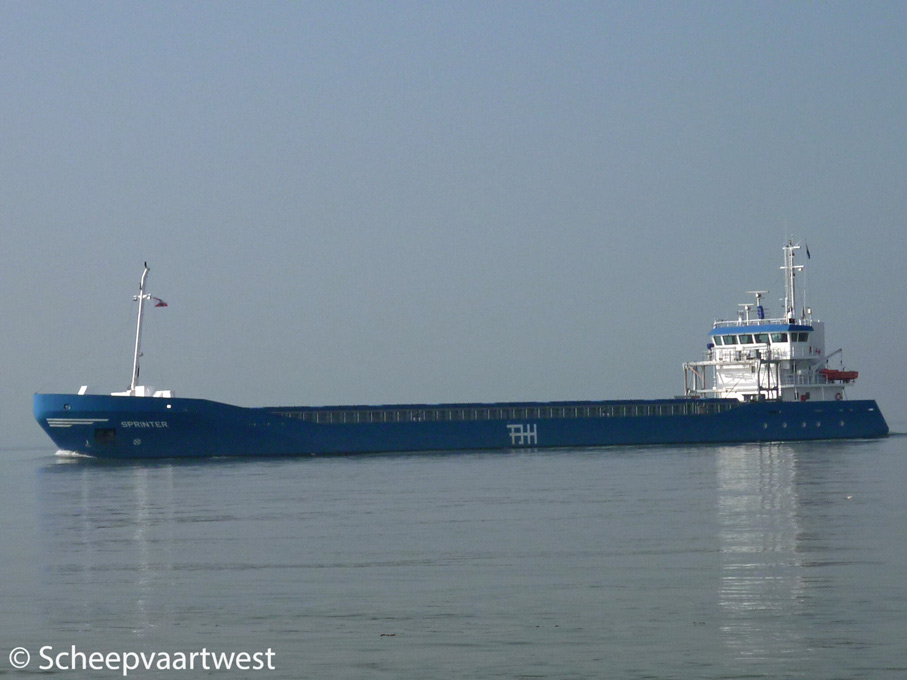

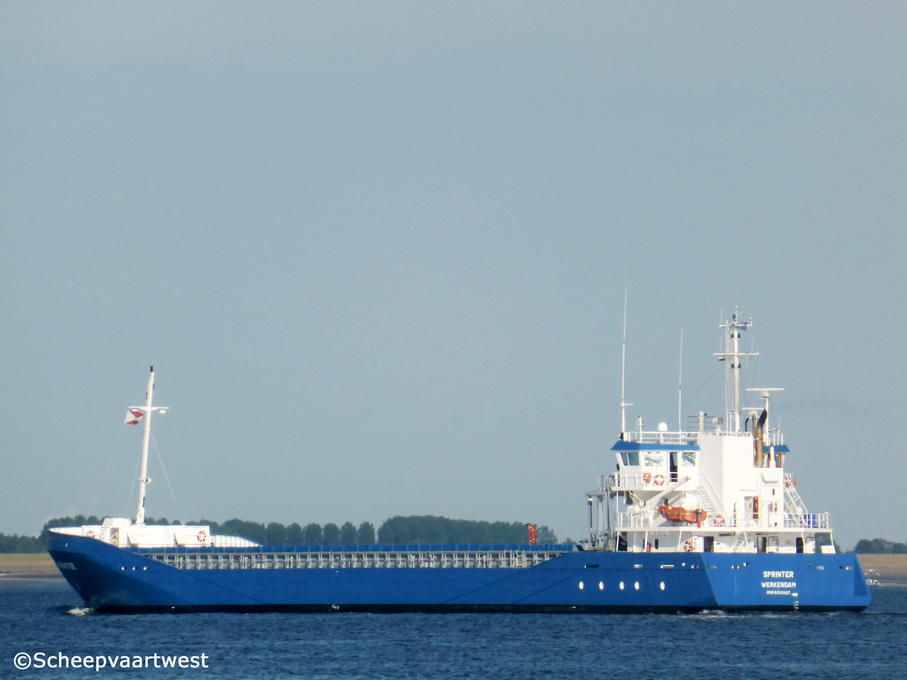

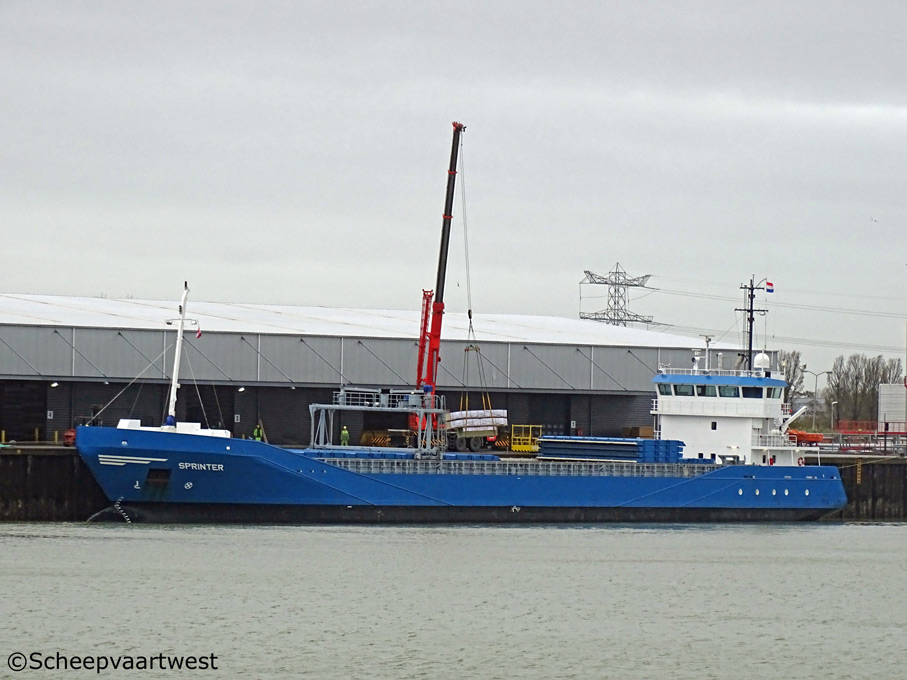

Sprinter 01   Sprinter 02   Sprinter 03
Westerschelde 24/03/12 Westerschelde 23/06/14 Vlissingen 01/12/15



Name

SPRINTER

Type

Multi-purpose dry cargo carrier - open hatch fully box - single deck

IMO-number

9423657

Call sign

PHOL

Flag

The Netherlands

Port of registry

Werkendam

GT

2.528 t

DWT

Summer: 3.611 t

DWCC

Summer: 3.350 mm

NT

1.053 t

Number of 20ft containers

157

Length

89,99 m overall

84,95 m between perpendiculars

Breadth

12,58 m

Draught

Max.: 5,43 m

Air draft

22,75 m in ballast

Depth

8,00 m moulded

Speed

13,0 knots

Built

2008

Keel laid

14/03/2007

Launch date

17/11/2007

Date of completion

11/04/2008

Builder casco

Leda d.o.o. shipyard

Korcula

Croatia

Builder completion

Scheepswerf Peters BV

Kampen

The Netherlands

Yard number

1209

Hull material

Steel

Continuous decks

1

Main engine

1x Wärtsilä 9L20 - 4 stroke single acting 9 cylinder 200 x 280 mm combustion engine 1.800 kW / 2.448 hp at 1.000 rpm

Builder: Wärtsilä Finland Oy

Propellers

1x Controllable pitch propeller

Generators

1x Sisu diesel generatorset 645 DSBIG - 180 kW at 1.500 rpm

1x Sisu diesel generatorset 420 DSRG - 70 kW at 1.500 rpm

Emergency generator

1x SiSu diesel generatorset

Bow thruster

1x Veth type VT-200 with E-motor - 250 kW at 1.500 rpm

Number of holds

1

60,00 x 10,30 x 8,15 m

Cargo hold capacity

Grain & bale: 4.927 m³ / 174.063 ft³

Hold ventilation

Electrical ventilaton 6 air changes per hour

Hold is fitted with dehumidifier system

Number of hatches

1

60,00 x 10,30 m

Tank capacities

HFO: 250 m³

MGO: 40 m³

Water ballast: 1.466 m³

Fresh water: 25 m³

Anchor equipment

Length: 385 m

Diameter: 28 mm

ISM & commercial manager

Wagenborg Shipping B.V.

Marktstraat 10

9934 CK Delfzijl

The Netherlands

Registered owner

François J. Hovestadt (Sprinter Shipping C.V.)

Reegreppel 2

4251DV Werkendam

Werkendam

The netherlands

Latest data adjustment

12 June 2022
