| Westerschelde 12 September 2017 |
 |
|
| Westerschelde 27/03/12 | |
|
Name |

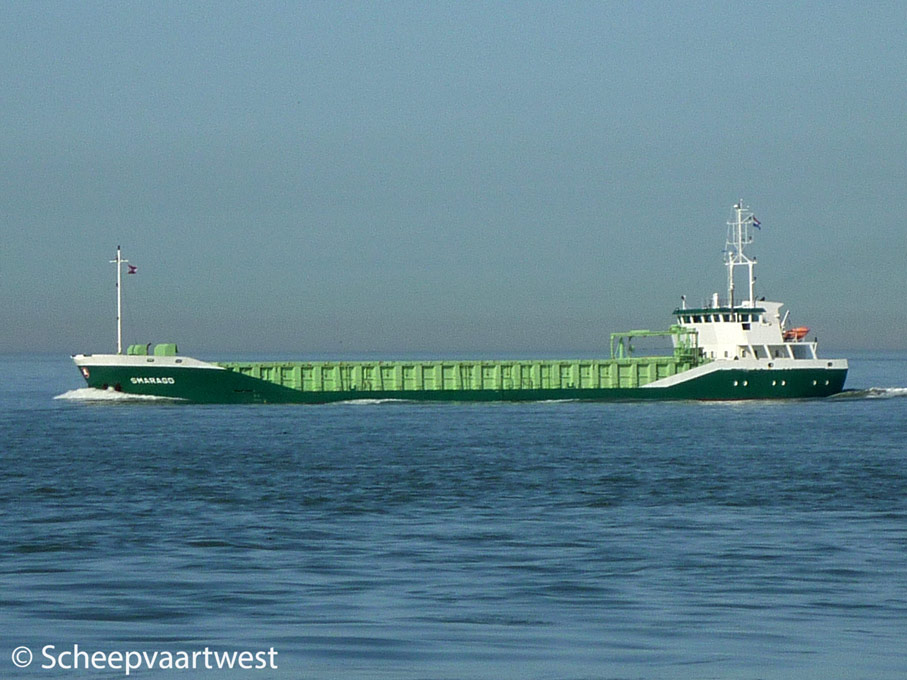

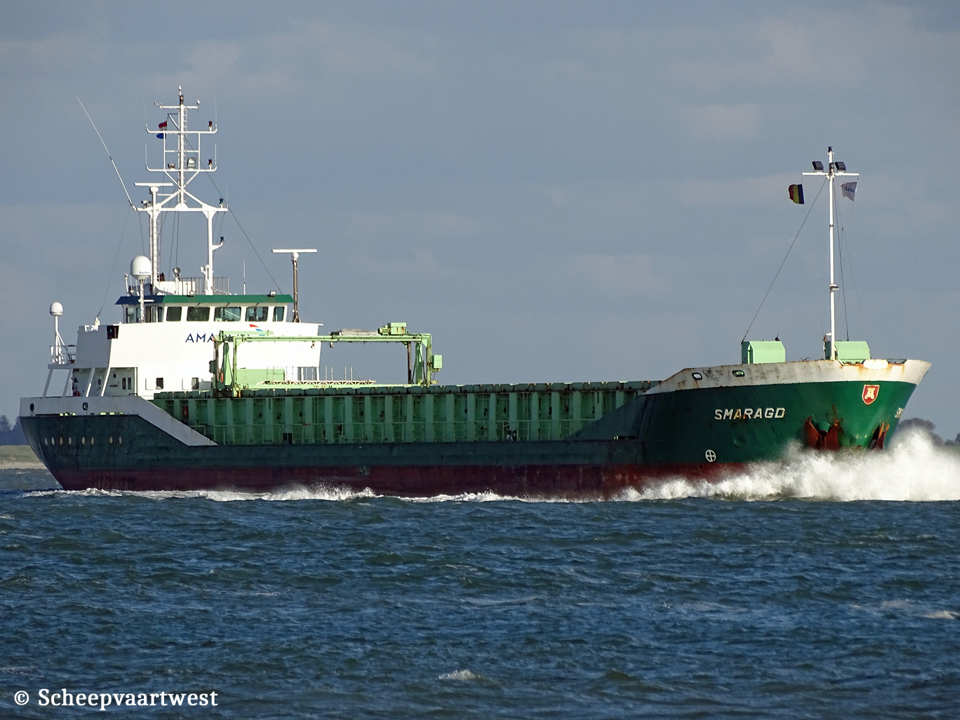

SMARAGD |
|
Type |
Multi-purpose dry cargo carrier - heavy cargo |
|
IMO-number |
9267704 |
|
Call sign |
PBKD |
|
Flag |
The Netherlands |
|
Port of registry |
Alkmaar |
|
GT |
2.339 t |
|
DWT |
Summer: 3.173 t |
|
NT |
1.294 t |
|
Number of 20ft containers |
154 |
|
Length |
87,99 m overall 84,98 m between perpendiculars |
|
Breadth |
12,50 m moulded 12,72 m extreme |
|
Draught |
4,64 m |
|
Air draft |
20,88 m |
|
Freeboard |
1.180 mm |
|
Depth |
6,00 m moulded |
|
Speed |
Service: 10,5 knots loaded |
|
Built |
2003 |
|
Launch date |
23/05/2003 |
|
Date of completion |
20/06/2003 |
|
Builder |
Barkmeijer Stroobos B.V. Stroobos The Netherlands |
|
Yard number |
298 |
|
Hull material |
Steel |
|
Watertight compartments |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 3516-B - 4 stroke single acting 16 cylinder combustion 170 x 2015 mm combustion engine 749 kW / 1.018 hp at 1.600 rpm Built: 2003 Builder: Caterpillar Tractor Company Inc., Peoria (Illinois) - U.S.A |
|
Propellers |
1x Screw propeller solid - aft at 248 rpm |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Generators |
2x Diesel generatorsets each 106 kVA - 85 kW - 129 hp |
|
Emergency generator |
1x Diesel generatorset 62 kVA - 50 kW - 80 hp |
|
Bow thruster |
1x 200 kW |
|
Number of holds |
1 63,00 x 10,20 x 7,45 m |
|
Total capacity of holds |
4.723 m³/ 163.000 ft³ |
|
Number of hatchways |
1 61,30 x 10,20 m |
|
Manager |
De Bock Maritiem B.V. Helderseweg 54A 1817 BB Alkmaar The Netherlands |
|
Previous manager |
03/2003 - 06/2008 Wagenborg Shipping B.V., Delfzijl - The Netherlands |
|
Owners |
Smaragd B.V. Alkmaar The Netherlands |
|
Renamed |
01/2023 Amadeus Smaragd The Netherlands, Druten - Call sign: PDKD Manager: HGK Shipping Rotterdam B.V, Rotterdam - The Netherlands Owner: Amadeus Gold B.V., Druten - The Netherlands |
|
Last data update |
08 February 2024 |
