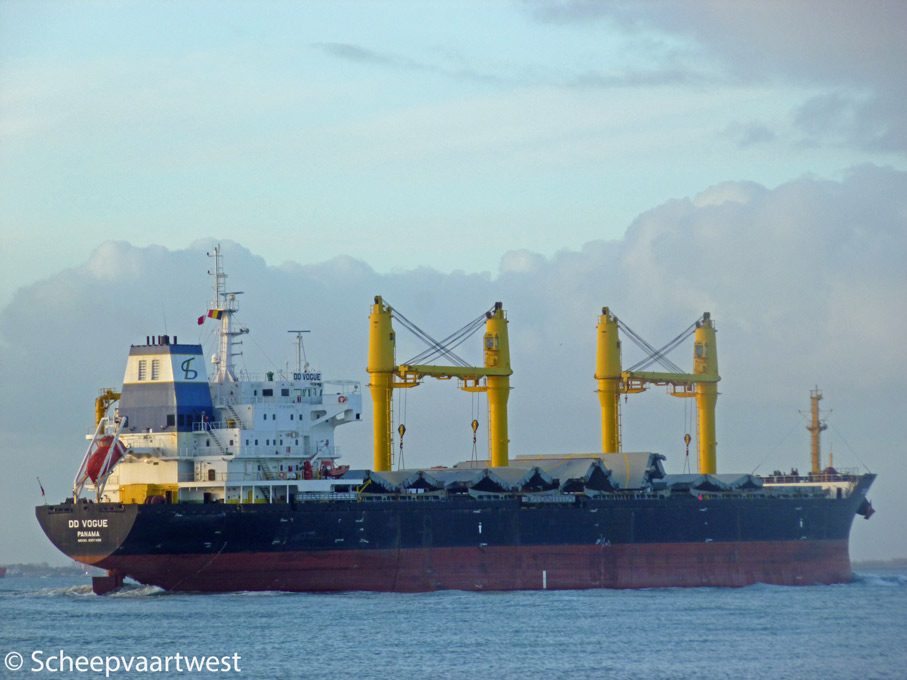

| Westerschelde 30 November 2013 |
|
Name |
DD VOGUE |
|
Type |
Bulk carrier |
|
IMO-number |
9357456 |
|
Call sign |
3EPG4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
17.136 t |
|
DWT |
Summer: 26.495 t |
|
NT |
8.917 t |
|
Length |
159,00 m overall |
|
Breadth |
27,00 m |
|
Draught |
9,92 |
|
Reg. dimensions |
151,09 x 27,00 x 14,00 m |
|
Rule dimensions |
150,00 x 27,00 x14,00 m |
|
Freeboard |
4.123 mm |
|
Depth |
14,00 m registered |
|
Speed |
14,3 knots |
|
Built |
2008 |
|
Keel laid |
30.07.2007 |
|
Launch date |
29.11.2007 |
|
Date of completion |
20.02.2008 |
|
Builder |
Sung Dong Shipbuilding & Marine Engineering Date of Manufacturer: 05.2007 Manufacturer: STX Engine Co., Ltd., Changwon - South Korea |
|
Yard number |
S1022 |
|
Hull material |
Steel |
|
Watertight bulkheads |
Transverse: 6 |
|
Continuous decks |
1 |
|
Main engine |
1x B&W 6S42MC-MK7 - 2 stroke single acting 6 cylinder 420 x 1.764 mm diesel engine - 6.480 kW at 136,0 rpm |
|
Propellers |
1 |
|
Boilers |
Date of Manufacturer: 06.2007 Manufacturer: Kang Rim Iid. Co., Ltd., Changwon - South Korea |
|
Generators |
4x YANMAR 6 NI8AL-UV diesel generatorsets each 500 kW / 625 kVA -445 Volt |
|
Humber of holds |
5 Hold 1: 22,40 x (16,00 FD - 26,40 AFT) Hold 2: 22,40 x 26,40 m Hold 3: 24,00 x 26,40 m Hold 4: 24,00 x 26,40 m Hold 5: 22,40 x 26,40 m |
|
Cargo capacity |
1.220.285 ft³/ 34.552 m³ 1.159.270 ft³ / 32.825 m³ |
|
Number of hatches |
5 Hatch 1: 12,00 x 14,40 m Hatch 2: 16,00 x 19,20 m Hatch 3: 16,00 x 19,20 m Hatch 4: 16,00 x 19,20 m Hatch 5: 16,00 x 19,20 m Weather tight, Hydraulic Fore & Aft folding type operated by external hydraulic cylinders |
|
Strength of the top tanks |
22 t/m² for Holds N° 1, 3 & 5 |
|
Ventilation |
Vessel has exhaust mechanical ventilation in the holds, with rate 6 air changes per hour |
|
Tank capacities |
Fuel oil: 1.360,70 m³ Fresh water: 201,90 m³ Water ballast: 8.586,30 m³ |
|
Cargo gear |
4x Cranes - SWL 30,0 t installed in center on upper deck between each holds. Supplied by 4x 10 m³ grabs (radio operated) |
|
Manager |
D.D Shipping Ltd., S.A. |
|
Registered owner |
Sea Shelter Maritime Co., S.A. Republic of Panama |
|
Last update |
11 December 2013 |
