Ivory Girl 05

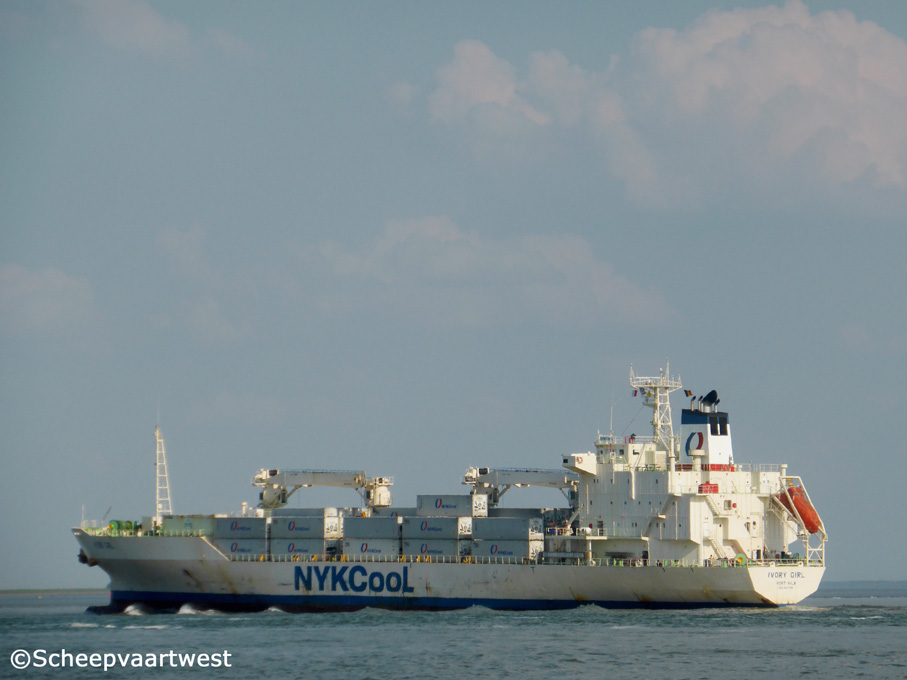

Westerschelde 15 May 2014



Ivory Ace 08   Ivory Girl 01   Ivory Girl 04   Ivory Girl 03

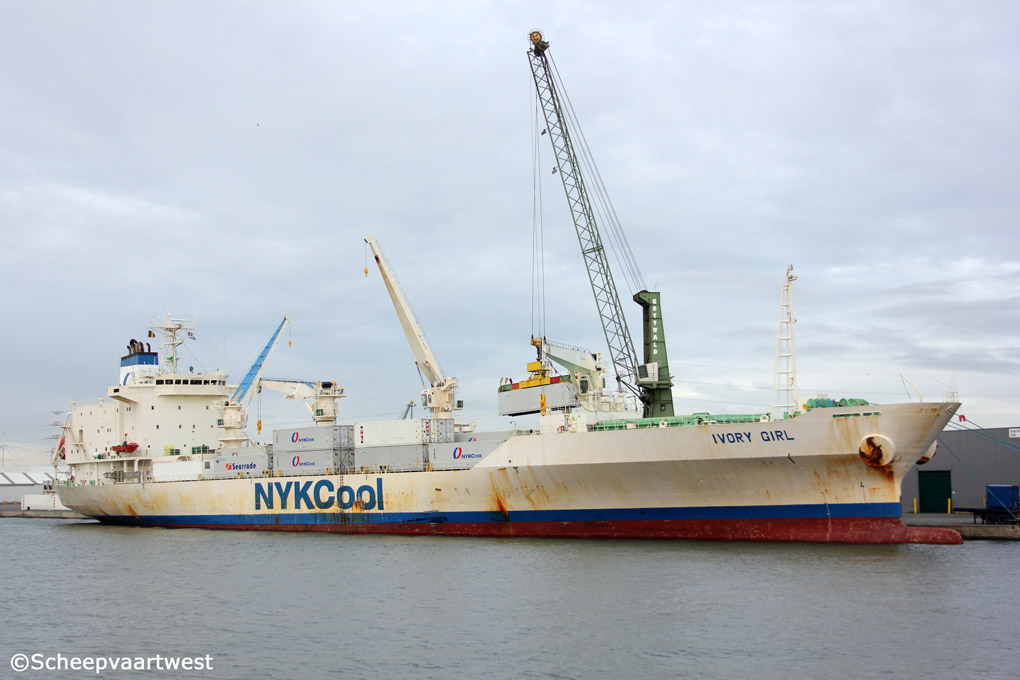

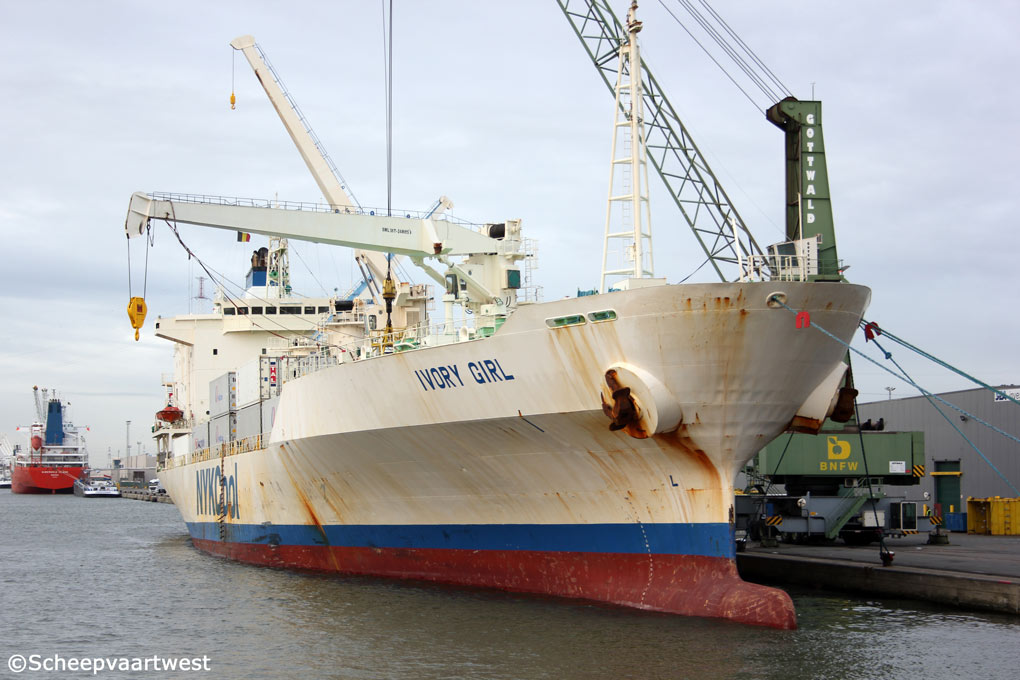

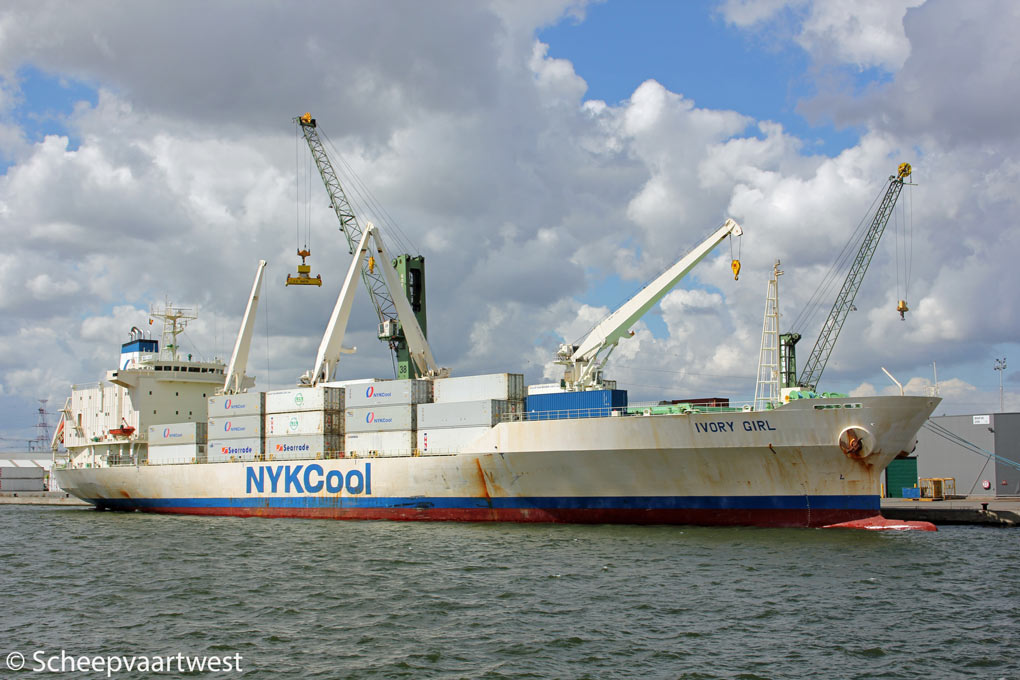

Antwerpen 13/08/13 Antwerpen 13/08/13 Antwerpen 31/12/13 Antwerpen 31/12/13



Name

IVORY GIRL

Type

Refrigerated cargo ship sailing near Vlissingen

IMO-number

9143099

Call sign

YJQQ9

Flag

Vanuatu

Port of registry

Port Vila­

GT

11.438 t

DWT

Summer: 10.379 t

NT

5.901 i

Number of 20ft containers

258

Reefer capacity

109

Length

154,00 m overall

Breadth

24,00 m

Draught

Summer: 9,02 m

Moulded L x B x D

144,60 x 24,00 x 13,30 m

Registered L x B x D

144,91 x 24,00 x 13,30 m

Freeboard

4.318 mm

Depth

13,30 m

Speed

Max: 23,1 knots

Service: 21,0 knots

Built

1996

Keel laid

18.05.1996

Launch date

27.08.1996

Date of completion

09.12.1996

Builder

Shikoku Dockyard Co., Ltd.
Takamatsu
Japan

Yard number

881

Hull material

Steel

Main engine

1x Burmeister & Wain-Mitsui 6L60MC - 2 stroke single acting 6 cylinder 600 x 1.944 mm diesel engine - 11.473 kW at 123,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 510 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 3.46 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

5x Diesel generatorsets 3.680 kVA

Deck area

6.518 m²

Reefer cargo capacity

16.034 m³

Tank capacities

Fuel oil: 1.865 m³

Fresh water: 286 m³

Water ballast: 1.529 m³

Cargo gear

2x Cranes - SWL 8,0 t + 2x cranes - SWL 36,0 t

Manager

Masumoto Shipping Co., Ltd.

Operator

NykCool
Katarinavägen 17
116 45 Stockholm
Sweden

Owner

Masumoto Shipping
Akashi
Japan

Registered owner

Prosper World Marine Co., Ltd.

Vanuata

Latest data adjustment

05 June 2014
