| Westerschelde 06 June 2012 |
 |
 |
 |
 |
 |
 |
|||||

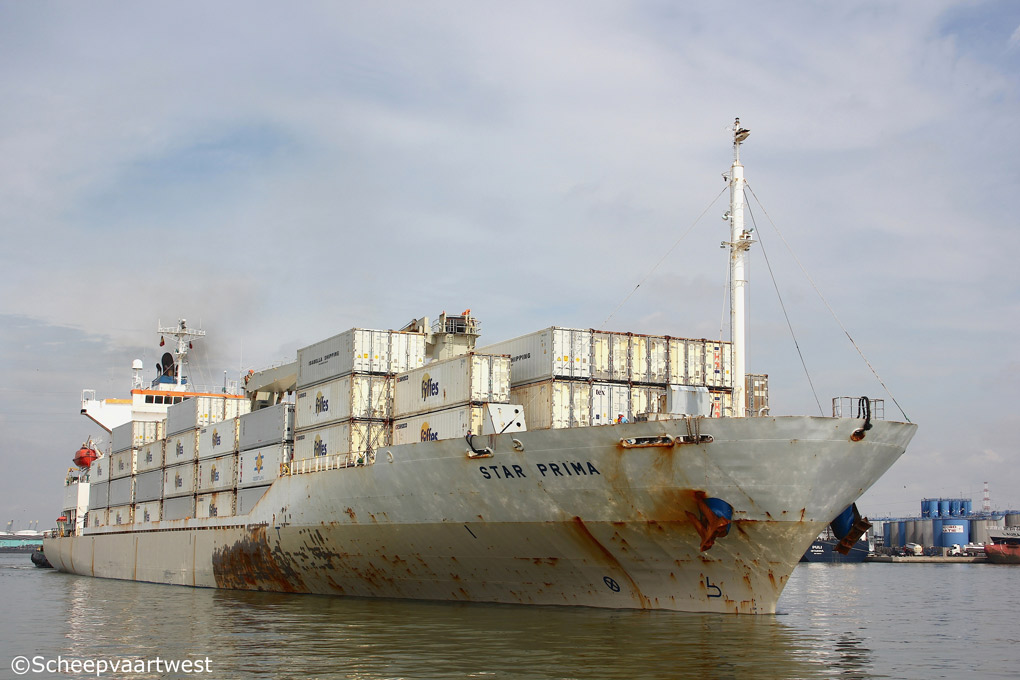

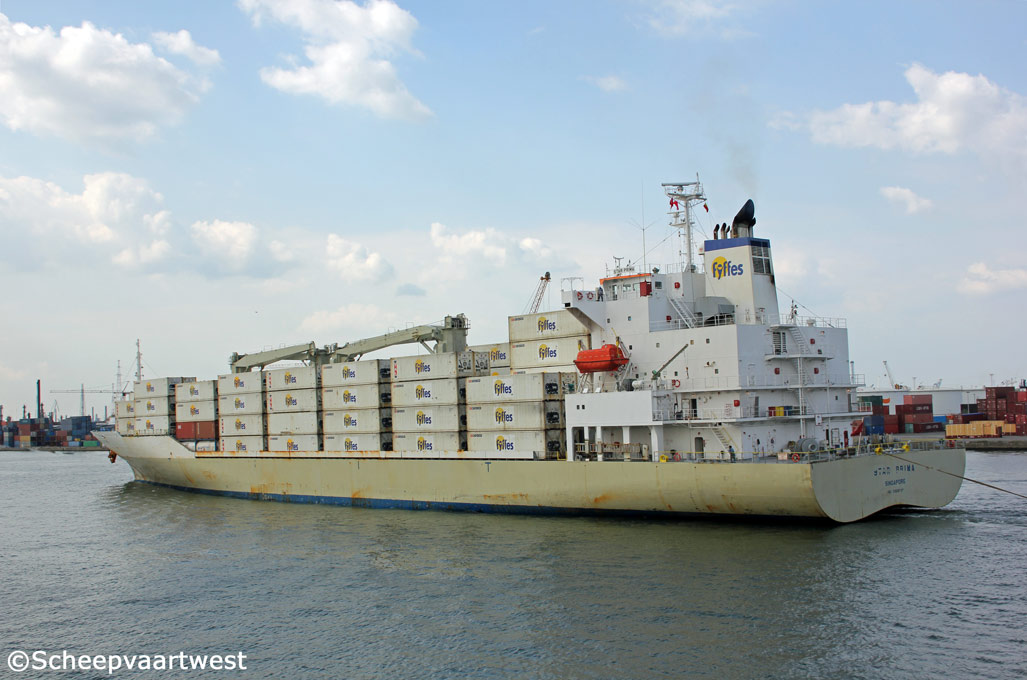

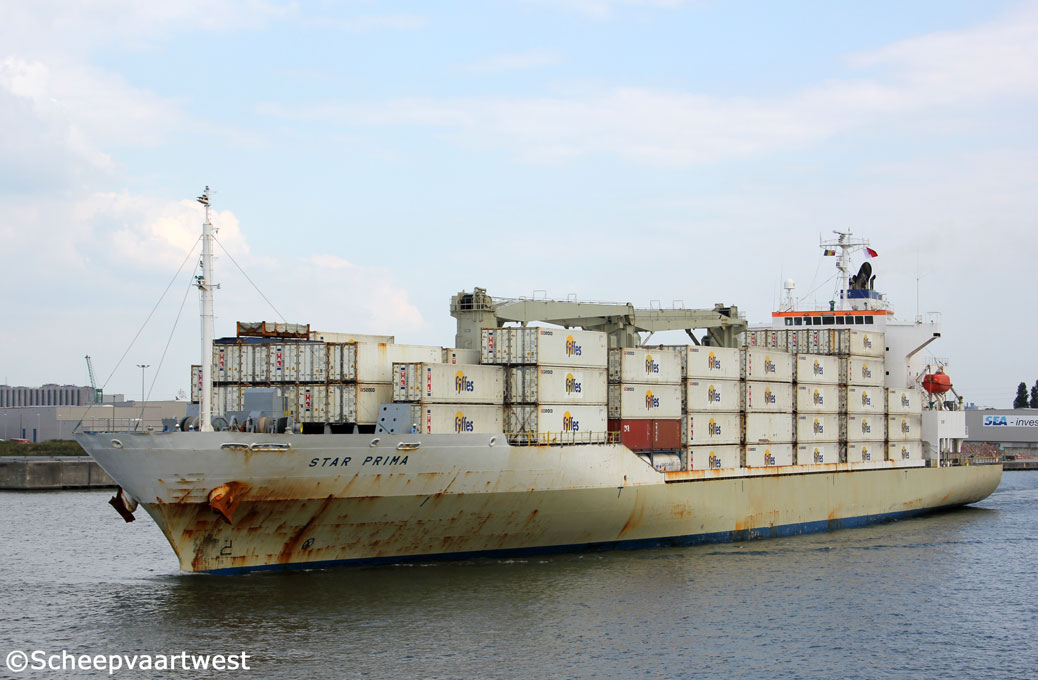

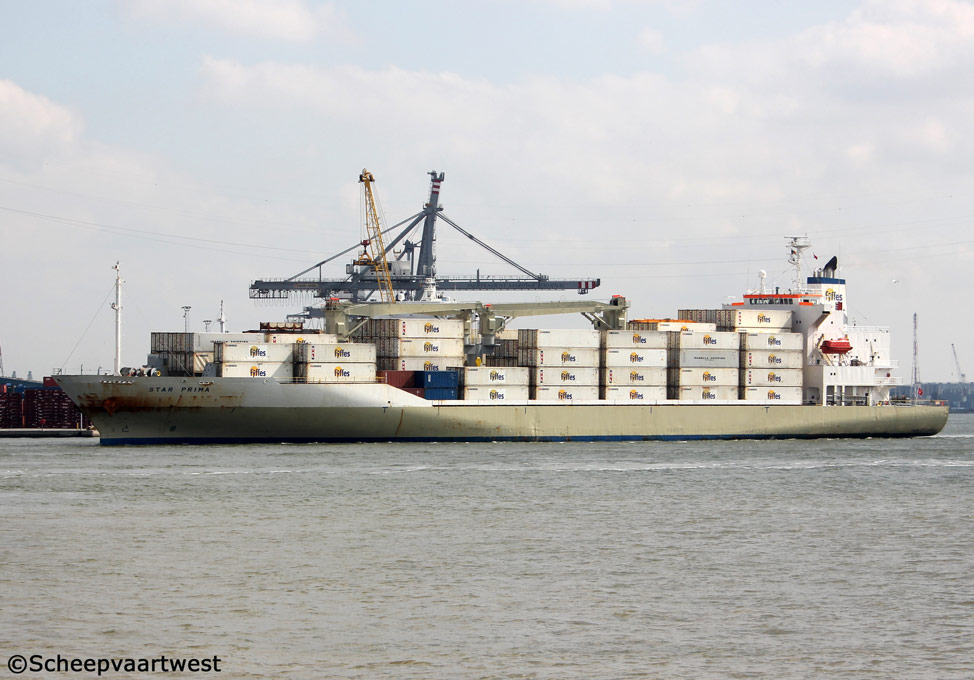

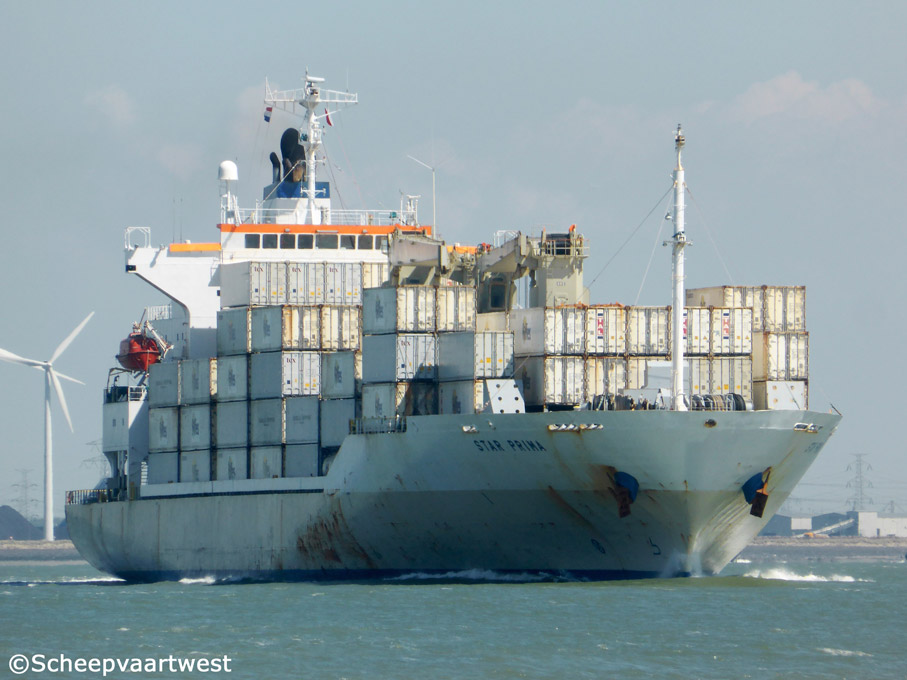

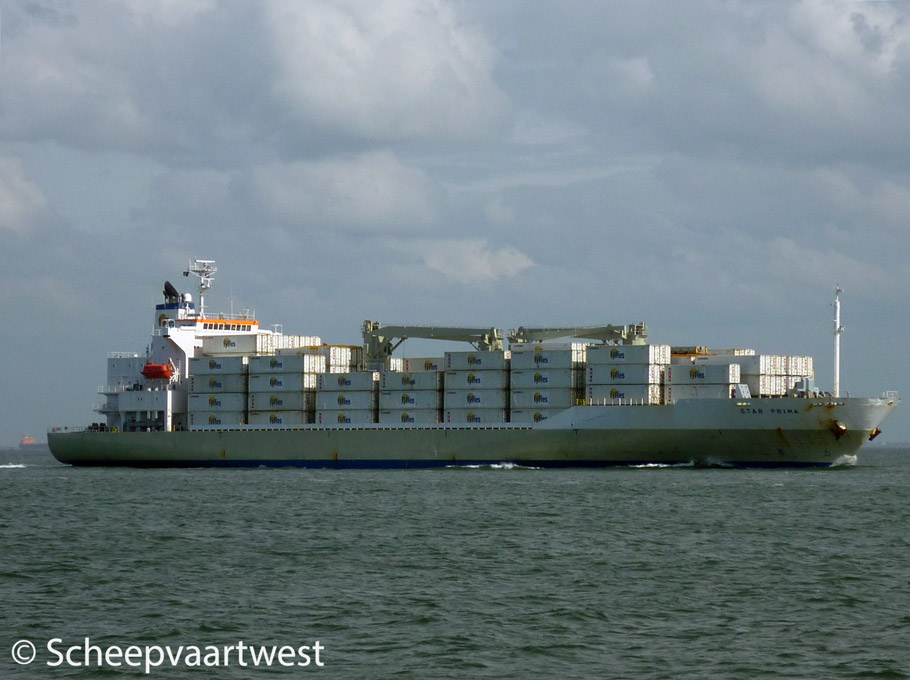

| Westerschelde 28/08/13 | Westerschelde 28/08/13 | Westerschelde 30/06/14 | Westerschelde 21/05/15 | Antwerpen 27/08/14 | Antwerpen 11/08/15 |
|
Name |
STAR PRIMA |
|
Location |

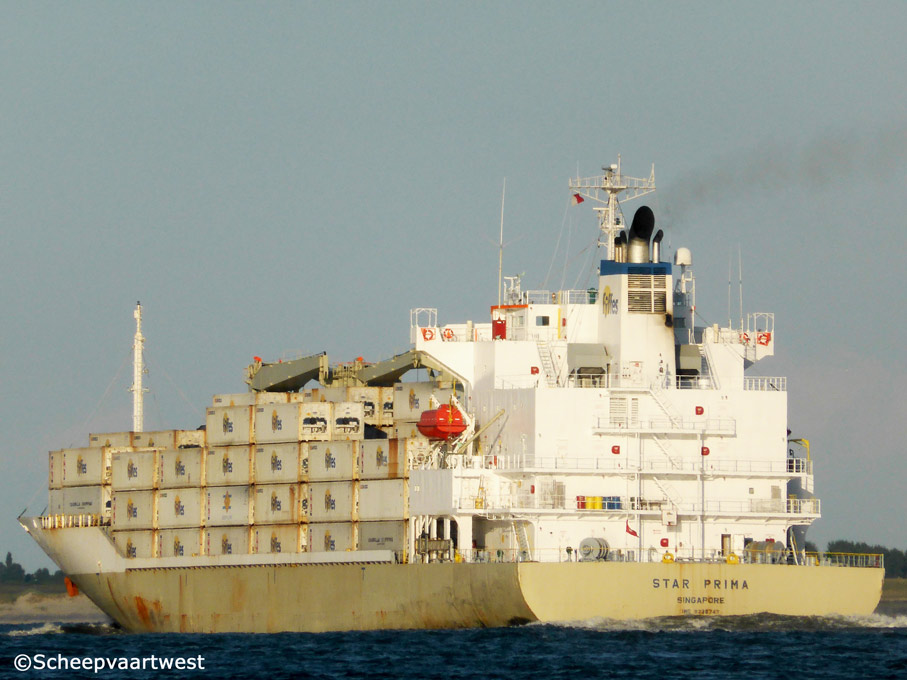

Westerschelde 06 June 2012 sailing near Vlissingen |
|
Type |
General cargo ship - Reefer - Designed for carriage of refrigerated cargoes of minimum temperature -30 degree C - Designed for carriage of containers |
|
IMO-number |
9338747 |
|
Call sign |
D5HW4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flag |
Republic of Singapore, Singapore City - Call sign 9V9358 |
|
GT |
14.030 t registered Suez: 14.867 t |
|
DWT |
Summer: 13.189 t on 9,72 m draft |
|
NT |
6.724 t registered Suez: 12.313 t Panama: 12.244 t |
|
Number of 20ft containers |
On hatch covers: 140 On deck: 184 + 58 FEU Under deck: 112 436 |
|
Number of 40ft containers |
On hatch covers: 70 On deck: 150 Under deck: 56 276 |
|
Reefer capacity |
200 Reefer sockets on deck Max.: 171 |
|
Length |
162,50 m overall |
|
Breadth |
26,00 m extreme |
|
Draught |
Summer: 9,72 m |
|
Moulded L x B x D |
150,00 x 26,00 x 14,10 m |
|
Registered L x B x D |
151,49 x 26,00 x 14,10 m |
|
Freeboard |
Summer: 4.421 mm |
|
Speed |
22,0 knots banana laden on 7,5 m draft |
|
Built |
2006 |
|
Keel laid |
07.07.2006 |
|
Launch date |
07.10.2006 |
|
Date of completion |
22.12.2006 |
|
Builder |
Shikoku Dockyard Co., Ltd. Japan |
|
Yard number |
1031 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 7 cylinder 600 x 2.400 mm diesel engine - 15.820 kW at 105,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. |
|
Propellers |
1 |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Shaft Diameter: 595 mm |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation:3;53 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
5x Diesel generatorsets 6.090 kVA |
|
Number of holds |
4 |
|
Number of hatches |
4 |
|
Cargo capacity |
Bales: 14.477 m³ |
|
Tank capacities |
Fuel oil: 2.624 m³ Fresh water: 407 m³ Water ballast: 2.846 m³ |
|
Ventilation |
90 Air circulations per hour |
|
Cargo gear |
2x Hydraulic cranes - SWL 8,0 t each 2x Hydraulic cranes - SWL 40,0 t each |
|
Manager |
SIEM Ship Management Sp. z o.o. |
|
Previous managers |
Cleanseas Shipmanagement Inc. Star Reefers Poland Sp.z.o.o. - T. Wendy Str. 15, 81-341 Gdynia - Poland |
|
Operator |
Fyffes |
|
Registered owner |
SSI Shipowning I Inc. |
|
Previous registered owner |
Grace Ocean Private Limited |
|
Latest data adjustment |
23 January 2016 |
