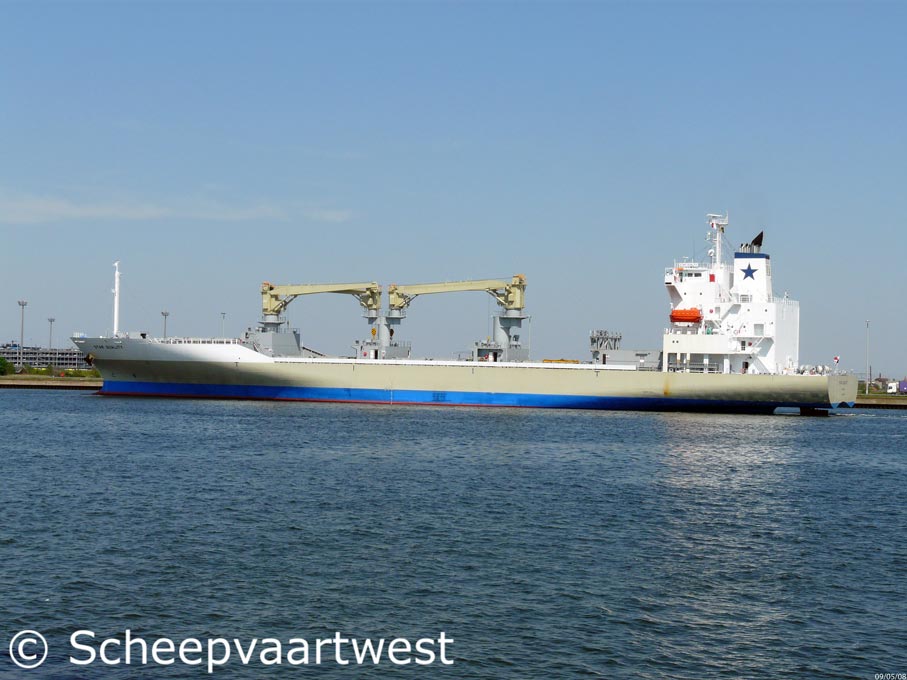

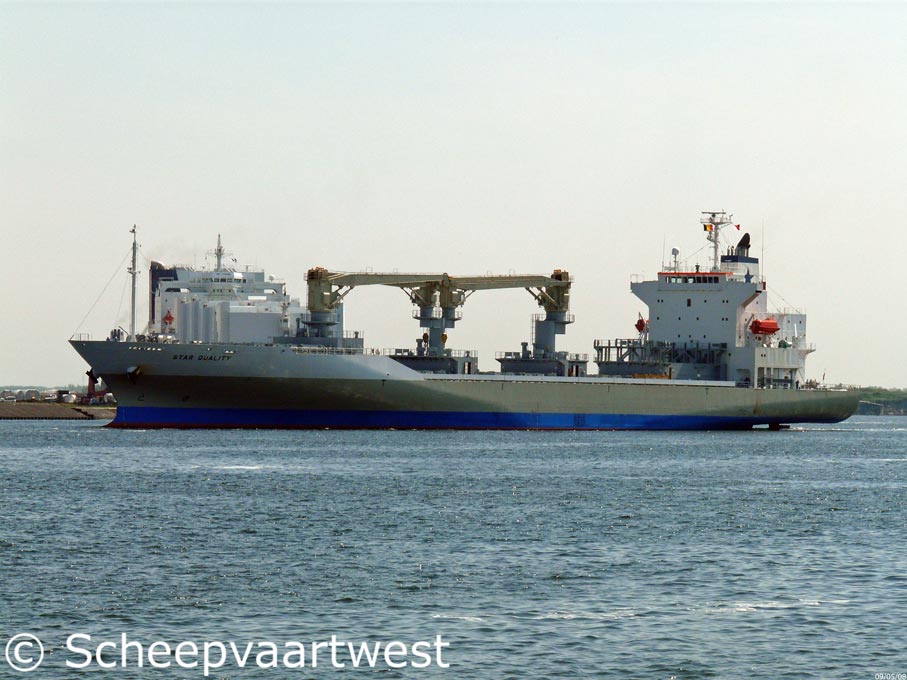

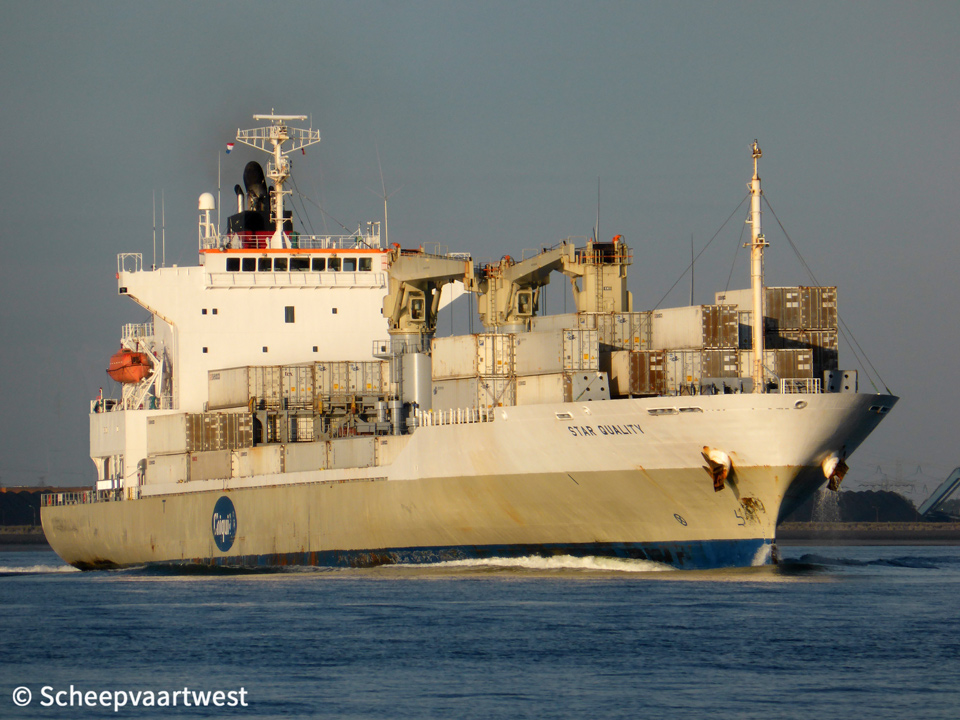

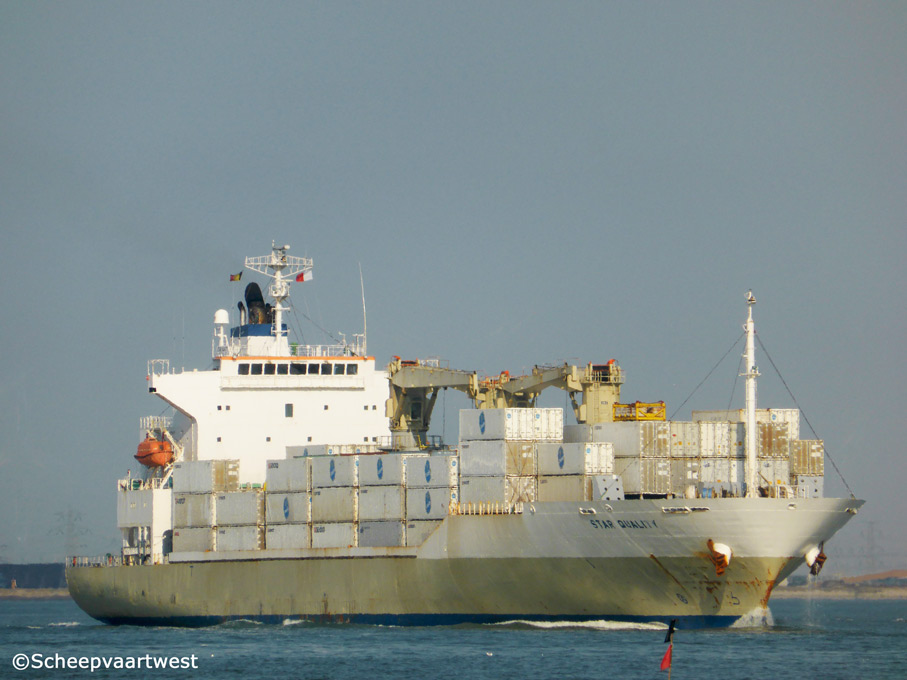

Star Quality - IMO 9438494

Name

STAR QUALITY

Type

Reefer Cargo / Vehicles

Designed for carriage of refrigerated cargoes of minimum temperature: -30 degree C Designed for carriage of Containers

IMO-number

9438494

Call sign

9V9355

Flag

Republic of Singapore

Port of registry

Singapore

Previous flag

Republic of Panama - call sing: 3EQA5

GT

14.030 t registered

Suez: 14.856 t

DWT

13.193 t

NT

6.724 t registered

Suez: 12.285 t

Panama: 12.244 t

Length

162,50 m

Breadth

26,00 m moulded

Moulded L x B x D

150,00 x 26,00 x 14,10 m

Registered L x Bx D

151,49 x 26,00 x 14,10 m

Draught

Summer: 9,72 m

Freeboard

Summer: 4.421 mm

Depth

14,10 m

Speed

Trial: 24,1 knots

Built

2008

Keel laid

17.10.2007

Launch date

09.01.2008

Date as completed

25.03.2008

Builder

Shikoku Dockyard Co., Ltd.
Takamatsu
Japan

Yard number

1041

Hull

Single hull

Main engine

1x Mitsui/MAN-B&W 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm diesel engine - 15.820 kW at 105,0 rpm

Manufacturer: Mitsui Engineering & ShipbuildinG Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 595

Number of screws

1

Boiler

1x Auxiliary vertical boiler - 6,9 bar
Evaporation: 3,53 t/h
Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

5x Generators - 6.090 kVA

Number of holds

4

Cargo capacity

Bale: 17.498 m³

Cars: 551

20 Feet container: 436

40 Feet container: 276

Reefer containers: 200

Number of hatches

4

Temperature range

+ 15 / -25°C

Cranes

2x Cranes - SWL 8,0 t each

2x Cranes - SWL 40,0 t each

Ventilation

90 air circulations per hour

Tank capacities

Fuel oil: 2.625 m³

Fresh water: 414 m³

Water ballast: 2.846 m³

Manager

Cleanseas Shipmanagement, Inc.

Previous manager

Nissen Kaiun Co., Ltd.

Previous owner

Sun Lanes Shipping S.A
Panama
Republic of Panama

Registered owner

Grace Ocean Private Limited

Previous registered owner

Sun Lanes Shipping S.A.
Nikko Kisen Co., Ltd.

Latest data adjustment

16 February 2015
