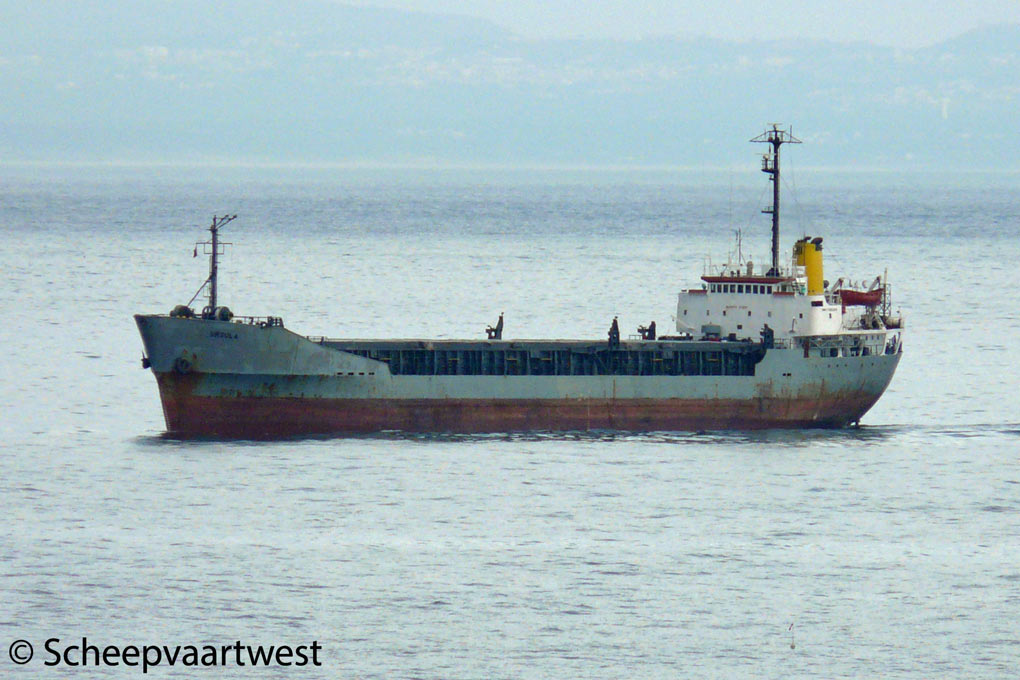

Ursula - IMO 7352476

Name

URSULA

Previous names

1974 - 1976 Juno I

1976 - 1982 Satsuky

1982 - 03.2005 Ursula Leonhardt

Type

General cargo

IMO-number

7352476

Call sign

V3AU3

Flag

Belize

Port of registry

Belize City

GT

4.382 t

DWT

Summer: 6.874 t

NT

2.226 t

Displacement

9.145 t

Light ship

2.271 t

Number of 20ft containers

193

Length

104,01 m overall

97,92 m between perpendiculars

Breadth

15,96 m overall

16,33 m moulded

Draught

Summer: 7,34 m

Depth

9,26 m moulded

Speed

12,7 knots

Built

1974

Refit: 1992 Estaleiros Navais de Viana do Castelo, Portugal

Date of completion

01.03.1974

Builder

Imabari Shipbuilding
Imabari
Japan

Yard number

316

Hull material

Steel

Watertight bulkheads

7

Number of decks

6

Main engine

1x HANSHIN DIESEL 6LU50A - 2.810 kW /3.800 hp

Propellers

1x Fixed pitched solid propeller - 4 blades

Generators

2x Iveco 2810 main diesel generatorsets each 441 kW / 600 hp at 1.800 RPM

Number of holds

3

Hold 1: 16,90 x 12,50 x 10,50 m
Hold 2: 25,60 x 12,5 0x 10,50 m
Hold 3: 19,00 x 12,50 x 10,50 m

Hold capacity

Hold 1: 2.035 m³ / 71.897 ft³

Hold 2: 3.453 m³ / 121.925 ft³

Hold 2: 2.508 m³ / 88.583 ft³

Total: 7.996 m³ / 282.402 ft³

Number of hatches

3

Hatch 1: 16,90 x 13,00 m

Hatch 2: 25,50 x 13,00 m

Hatch 3: 18,90 x 13,00 m

Max permitted loads

Deck load: 1,75 t/m²
Tank top load: 12,0 t/m²

Tank capacities

Total ballast: 2.601,45 t
Fuel oil: 538,0 t
Diesel oil: 50,0 t
Lub oil: 6,0 t

Manager

Transadriatic
Umag
Croatia

Owner

Transadriatic D.o.o.

Obala J.B. Tita 3
Umag, 52470
Croatia

Registered owner

Star War Shipping Co., Ltd.

Trust House
112 Bonadie Street, Kingstown
Saint Vincent and The Grenadines

c/o Nova Mar Ltd.

Corso del Popolo 96
Mestre 30176, Venezia
Italy

Last update

25 June 2013
