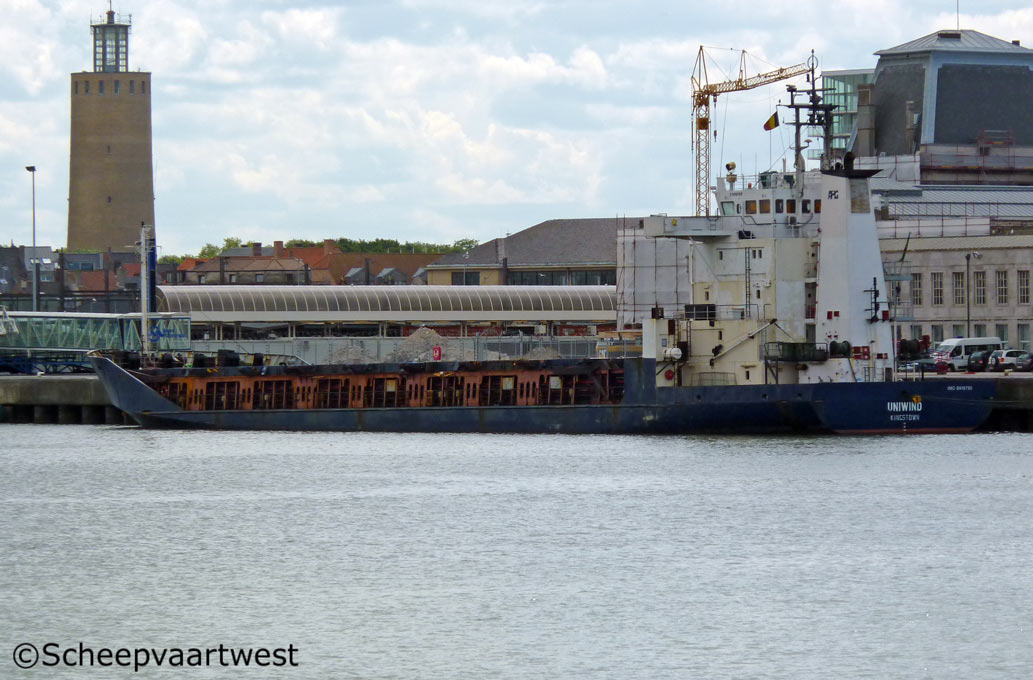

Uniwind 02
Oostende 05 August 2012



Name

UNIWIND

Previous names

Ranfoss
Effort
Jana
Somers Isles
Jana

Type

General cargo ship - Equipped for carriage of containers

IMO-number

8919790

Call sign

J8B4626

Flag

Saint Vincent & Grenadines

Port of registry

Kingstown

GT

3.125 t

DWT

Summer: 4.540 t

Winter: 4.360 t

NT

1.619 t

Number of 20ft containers

256

Length

89,54 m overall

82,44 m registered

Breadth

16,00 m registered

Draught

6,142 m

Air Draft

25,50 m ballast

Forecastle

6,44 m

Freeboard

Summer: 1.544 mm

Depth

7,80 m moulded

Speed

13,0 knots ballast

Built

1990

Keel laid

09.03.1990

Launch date

21.09.1990

Date of completion

12.1990

Builder

Kröger Werft GmbH & Co. KG
Hüttenstr. 25
24790 Schacht-Audorf
Federal Republic of Germany

Yard number

1524

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

2

Main engine

1x MAN B&W 12 V 28/32 A - 4 stroke 12 cylinder 280 x 320 mm diesel engine - 2.640 kW at 750 rpm

Reduced power: 1.490 kW

Year of manufacture: 1990

Manufacturer: MAN B&W Diesel GmbH
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propellers

1x Controllable pitch propeller type Alfa Diesel - aft at 234 rpm

Electric installations

1x Plant 400/220 V - 130 kVA

1x Plant 400/220 V - 265 kVA

1x Plant 400 V - 490 kVA

Shaft generator

1x 490 kVA

Generators

1x Diesel generatorset 130 kVA

1x Diesel generatorset 265 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 295 kW, forward

Number of holds

1

Number of hatches

1

Type: Folding / 8 sections

dimension: 51,65 x 13,60 m

Max permissible loads

On tank top: 9,8 t/m²

On hatch covers: 2,7 t/m²

On deck: 2,0 t/m²

Cargo capacity

Bale: 5.772 m³ - 203.836 ft³

Grain: 5.851 m³ - 206.626 ft³

Tank capacities

Fuel oil: 284 m³

Ballast water: 1.355 m³

Anchor Equipment

3x Anchors weight each 2.280 kg

Chain length: 467,50 m

Manager

ARG Shipping SIA
21, Ernesta Birznieka-Upisa iela
1011 Riga
Latvia

Registered owner

Tardis Shipping Co. Ltd.
Withfield Tower, third Floor 4792 Coney Drive
Belize City
Belize
