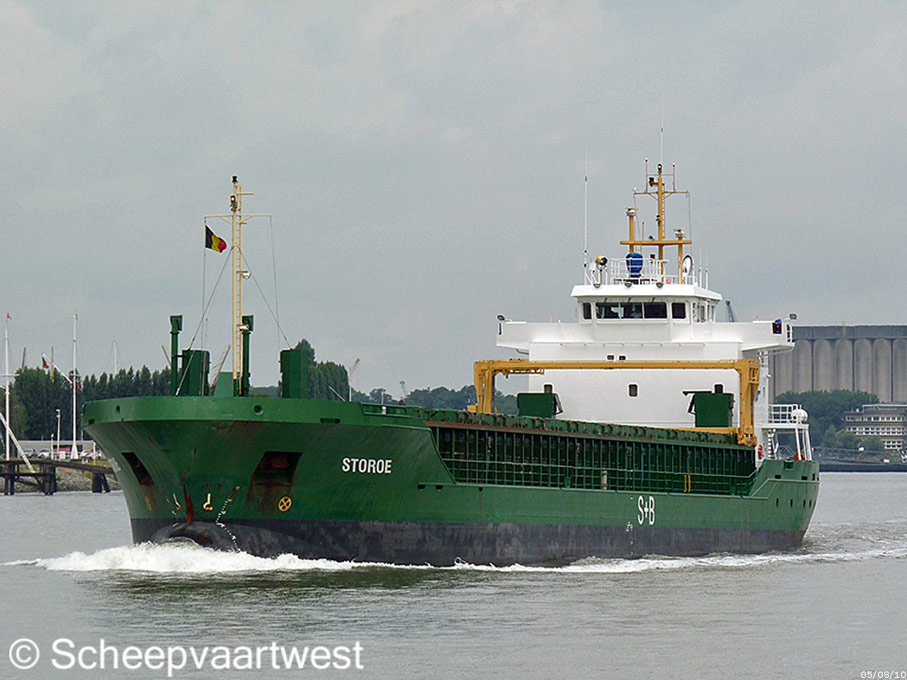

Storoe 06
Antwerpen 05 August 2010

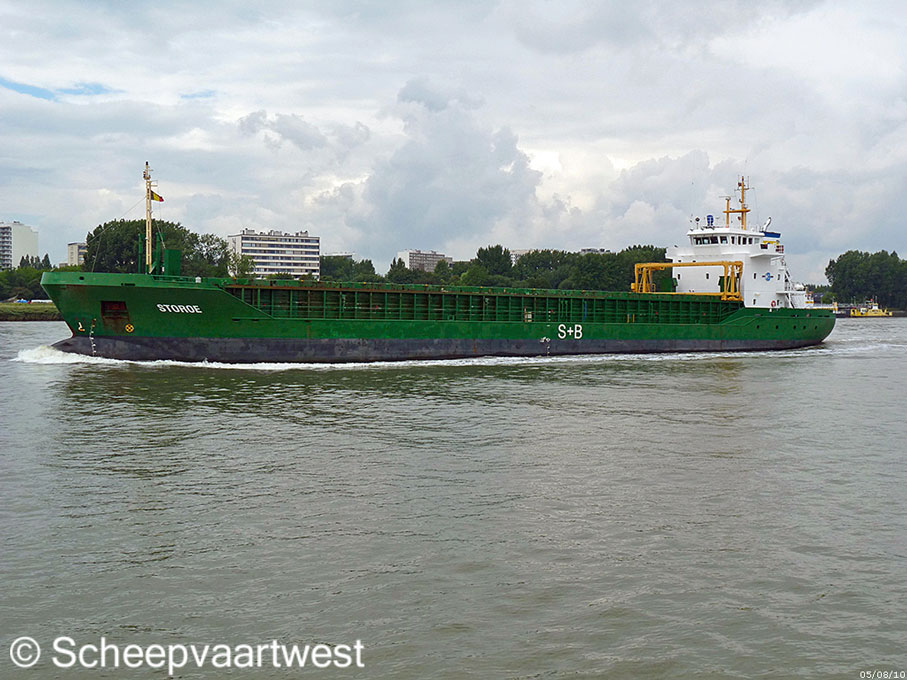

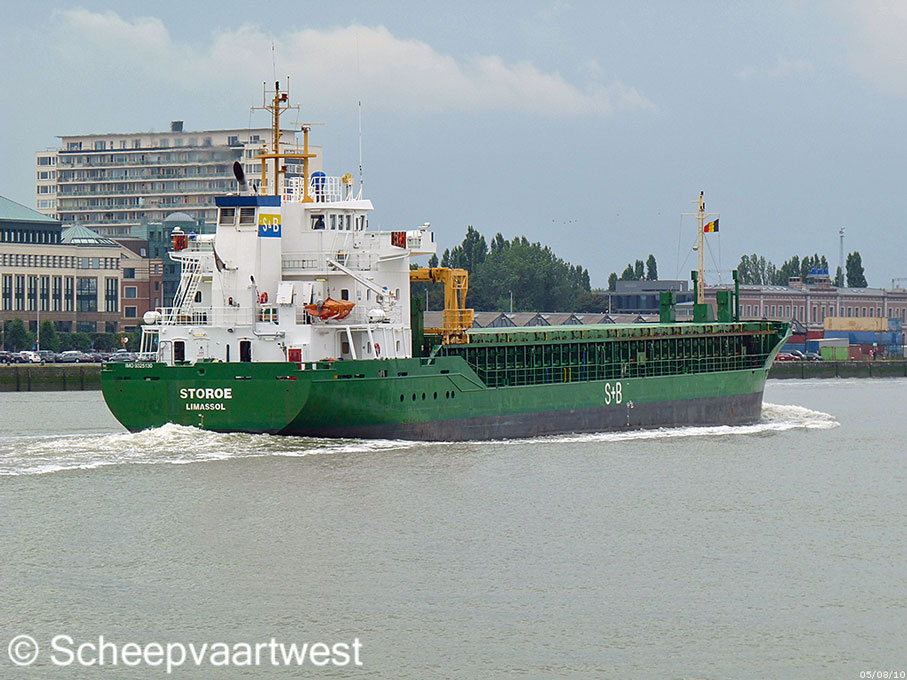

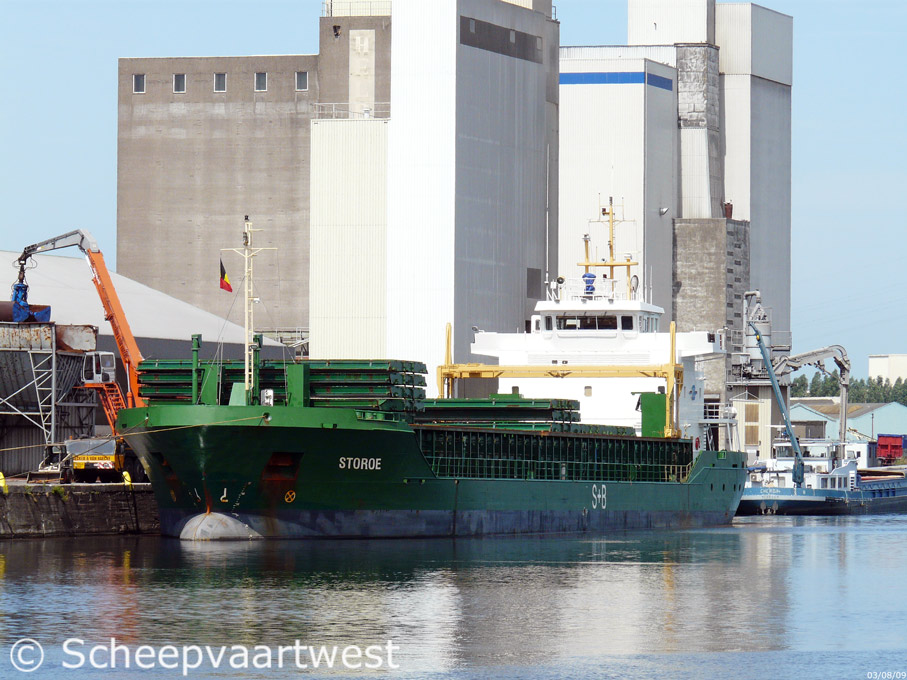

Storoe 07   Storoe 11   Storoe 02
Antwerpen 05/08/10 Antwerpen 05/08/10 Brugge 03/08/09



Name

STOROE

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers, strengthened for heavy cargo

IMO-number

9325130

Call sign

P3YL9

Flag

Cyprus

Previous flag

29.11.2004 Antigua & Barbuda

Port of registry

Limassol

GT

3.183 t

DWT

Summer: 4.508 t

NT

1.765 t

Number of 20ft containers

218

Length

89,95 m overall

84,98 m between perpendiculars

85,19 m registered

Breadth

15,20 m overall

Draught

Summer: 5,25 m

Bridge

51,75 m

Forecastle

8,37 m

Quarterdeck

15,00 m

Freeboard

1.358 mm

Depth

6,90 m moulded

Speed

12,0 knots

Built

2004

Keel laid

13.06.2002

Launch date

14.07.2004

Date of completion

25.11.2004

First movement

30.11.2004

Builder casco

Severnav
Drobeta-T.S.
Romania

Builder completed

Bodewes Shipyards B.V.
Werfkade 22
9601 LG Hoogezand
The Netherlands

Yard number

633

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Partly double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x Caterpillar 6 M 25 - 4 stroke single acting 6 cylinder 255 x 400 mm diesel engine - 1.850 kW

Year of manufacture: 2004

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft

Boiler

Water heater, oil fired - 5,0 bar
Heating surface: 7,0 m²
Year of manufacture: 2003

Manufacturer: Carbofuel Officine Meccaniche S.p.A.
Via delle Brughiere angolo Via Sicilia
20020 Bienate di Magnago (Milano)
Italy

Electric installations

1x 400/220 V - 175 kVA

1x 400 V - 435 kVA

1x 400 V - 175 kVA

Shaft generator

1x 435 kVA

Generator

1x Main diesel generatorset 175 kVA

Emergency generator

1x Diesel generatorset 175 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 300 kW, forward

Anchor equipment

3x Anchors weight each 2.280 kg

Chain length: 467,50 m

Crew size

8

Crew

8

Manager

Hermann Buss GmbH & Cie KG
Hafenstr. 2
26789 Leer
Federal Republic of Germany

Operator

S&B - Schulte & Bruns GmbH & Co. KG

Owner

Rodulino Shipping Co., Ltd.
c/o Medstar Shipmanagement Ltd.
13, Alexandrias Street
3013 Limassol
Republic of Cyprus

Owner as Completed

Rodulino Sg Co Ltd.
Limassol
Cyprus
