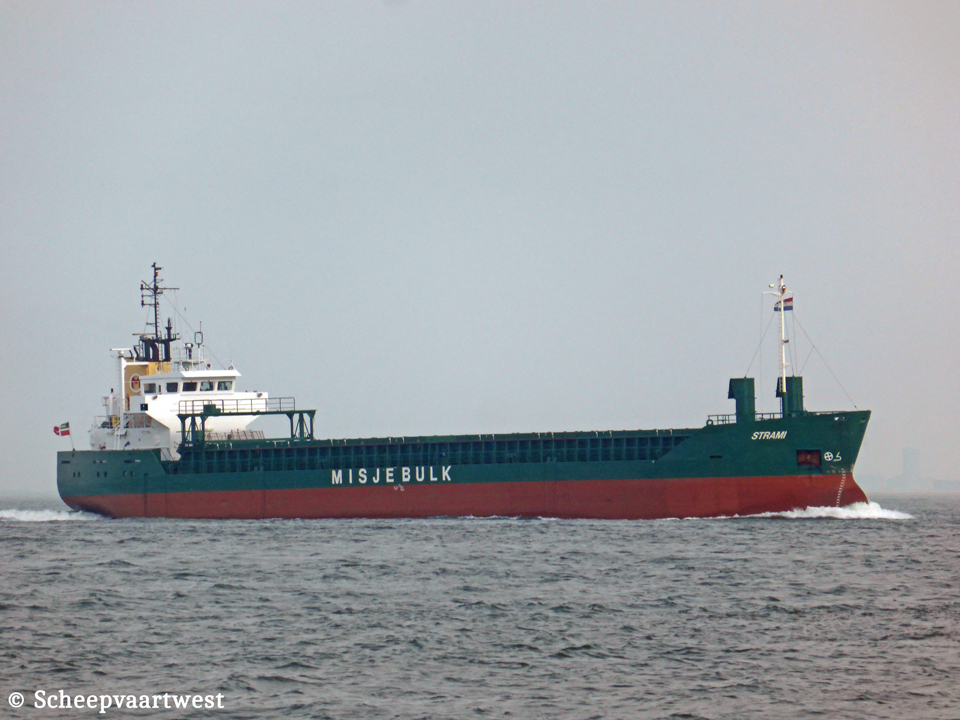

| Westerschelde 20 August 2015 |
|
Name |
STRAMI |
|
Previous names |
1992 - 06/1997 MB Avon 06/1997 - 01/2005 Arklow Fame |
|
Type |
General cargo vessel - Equipped for carriage of containers |
|
IMO-number |
8922254 |
|
Call sign |
C6UN9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
06/1992 - 07/1992 Antigua and Barbuda, St. John’s 07/1992 - 2005 Liberia, Monrovia |
|
GT |
2.273 t |
|
DWT |
4.245 t |
|
DWCC |
Summer: 4.220 t Winter: 4.100 t |
|
NT |
1.434 t |
|
Displacement |
5.290 t |
|
Number of 20ft containers |
96 |
|
Length |
88,30 m overall 84,90 m between perpendiculars |
|
Breadth |
13,20 m extreme |
|
Draught |
Summer: 5,46 m Winter: 5,35 m Ballast: 3,50 m |
|
Air draft |
24,50m |
|
Depth |
7,00 m moulded |
|
Speed |
12,0 knots |
|
Built |
1992 |
|
Keel laid |
18/03/1991 |
|
Launch date |
17/06/1992 |
|
Date of completion |
01/07/1992 |
|
Builder |
Scheepswerf Ferus Smit B.V. Hoogezand The Netherlands |
|
Yard number |
285 |
|
Hull material |
Steel |
|
Movable bulkheads |
1 - 5 positions |
|
Main engine |
1x Caterpillar 3606 DITA - 4 stroke single acting 6 cylinder 280 x 300 mm combustion engine 1.499 kW / 2.175 bhp Builder: Caterpillar Inc, Peoria, Illinois - USA |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
1x Caterpillar 3306 DIT diesel generatorset 1x Caterpillar 3304 DINA diesel generatorset |
|
Number of holds |
1x Box shaped 61,60 x11,56 x 7,90 m |
|
Cargo hold capacity |
5.222 m³ / 184.413 ft³ |
|
Hold ventilation |
6x Air changes/hour |
|
Number of hatches |
2 Hatch 1: 26,00 x 10,20 m Hatch 2: 26,00 x 10,20 m |
|
Hatch type |
Coops en Nieborg pontoon system |
|
Max permitted loads |
Tanktop: 10,0 t/m² Hatch cover: 1,62 t/m² |
|
Tank capacities |
Ballast: 1.528,83 m³ Bunker capacity: 176,4 m³ Fresh water: 28,1 m³ Lub oil: 6,2 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 32 mm |
|
Crew size |
6 |
|
Manager |
Misje Rederi AS C. Sundts gate 39 5004 Bergen Norway |
|
Registered owner |
Misje Bulk AS Care of Misje Rederi AS Bergen Norway |
|
Previous names & owners |
1992 - 06/1997 MB Avon - C.F.Ahrenkiel, Castletown, - Isle of Man 06/1997 - 01/2005 Arklow Fame - Arklow Sg |
|
Latest data adjustment |
07 May 2023 |
