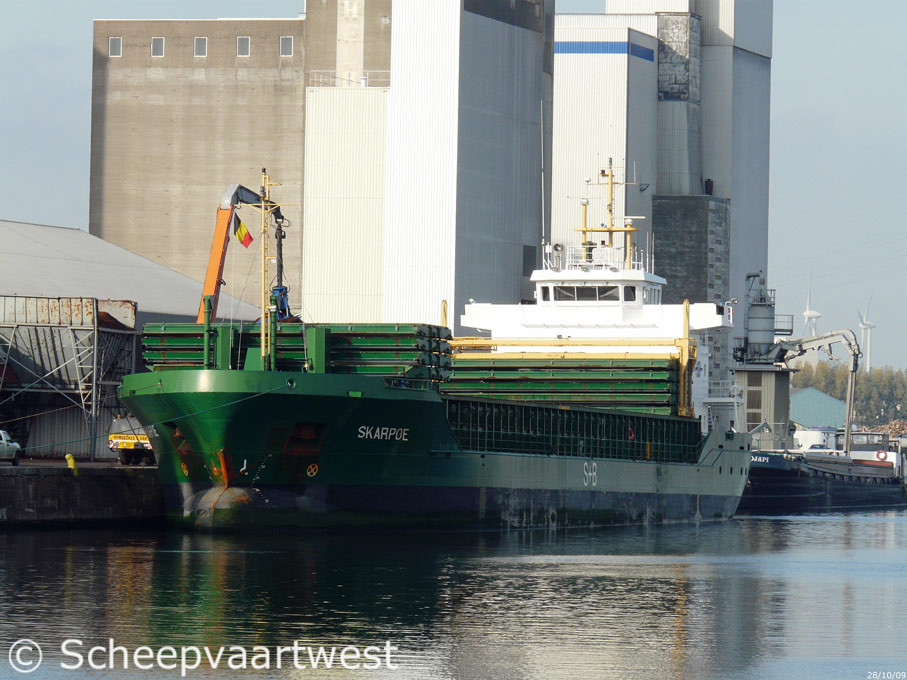

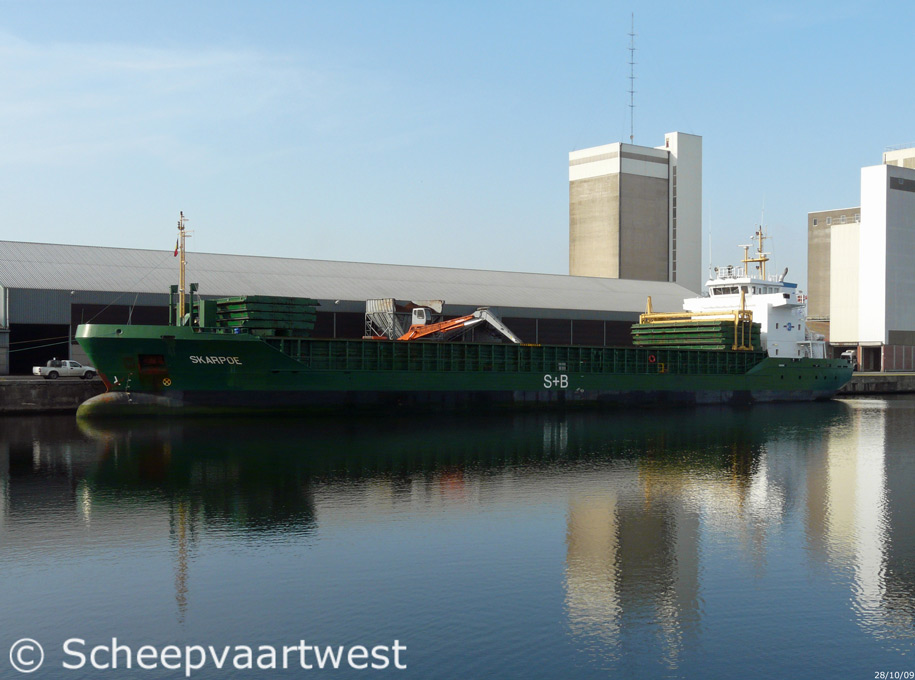

| Brugge, Belgium 28 October 2009 |
 |
| Brugge 28/10/09 |
|
Name |
SKARPOE |
|
Type |
Multi-purpose dry cargo ship - Single-decker Equipped for carriage of containers, Strengthened for heavy cargo |
|
IMO-number |
9325142 |
|
Call sign |
C4BY2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
3.183 t |
|
DWT |
4.508 t |
|
DWCC |
Summer: 4.300 t Winter: 4.100 t |
|
NT |
1.756 t |
|
Number of 20ft containers |
In hold: 126 On deck: 50 Total: 176 |
|
Length |
89,94 m overall 85,00 m between perpendiculars 85,19 m registered |
|
Breadth |
15,20 m |
|
Draught |
Summer: 5,25 m Ballast: 3,80 m |
|
Air draft |
27,70 m in ballast |
|
Forecastle |
8,37 m |
|
Bridge |
51,75 m |
|
Quarterdeck |
15,00 m |
|
Freeboard |
1.358 mm |
|
Depth |
6,90 m moulded |
|
Speed |
12,0 knots |
|
Built |
2005 |
|
Keel laid |
13/06/2002 |
|
Launch date |
06/11/2004 |
|
Date of completion |
26/04/2005 |
|
Builder casco |
Severnav Drobeta-T.S. Romania |
|
Builder completion |
Bodewes Shipyards B.V. Werfkade 22 9601 LG Hoogezand The Netherlands |
|
Yard number |
634 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 Stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.850 kW / 2.515 hp at 750 mm Year of manufacture: 2005 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Number of screws |
1x Controllable pitch propeller - aft at 221 rpm |
|
Boilers |
1x Water heater, oil fired - 5,0 bar Heating surface: 7,0 m² Year of manufacture: 2004 Manufacturer: ACV Nederland B.V. Kaartenmakerstraat 5 2984 CB Ridderkerk The Netherlands |
|
Electric installations |
1x Plant 400/220 V - 175 kVA 1x Plant 400 V - 435 kVA 1x Plant 400 V - 175 kVA |
|
Shaft generator |
1x Leroy Somer type LSA.47.1L10 - 348 kw / 435 kVA at 1.500 rpm |
|
Generators |
1x Sisu Diesel engine type 634 DSBIG diesel engine connected with generatorset 150 kW /175 kVA at 1.000 rpm |
|
Emergency generator |
1x Sisu Diesel engine type 634 DSBIG diesel engine connected with generatorset 150 kW /175 kVA at 1.000 rpm |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x JASTRAM BU 50 transverse thruster - 300 kW, forward |
|
Number of hold |
1 61,50 X 12,65 X 8,42 m |
|
Cargo hold capacity |
Grain: 6.392 m³ |
|
Number of hatches |
1 61,50 X 12,65 m |
|
Hatch cover type |
Pontoon |
|
Tank capacities |
Fuel oil: 216,1 m³ Diesel oil: 39,0 m³ |
|
Anchor equipment |
3x Anchors weight each 2.280 kg Chain length: 467,50 m |
|
Lifting equipment |
1x Gantry crane |
|
Crew size |
10 |
|
Manager |
Hermann Buss GmbH & Cie KG Hafenstr. 2 26789 Leer Federal Republic of Germany |
|
Operator |
S+B / Springwood + Buss |
|
Owner |
Springwood Shipping Co., Ltd. c/o Medstar Shipmanagement Ltd. 13, Alexandrias Street 3013 Limassol Republic of Cyprus |
|
Renamed |
08/2013 Siegfried Lehmann Antigua and Barbuda, St. John’s - Call sign: V2GL5 Manager: Reederei Lehmann GmbH & Co. KG Registered owner: MS "Siegfried Lehmann" Schifffahrts-GmbH & Co. KG |
|
Latest data adjustment |
10 November 2023 |
