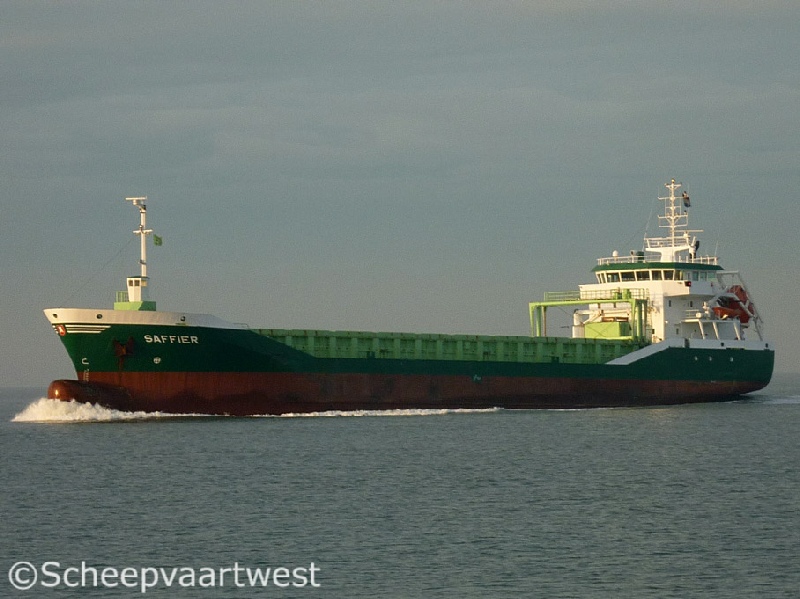

| Westerschelde 05 November 2011 |
 |

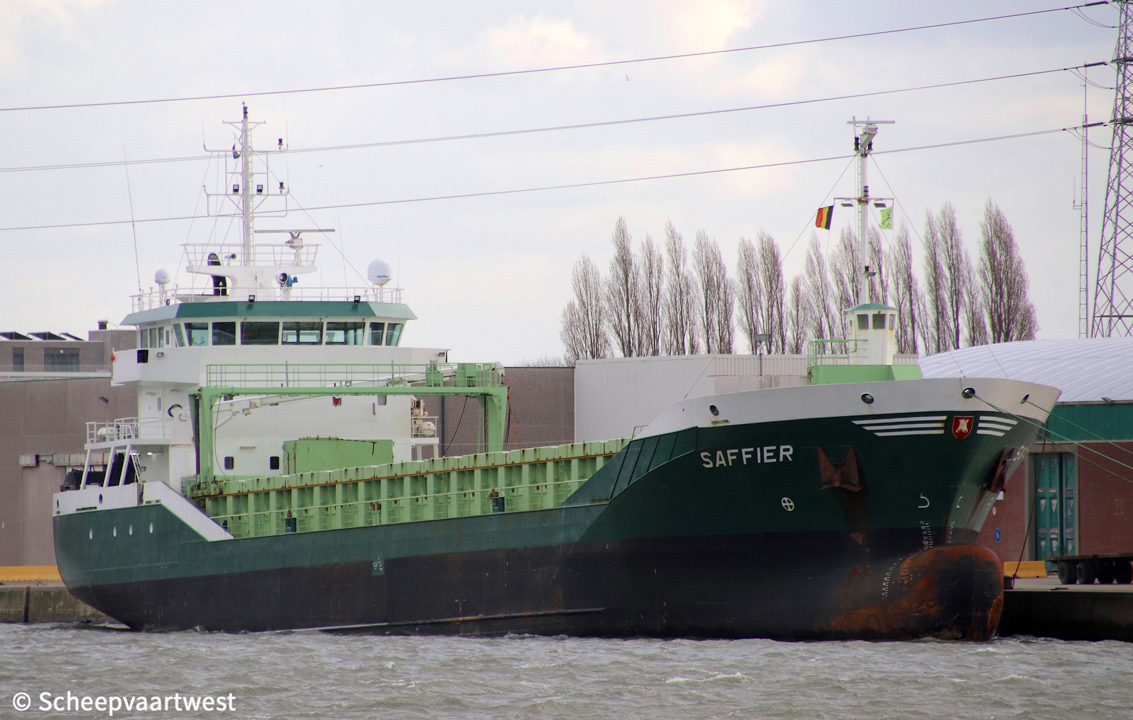

| Antwerpen 11/02/20 |
|
Name |
SAFFIER |
|
Type |
Multi-purpose dry cargo carrier - Heavy cargo - Open hatch, Fully box, Double skinned single decker |
|
IMO-number |
9357511 |
|
Call sign |
PHOM |
|
Flag |
The Netherlands |
|
Port of registry |
Alkmaar |
|
GT |
3.970 t |
|
DWT |
6.059 t |
|
DWCC |
Summer: 5.85 t |
|
NT |
2.066 t |
|
Number of 20ft containers |
In hold: 135 On deck: 75 Total: 210 |
|
Length |
99,99 m overall 94,75 m between perpendiculars |
|
Breadth |
15,20 m moulded 15,37 m overall |
|
Draught |
6,60 m |
|
Air draft |
25,00 m in ballast |
|
Freeboard |
1.564 mm |
|
Depth |
8,35 m |
|
Speed |
Service: 13,5 knots |
|
Built |
2008 |
|
Launch date |
09/02/2008 |
|
Delivery date |
11/04/2008 |
|
Builder |
Scheepswerf & Machinefabriek Barkmeijer Stroobos B.V. Stroobos The Netherlands |
|
Yard number |
315 |
|
Hull material |
Steel |
|
Watertight bulkheads |
5 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Man-B&W 8L27/38 - 4 stroke single acting 8 cylinder 270 x 380 mm combustion engine 2.720 kW / 3.696 hp at 800 rpm Builder: MAN-B&W Diesel AG, Augsburg - Germany |
|
Shaft propeller |
1x 348 kW - 400 Volt |
|
Propeller |
1x Screw propeller controllable pitch at 180 rpm Diameter 3.800 mm |
|
Generators |
2x Sisudiesel 84 CTA-4V main diesel generatorsets each 265 kVA - 212 kW - 340 hp |
|
Bow thruster |
1x Veth tunnel thruster type VT-240 met E-motor 300 kW at 1.500 rpm |
|
Number of holds |
1x Fully box and double skinned (except narrowing fore/ aft. part) 66,00 x 12,80 x 9,17 m |
|
Cargo hold capacity |
7.353 m³ |
|
Number of hatch |
1 66,20 x 13,00 m |
|
Total capacity of holds |
7.514 m³ / 263.000 ft³ |
|
Tank capacities |
Heavy fuel oil: 339 m³ Gas oil: 54 m³ Fresh water: 50 m³ Water ballast: 2.222,5 m³ |
|
Manager |
Bock Maritiem BV Alkmaar The Netherlands |
|
Operator |
Wagenborg Shipping BV Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Registered owner |
C.V. Scheepvaartonderneming Saffier Alkmaar The Netherlands |
|
Latest data adjustment |
19 April 2020 |
